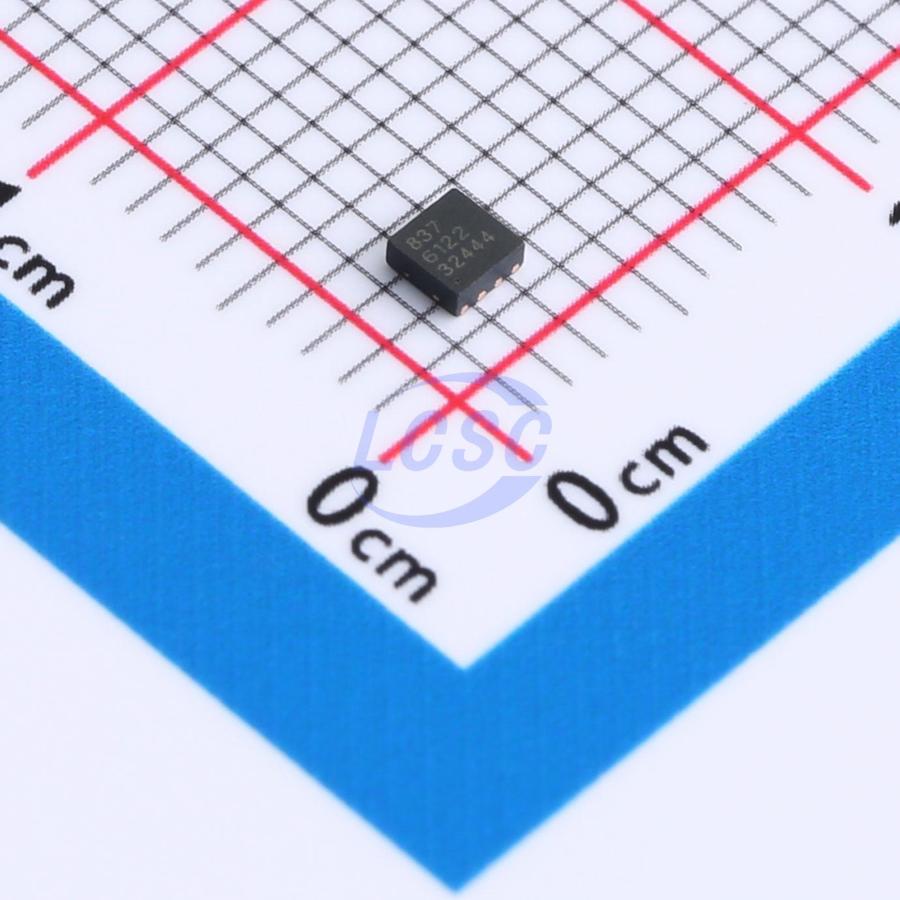

Bardeen Micro.

BDR6122F

1.8V~6V DFN-8(2x2) Motor Drivers, Controllers RoHS

DFN-8(2x2)ROHS CompliantActive

DC motor driver chip

Manufacturer: Bardeen Micro.
Manufacturer part #: BDR6122F
Store part #: C22363591
Package / case: DFN-8(2x2)
Category: Motor Drivers, Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,055 in stock

#C22363591

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹18.44	₹92.20
50+	₹15.93	₹796.50
150+	₹14.86	₹2,229.00
500+	₹13.51	₹6,755.00
2,500+	₹12.91	₹32,275.00
5,000+	₹12.56	₹62,800.00

Quantity (min 5, multiples of 5)

5 × ₹18.44

₹92.20

excl. GST

₹108.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

BDR6122F

₹92.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of H-bridges: 1
Technology: Yes
Voltage - Supply: 1.8V~6V
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 10nA
Output Current: 1.85A
RDS(on): 280mΩ

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.035 g

Overview

BDR6122F is a DC motor driver IC designed for smart locks, smart meters, valves, and similar applications. Output DC current reaches 1.9A. Two supply voltage rails: VM operating range 0~12V, VCC operating range 1.8~6V. Single PWM (IN1-IN2) input, ultra-low output on-resistance, available in SOP8 and DFN8 packages. Integrated overcurrent protection, undervoltage protection, and overtemperature protection.
