BORNDatasheet (PDF)

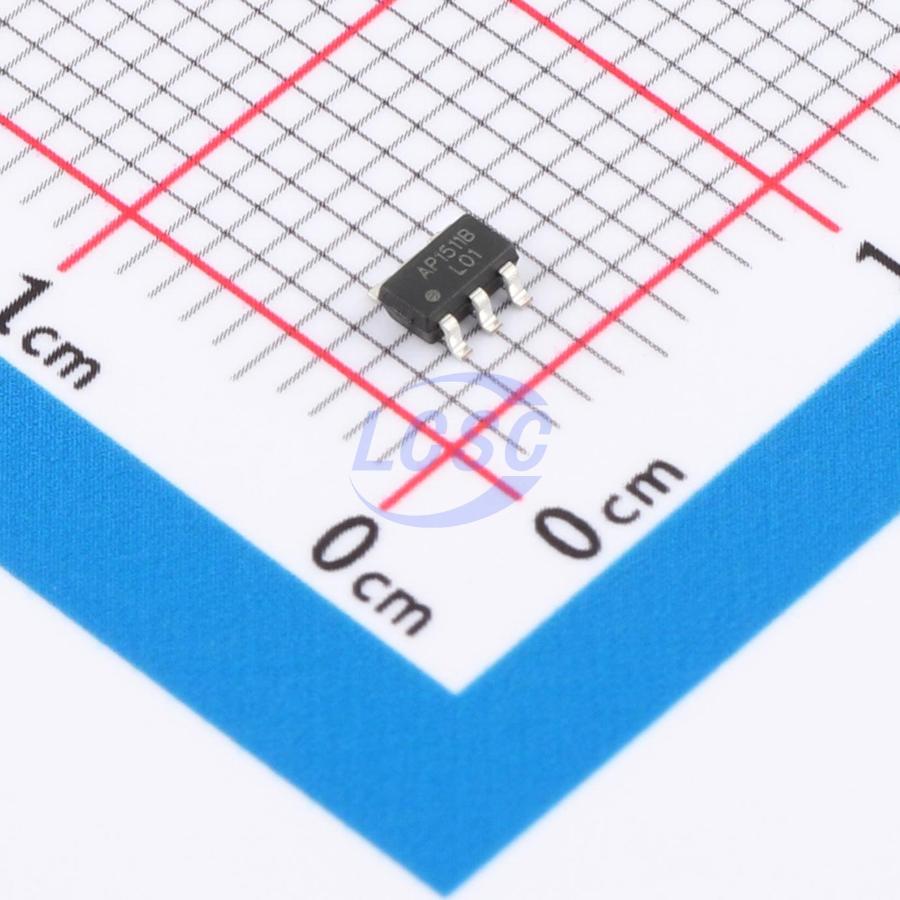

BE1511B
2.5V~5.5V SOT-23-6 Motor Drivers, Controllers RoHS
SOT-23-6ROHS CompliantActive
IR-CUT control circuit
- Manufacturer
- BORN
- Manufacturer part #
- BE1511B
- Store part #
- C41374261
- Package / case
- SOT-23-6
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C41374261
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.35 | ₹71.75 |
| 50+ | ₹11.35 | ₹567.50 |
| 150+ | ₹9.84 | ₹1,476.00 |
| 500+ | ₹8.72 | ₹4,360.00 |
| 3,000+ | ₹7.82 | ₹23,460.00 |
| 6,000+ | ₹7.37 | ₹44,220.00 |
5 × ₹14.35
₹71.75
excl. GST
₹84.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BE1511B
₹71.75 for 5 + GST
Specifications
- Number of H-bridges
- 1
- Technology
- Yes
- Voltage - Supply
- 2.5V~5.5V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 10uA
- Output Current
- 300mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2a
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
BE1511 is a circuit specifically designed for IR-CUT control, primarily used to switch infrared cut filters. The chip integrates a microcontrol circuit and a bidirectional H-bridge driver circuit. The driver circuit requires only a 0.75V internal voltage drop at 300mA drive capability. BE1511B adopts single-wire control mode and provides single-step pulse width control function.
Applications
- IR-CUT
Key features
- Wide supply voltage: 2.5V to 5.5V
- 1.8V input voltage compatible
- Low dropout voltage: 0.75V @ 300mA
- Low standby current: <10μA
- Multiple control modes
- Compact SOT23-6 package
