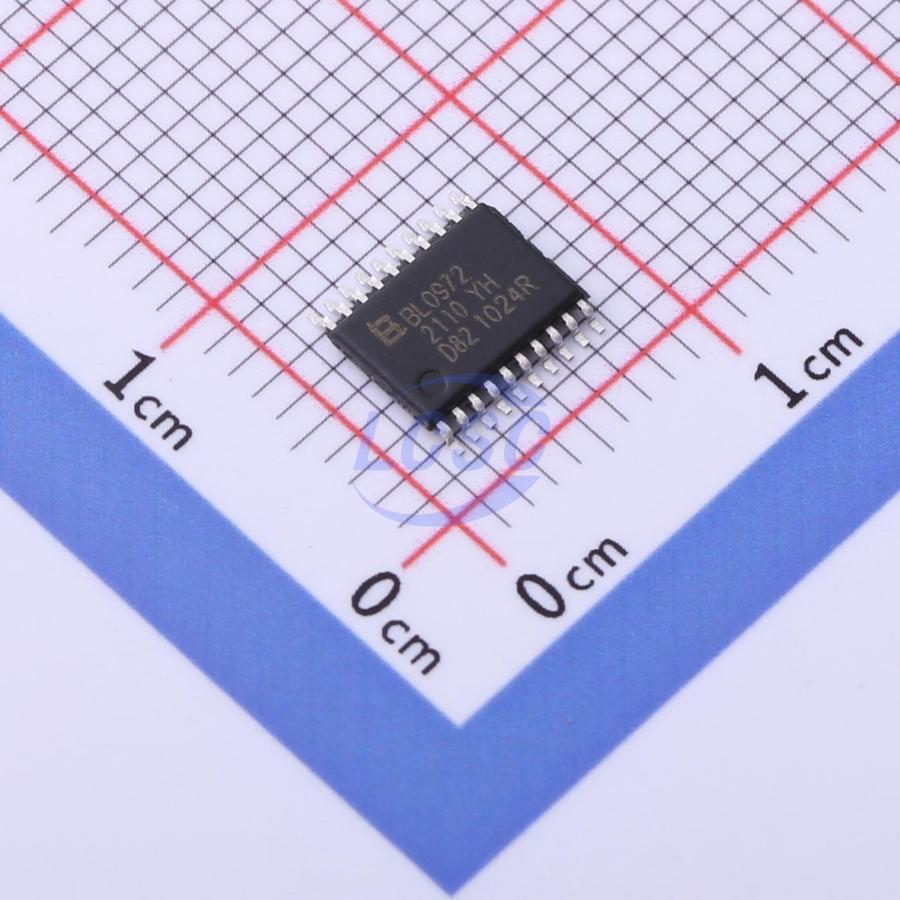

BL0972
3.3V SPI TSSOP-20 Energy Metering
Single Phase AC/DC Energy Metering Chip
- Manufacturer
- BL
- Manufacturer part #
- BL0972
- Store part #
- C2999165
- Package / case
- TSSOP-20
- Category
- Energy Metering
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,466 in stock
#C2999165
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹203.81 | ₹203.81 |
| 10+ | ₹170.85 | ₹1,708.50 |
| 30+ | ₹152.86 | ₹4,585.80 |
| 100+ | ₹129.44 | ₹12,944.00 |
| 500+ | ₹120.55 | ₹60,275.00 |
| 1,000+ | ₹116.44 | ₹1,16,440.00 |
1 × ₹203.81
₹203.81
excl. GST
₹240.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BL0972
₹203.81 for 1 + GST
Specifications
- Voltage Reference Value
- 1.097V
- Voltage - Supply
- 3.3V
- Function
- Programmable gain;Pulse output;Fault detection;Energy accumulation engine
- Number of Channels
- 2
- Interface
- SPI
- Meter Type
- Single-Phase Energy Metering IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
BL0972 is a clock-built-in, calibration-free energy metering IC, suitable for applications requiring metering such as e-bike charging stations, PDUs, circuit breakers, and 4~20mA analog acquisition. It integrates two high-precision Sigma-Delta ADCs capable of simultaneously measuring 2 channels of signals (current or voltage). It can measure parameters including RMS current, RMS voltage, active power, and active energy, with support for fast RMS current output (for fault detection such as overvoltage and overcurrent), waveform output, and other functions. Data is output via a high-speed SPI interface.
Applications
- E-bike charging stations
- PDU
- Circuit breakers
- 4~20mA analog signal acquisition
