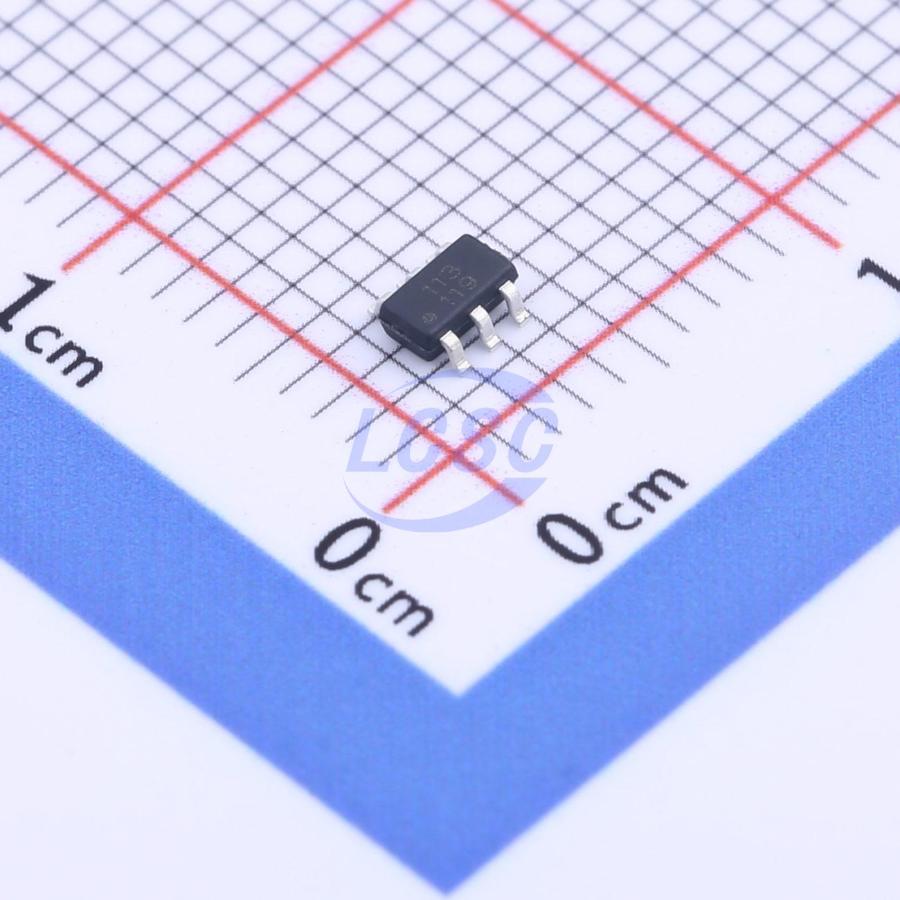

BL113
2.1V~6.8V SOT-23-6L Motor Drivers, Controllers
- Manufacturer
- BL
- Manufacturer part #
- BL113
- Store part #
- C2932502
- Package / case
- SOT-23-6L
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,680 in stock
#C2932502
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.43 | ₹82.15 |
| 50+ | ₹13.56 | ₹678.00 |
| 150+ | ₹12.13 | ₹1,819.50 |
| 500+ | ₹11.05 | ₹5,525.00 |
| 3,000+ | ₹9.90 | ₹29,700.00 |
| 6,000+ | ₹9.46 | ₹56,760.00 |
5 × ₹16.43
₹82.15
excl. GST
₹96.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL113
₹82.15 for 5 + GST
Specifications
- Features
- Active braking function
- Technology
- Yes
- Voltage - Supply
- 2.1V~6.8V
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 100nA
- Output Current
- 1A
- Peak Current
- 1.5A
- RDS(on)
- 700mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
BL113 is a low-voltage DC motor driver IC designed specifically for low-voltage operating systems. It integrates 4 low-resistance MOSFETs and supports forward, reverse, brake, and stop functions. BL113 features protection circuitry: when an output short circuit occurs, the output current rises instantaneously, causing a sharp increase in power dissipation and a rapid rise in chip temperature. Once the chip temperature exceeds the maximum threshold set by the internal thermal protection circuit, the internal circuitry shuts down the built-in power switches to cut off the load current.
Applications
- Low-voltage DC motor driver
Key features
- Operating voltage range: 2.1 - 6.8V
- Low operating current (typ. 65uA)
- Low standby current (typ. 0.1uA)
- Continuous operating current 1.0A, peak current 1.5A
- Package SOT23-6
