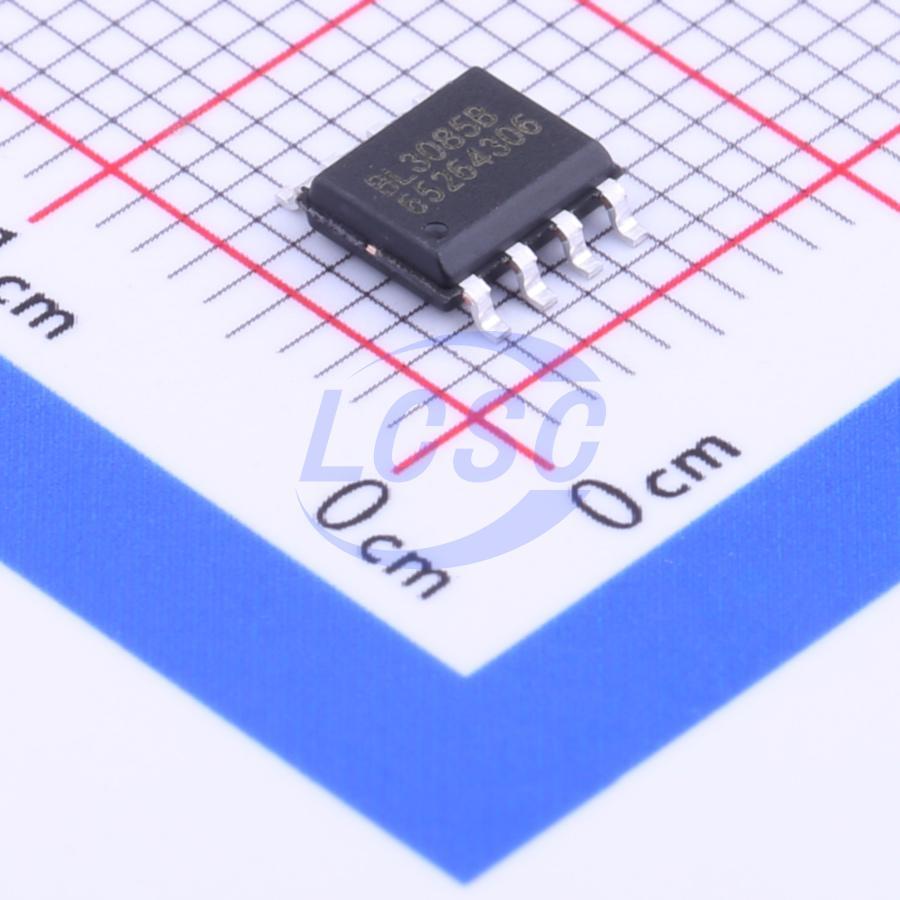

BL3085B

4.5V~5.5V Transceiver 250Kbps 256 SOIC-8 Drivers, Receivers, Transceivers

SOIC-8RoHSSold out at source

High ESD-Protected, Fail-Safe, Slew-Rate-Limited RS-485 Transceivers

Manufacturer: BL
Manufacturer part #: BL3085B
Store part #: C110791
Package / case: SOIC-8
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,735 in stock

#C110791

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹24.59	₹122.95
50+	₹19.83	₹991.50
150+	₹17.78	₹2,667.00
500+	₹15.24	₹7,620.00
2,500+	₹13.34	₹33,350.00
5,000+	₹12.65	₹63,250.00

Quantity (min 5, multiples of 5)

5 × ₹24.59

₹122.95

excl. GST

₹145.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

BL3085B

₹122.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 4.5V~5.5V
Type: Transceiver
Data Rate: 250Kbps
Operating Temperature: -40℃~+85℃
Number of Nodes: 256
ESD Protect: ±18kV
Communication Mode: Half-Duplex
Number of Drivers: 1
Features: Tx/Rx enable;Enable shutdown
Number of Receivers: 1
Quiescent Supply Current: 150uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Sold out at source
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.21 g

Overview

The BL3085B is a half- duplex RS- 485 transceiver with ±18kV IEC 61000- 4- 2 contact discharge protection. The BL3085B contains one driver and one receiver. The device features fail- safe circuitry, which guarantees a logic- high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be logic high even if all transmitters on a terminated bus are disabled. The BL3085B features reduced slew- rate driver that minimizes EMI and reduces reflections caused by improperly terminated cables, allowing error- free data transmission up to 250kbps. The BL3085B has a 1/8 unit load receiver input impedance that allows up to 256 transceivers on the bus.
