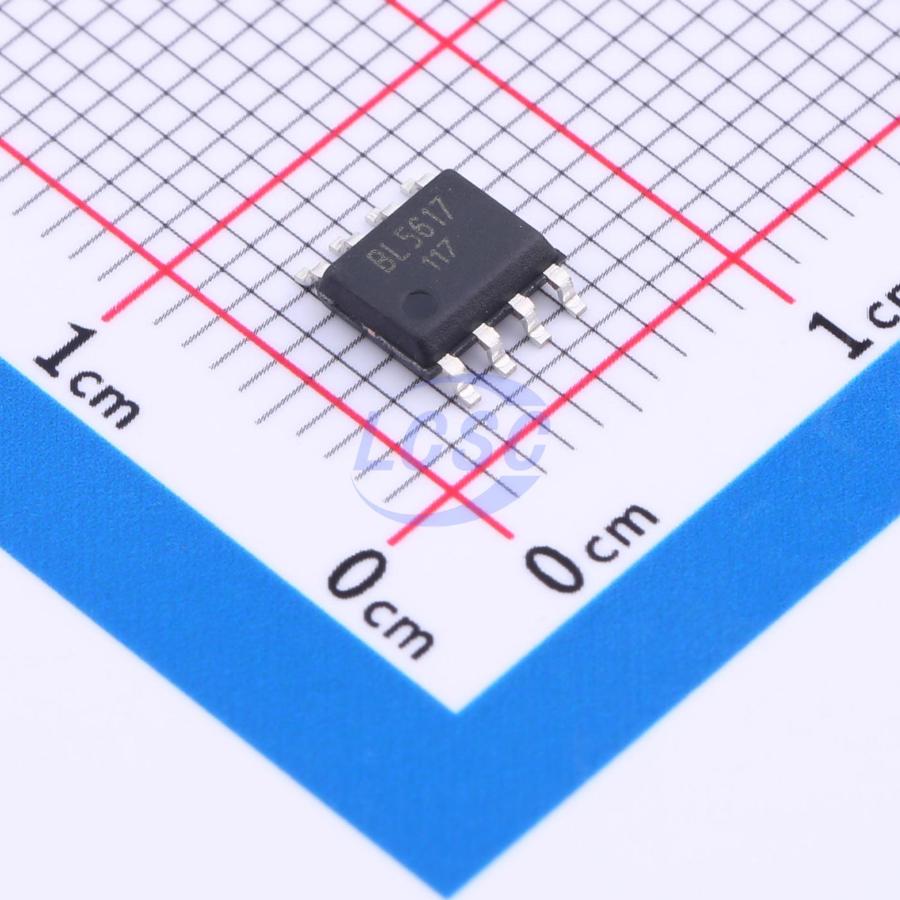

BL5617
SOP-8 Motor Drivers, Controllers
Single-channel H-bridge motor driver IC
- Manufacturer
- BL
- Manufacturer part #
- BL5617
- Store part #
- C2841020
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,595 in stock
#C2841020
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.87 | ₹264.35 |
| 50+ | ₹42.06 | ₹2,103.00 |
| 150+ | ₹37.43 | ₹5,614.50 |
| 500+ | ₹31.63 | ₹15,815.00 |
| 2,500+ | ₹29.07 | ₹72,675.00 |
| 4,000+ | ₹27.52 | ₹1,10,080.00 |
5 × ₹52.87
₹264.35
excl. GST
₹311.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BL5617
₹264.35 for 5 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Current sensing/regulation function;Active braking function
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 10uA
- Output Current
- 3A
- Peak Current
- 5A
- RDS(on)
- 200mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
The BL5617 is one channel H-Bridge driver IC, it provides integrated motor-driver solution for toys, robotics, consumer products and other low voltage or battery-powered motion control applications. The BL5617 maximum operational voltage is 25.0V. It can supply up to 3.0A of output continuous current and 5.0A of output peak current. There is internal shutdown function for over-temperature protection and over-current protection (Iocp = 5.0 A). Package material is Pb-Free Product & RoHS compliant for the purpose of environmental protection and for sustainable development of the earth.
Applications
- Robotics (R/C servo, Sweeping robot)
- Toys (R/C car, R/C aircraft)
- Any relevant DC motor applications
Key features
- Operation voltage range up to 25.0V
- Maximum continuous current output up to 3.0A
- Low RDS(ON) for highly efficient H-bridge output
- Support PWM control
- Over current protection
- Over temperature protection
- Low standby current
- Low quiescent current
- SOP8 package
