BLDatasheet (PDF)

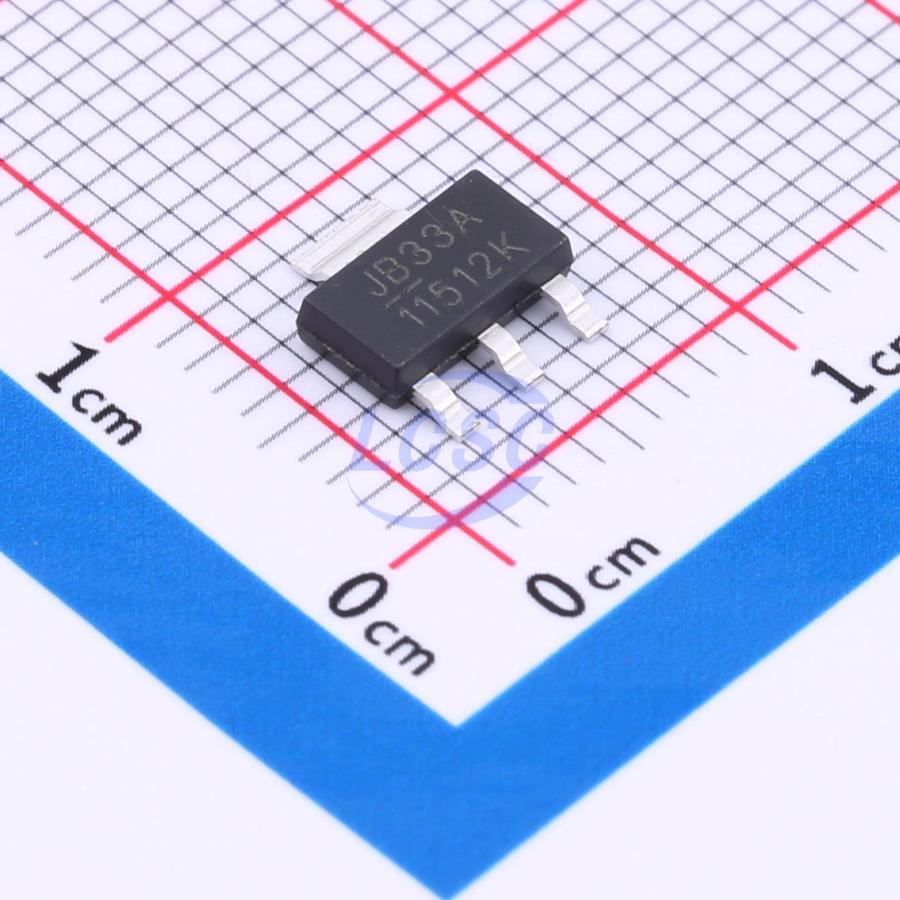

BL8071GCLATR33
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
1.5A linear voltage regulator
- Manufacturer
- BL
- Manufacturer part #
- BL8071GCLATR33
- Store part #
- C5174711
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,050 in stock
#C5174711
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.73 | ₹103.65 |
| 50+ | ₹16.92 | ₹846.00 |
| 150+ | ₹15.02 | ₹2,253.00 |
| 500+ | ₹13.59 | ₹6,795.00 |
| 2,500+ | ₹11.96 | ₹29,900.00 |
| 5,000+ | ₹11.39 | ₹56,950.00 |
5 × ₹20.73
₹103.65
excl. GST
₹122.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BL8071GCLATR33
₹103.65 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 150uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 1.5A
- Output Type
- Fixed
- Features
- Thermal shutdown;Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.29 g
Overview
BL8071G series are a group of positive voltage output, high precise, and low power consumption voltage regulator. Voltages are selectable in 100mV steps within a range of 1.2V to 5.0V. It also can be customized on command. BL8071G series have excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. BL8071G series are available in SOT - 223, TO - 252 packages, which are lead (Pb) - free.
Applications
- Reference voltage source
- Battery powered equipment
- PC peripherals
- Wireless devices
- Instrumentation
Key features
- Low quiescent current: 100uA (Typ.)
- Low dropout voltage: 50mV@Iout = 0.1A, Vout = 3.3V (Typ.), 600mV@Iout = 1.5A, Vout = 3.3V (Typ.)
- High PSRR: 65dB@1KHz (Typ.)
- Low temperature coefficient: ±100ppm/°C
- Output voltage range: 1.2V ~ 5.0V
- Highly accurate: ±2%
- Thermal shutdown
- Overcurrent protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BL8071GCLBTR33#C49256292BL · SOT-223 | BL | SOT-223 | 2,490 | ₹19.65 · 2,490 in stock | View | |
 | BL8072CLTR33#C843780BL · SOT-223-3 | BL | SOT-223-3 | 9,110 | ₹29.08 · 9,110 in stock | View |
