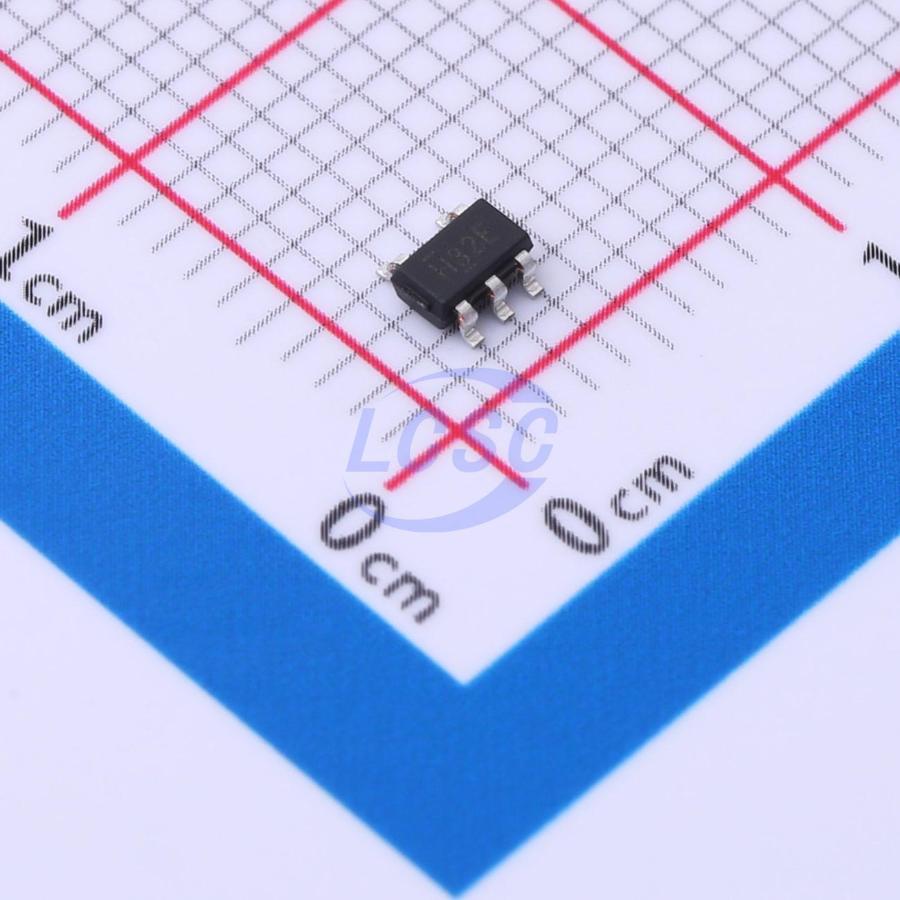

BL8568GCB5ATR33

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

500mA High PSRR, Linear Regulator, w. Output Discharge

Manufacturer: BL
Manufacturer part #: BL8568GCB5ATR33
Store part #: C5118079
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,080 in stock

#C5118079

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.88	₹88.80
100+	₹7.17	₹717.00
300+	₹6.32	₹1,896.00
3,000+	₹5.68	₹17,040.00
6,000+	₹5.17	₹31,020.00
9,000+	₹4.91	₹44,190.00

Quantity (min 10, multiples of 10)

10 × ₹8.88

₹88.80

excl. GST

₹104.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BL8568GCB5ATR33

₹88.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 80uA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 6V
Output Type: Fixed
Features: Enable control;Output discharge;Over Current Protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.042 g

Overview

BL8568G series is a group of positive voltage output, low power consumption, low dropout voltage regulator. BL8568G can provide output value in the range of 0.9V~4.5V every 0.1V step. It also can be customized on command. BL8568G can also work under a wide input voltage ranging from 2.0V to 6V.

Applications

Power source for cellular phones and various kind of PCSs
Battery Powered equipment
Power Management of MP3, PDA, DSC, Mouse, PS2 Games
Voltage Reference Regulation after Switching Power

Key features

BL8568G includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module.
BL8568G has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%.
BL8568G is available in SOT-23-3, SOT-23-5, SC-70-5, DFN1x1-4 and DFN1.2x1.6-4 packages which is lead free.
Output voltage range: 0.9V~4.5V (customized on command every 0.1V step)
Low power consumption: 80μA (Typ.)
Shutdown mode: 0.1μA
Low dropout voltage: 65mV@100mA
High ripple rejection: 70dB@1KHz (Typ.)
Low temperature coefficient: ±100ppm/°C
Excellent line regulation: 0.05%/V
Build-in chip enable and discharge circuit
Highly accurate: ±2% Output current limit
