JST

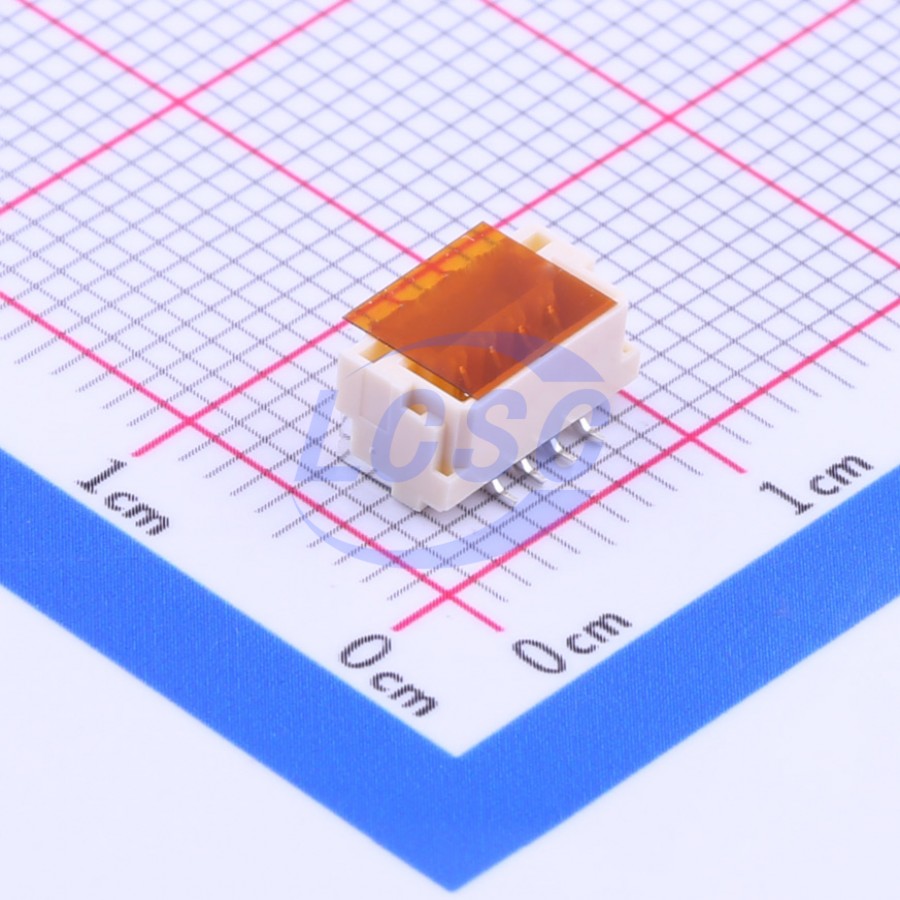

BM04B-GHS-TBT(LF)(SN)

Connector Header 4 position 1.25mm Pitch 1A Surface Mount,Vertical -25℃~+85℃

PopularSMD,P=1.25mmROHS CompliantActive

CONN HEADER SMD 4POS 1.25mm

Manufacturer: JST
Manufacturer part #: BM04B-GHS-TBT(LF)(SN)
Store part #: C161692
Package / case: SMD,P=1.25mm
Category: Headers, Male Pins
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,880 in stock

#C161692

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹52.42	₹262.10
50+	₹45.43	₹2,271.50
150+	₹42.02	₹6,303.00
500+	₹38.98	₹19,490.00
2,500+	₹38.13	₹95,325.00
5,000+	₹37.63	₹1,88,150.00

Quantity (min 5, multiples of 5)

5 × ₹52.42

₹262.10

excl. GST

₹309.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

BM04B-GHS-TBT(LF)(SN)

₹262.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Connector Type: Surface Mount,Vertical
Reference Series: GH
Voltage Rating (Max): 50V
Contact Material: Phosphor bronze
Number of PINs Per Row: 4
Number of Rows: 1
Pitch: 1.25mm
Current Rating: 1A
Flame Retardant Rating: UL94V-0
Supplementary Features: Auxiliary Solder Pin
Operating Temperature: -25℃~+85℃
Contact Plating: Tin
Number of PINs: 4P
Plastic Material: PA9T
Color: White
X-Length of Bottom Edge on Board (Spacing Line): 8.25mm
Pin Structure: 1x4P

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.17 g

Overview

The GH Series is a 1.25mm pitch wire-to-board connector featuring a reliable locking mechanism. Designed for internal wiring of various electrical and electronic equipment, it meets the demands of high-density applications. Low-insertion-force contacts facilitate mating, while an audible and tactile click provides highly reliable connections.

Key features

Reliable locking mechanism
Excellent mating performance
Large external latch for secure locking
Structural design prevents contact deformation
Housing design prevents incorrect mating

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
HDGC1257WV-S-4P#C3041129HDGC · SMD,P=1.25mm	HDGC	SMD,P=1.25mm	1,280	₹21.72 · 1,280 in stock	View
LAIL-PHC1.25-4P-01-GH-LT#C54905884LAILAN · SMD,P=1.25mm	LAILAN	SMD,P=1.25mm	59,925	₹25.23 · 59,925 in stock	View
GH125-S04CCA-00#C2886782JUSHUO · SMD,P=1.25mm	JUSHUO	SMD,P=1.25mm	20,875	₹13.03 · 20,875 in stock	View
GH1.25-4PLTPZ#C2829262BOOMELE(Boom Precision Elec) · SMD,P=1.25mm	BOOMELE(Boom Precision Elec)	SMD,P=1.25mm	35,380	₹10.90 · 35,380 in stock	View
GH1.25-4PLT#C52037397XUNPU · SMD,P=1.25mm	XUNPU	SMD,P=1.25mm	3,335	₹15.04 · 3,335 in stock	View
