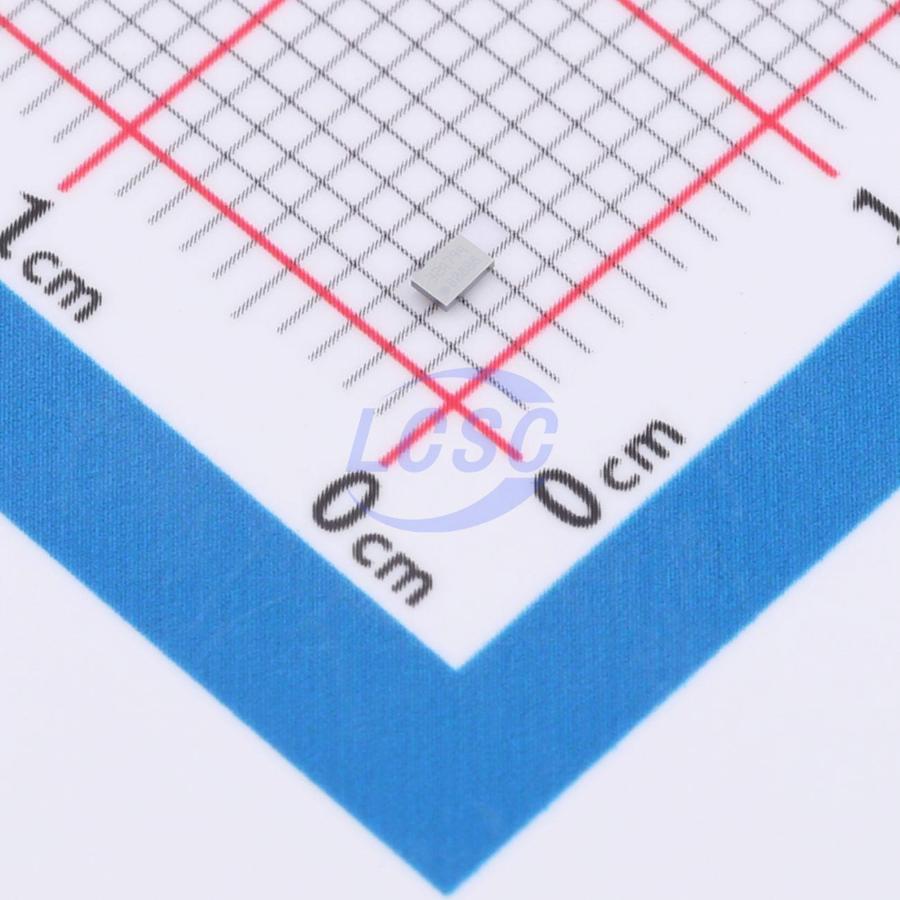

BQ21080YBGR

2.7V~5.5V 1 800mA DSBGA-8(1.6x1.1) Battery Chargers RoHS

DSBGA-8(1.6x1.1)ROHS3 CompliantActive

I2C Controlled, 1-Cell, Linear Battery Charger with Power Path and Ship Mode

Manufacturer: TI
Manufacturer part #: BQ21080YBGR
Store part #: C6869615
Package / case: DSBGA-8(1.6x1.1)
Category: Battery Chargers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,446 in stock

#C6869615

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹258.29	₹258.29
10+	₹216.76	₹2,167.60
30+	₹190.67	₹5,720.10
100+	₹163.93	₹16,393.00
500+	₹151.97	₹75,985.00
1,000+	₹146.76	₹1,46,760.00

Quantity (min 1)

1 × ₹258.29

₹258.29

excl. GST

₹304.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BQ21080YBGR

₹258.29 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Interface: I2C
Voltage - Supply: 2.7V~5.5V
Quiescent Current: 2mA
Battery Temperature Detection: Support
0V Battery Charge: Not supported
Operating Temperature: -40℃~+125℃
Type of Battery: Lithium Battery;LiFePO4 Battery
The Chip Type: Charging IC
Number of Cells: 1
Charge Current - Max: 800mA
Charging Saturation Voltage: 4.65V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.175 g

Overview

The BQ21080 is a linear battery charger IC focusing on small solution size and low quiescent current for extending battery life. The device is available in an 8-ball chipscale package which does not need HDI PCB process for fabrication thereby reducing the PCB cost. The device can support up to 800-mA charging and system loads of up to 2.5 A. The battery is charged using a standard Li-ion or LiFePO4 charge profile with three phases: precharge, constant current and constant voltage. Thermal regulation provides the maximum charge current while managing the device temperature. The charger is also optimized for battery to battery charging with 3-V minimum input voltage operation and can withstand 25-V absolute maximum line transients. The device integrates a single push-button input and reset circuitry to reduce the total solution footprint.

Applications

TWS headset and charging case
Smart glasses, AR and VR
Smart watches and other wearable devices
Retail automation and payment
Building automation

Key features

800-mA Power path linear battery charger
3.0-V to 5.9-V input voltage operating range optimized for battery to battery charging and USB adapter
25-V tolerant input voltage
Configurable battery regulation voltage with 0.5% accuracy from 3.6 V to 4.65 V in 10-mV steps
5-mA to 800-mA configurable fast charge current
55-mΩ battery FET ON resistance
Up to 2.5-A discharge current to support high system loads
Configurable termination current down to 0.5 mA
Configurable NTC charging profile thresholds including JEITA support
Power cycle and advanced reset mechanisms to recover system
Power path management for powering the system and charging the battery
Regulated system voltage (SYS) ranging from 4.4 V to 4.9 V in addition to battery voltage tracking and input pass-though options
Configurable input current limit
Selectable adapter or battery power for system
Dynamic power path management optimizes charging from weak adapters
30-nA Shutdown mode
3.2-μA Ship mode with button press wake
4 μA in Battery Only mode
45-μA input adapter Iq in Sleep mode
One push-button wake-up and reset input
