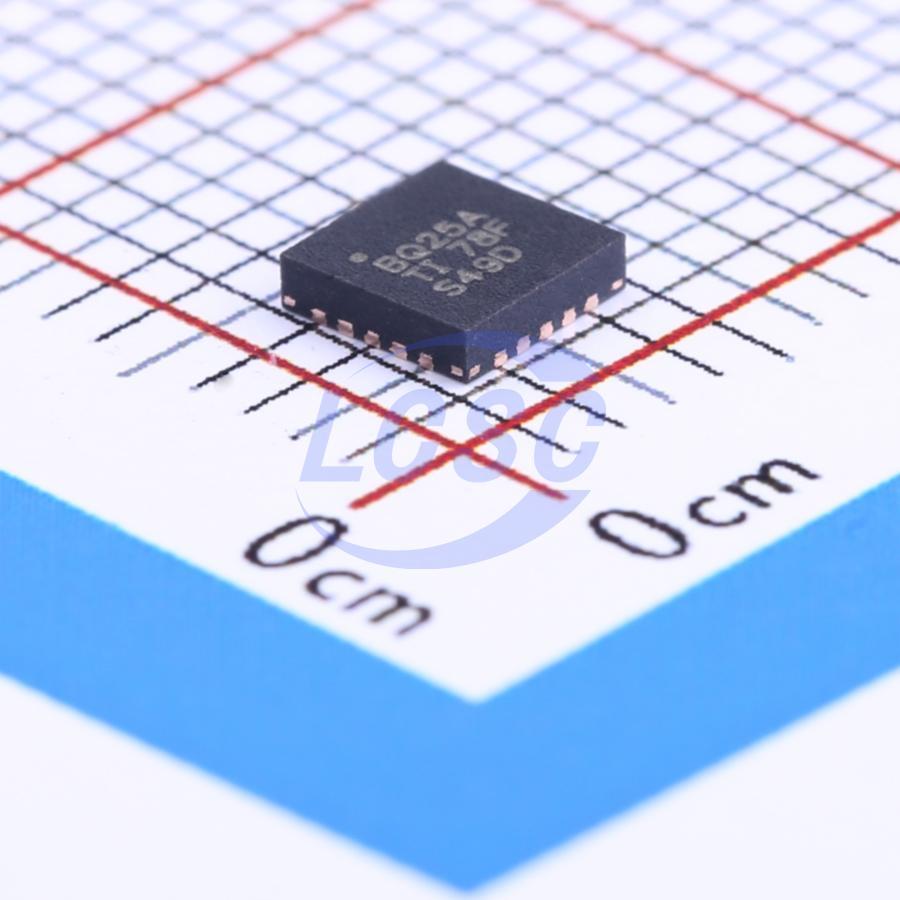

BQ24725ARGRR

4.5V~24V VQFN-20-EP(3.5x3.5) Battery Chargers RoHS

VQFN-20-EP(3.5x3.5)ROHS3 CompliantActive

Li+ Battery SMBus Charge Controller with N-Channel Power MOSFET Selector and Advanced Circuit Protection

Manufacturer: TI
Manufacturer part #: BQ24725ARGRR
Store part #: C97041
Package / case: VQFN-20-EP(3.5x3.5)
Category: Battery Chargers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,372 in stock

#C97041

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹250.56	₹250.56
10+	₹235.55	₹2,355.50
30+	₹226.18	₹6,785.40
100+	₹133.66	₹13,366.00
500+	₹129.31	₹64,655.00
1,000+	₹127.35	₹1,27,350.00

Quantity (min 1)

1 × ₹250.56

₹250.56

excl. GST

₹295.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BQ24725ARGRR

₹250.56 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.024V~19.2V
Features: Adaptive switching frequency;Soft-start;Overcurrent Protection;Digital control
Voltage - Supply: 4.5V~24V
Quiescent Current: 800uA
Operating Temperature: 0℃~+125℃
Frequency - Switching: 750kHz
Output Current: 8.128A

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.157 g

Overview

The bq24725A is a high-efficiency, synchronous battery charger, offering low component count for space-constraint, multi-chemistry battery charging applications. The bq24725A utilizes two charge pumps to separately drive n-channel MOSFETs (ACFET, RBFET and BATFET) for automatic system power source selection. SMBus controlled input current, charge current, and charge voltage DACs allow for very high regulation accuracies that can be easily programmed by the system power management micro-controller. The bq24725A uses internal input current register or external ILIM pin to throttle down PWM modulation to reduce the charge current. The bq24725A charges one, two, three or four series Li+ cells.

Applications

Portable Notebook Computers, UMPC, Ultra-Thin Notebook, and Netbook
Handheld Terminal
Industrial and Medical Equipment
Portable Equipment

Key features

SMBus Host-Controlled NMOS-NMOS Synchronous Buck Converter with Programmable 615kHz, 750kHz, and 885kHz Switching Frequencies
Automatic N-channel MOSFET Selection of System Power Source from Adapter or Battery Driven by Internal Charge Pumps
Enhanced Safety Features for Over Voltage Protection, Over Current Protection, Battery, Inductor and MOSFET Short Circuit Protectio
Programmable Input Current, Charge Voltage, Charge Current Limits
±0.5% Charge Voltage Accuracy up to 19.2V ±3% Charge Current Accuracy up to 8.128A ±3% Input Current Accuracy up to 8.064A ±2% 20× Adapter Current or Charge Current Amplifier Output Accuracy
Programmable Battery Depletion Threshold, and Battery LEARN Function
Programmable Adapter Detection and Indicator
Integrated Soft Start
Integrated Loop Compensation
Real Time System Control on ILIM pin to Limit Charge Current
AC Adapter Operating Range 4.5V-24V
5μA Off-State Battery Discharge Current
0.65mA (0.8mA max) Adapter Standby Quiescent Current
20-pin 3.5×3.5mm² VQFN Package
