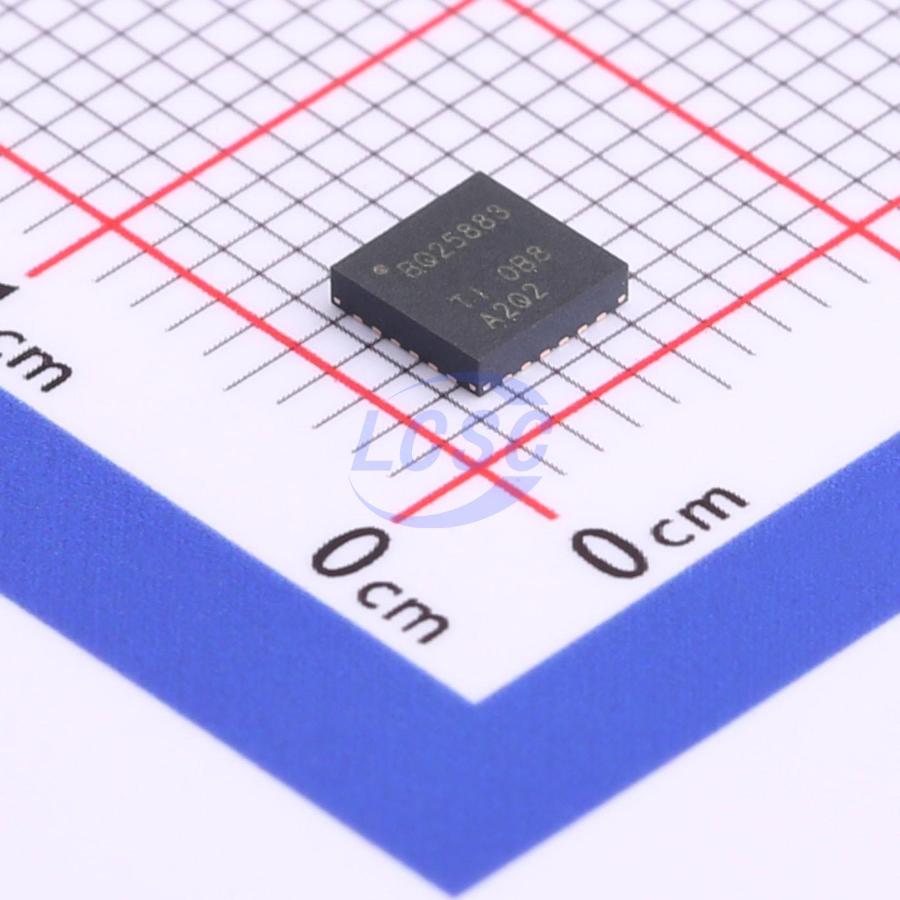

BQ25883RGER
3.9V~6.2V 2 Lithium Battery 2.2A VQFN-24-EP(4x4) Battery Chargers RoHS
VQFN-24-EP(4x4)ROHS3 CompliantActive
Two-cell battery, 2A step-up mode battery charger with power path and USB On-the-Go (OTG) step-up function for USB input
- Manufacturer
- TI
- Manufacturer part #
- BQ25883RGER
- Store part #
- C544362
- Package / case
- VQFN-24-EP(4x4)
- Category
- Battery Chargers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,408 in stock
#C544362
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹750.46 | ₹750.46 |
| 10+ | ₹644.31 | ₹6,443.10 |
| 30+ | ₹581.23 | ₹17,436.90 |
| 100+ | ₹491.61 | ₹49,161.00 |
| 500+ | ₹462.24 | ₹2,31,120.00 |
| 1,000+ | ₹448.97 | ₹4,48,970.00 |
1 × ₹750.46
₹750.46
excl. GST
₹885.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BQ25883RGER
₹750.46 for 1 + GST
Specifications
- Voltage - Supply
- 3.9V~6.2V
- Quiescent Current
- 12uA
- Operating Temperature
- -40℃~+85℃
- Number of Cells
- 2
- Interface
- I2C
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overcharge protection;Battery temperature monitoring;Soft-start
- Battery Temperature Detection
- Support
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- The Chip Type
- Charging IC
- Charge Current - Max
- 2.2A
- Charging Saturation Voltage
- 8.4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.134 g
Overview
The BQ25883 is a highly integrated 2A boost switch-mode battery charging management and system power path management device, suitable for two-cell (2s) lithium-ion and lithium-polymer batteries. The BQ25883 features I²C control, OTG, and power path functions.
Applications
- Bluetooth speaker
- EPOS printer
- Portable POS
- Wireless security camera
Key features
- Efficient 2A 1.5MHz switch-mode boost charger with 93.4% charging efficiency at 5V adapter, 7.6V battery, 1A charge
- Optimized for USB input and 2-cell Li-ion batteries
- Optional low-power PFM mode for light-load operation
- Single input supporting USB input adapter
- 3.9V to 6.2V input voltage range with 20V absolute maximum input voltage rating
- Input current limit (500mA to 3.3A, 100mA accuracy) supporting USB2.0, USB3.0 standard adapters
- Maximum power tracking via input voltage limit up to 5.5V
- Integrated USB D+/D- auto-detection for USB SDP, CDP, DCP, and non-standard adapters
- Power path management and I²C control
- 17mΩ battery discharge MOSFET for maximum battery discharge efficiency
- Narrow VDC (NVDC) power path management for instant-on operation without battery or with deeply discharged battery
- Ideal diode operation in battery charging mode
- USB On-the-Go (OTG) function with adjustable output voltage range of 4.5V to 5.5V
- Buck converter with up to 2A output
- 94% efficiency at 5V, 1A output
- Precise constant current (CC) regulation and output short-circuit protection
- Optional low-power PFM mode for light-load operation with silent option
- Input Current Optimizer (ICO) to maximize input power without overloading the adapter
- Integrated 16-bit ADC for system monitoring (bus voltage and current, battery voltage, charge current, system voltage, NTC and die temperature)
- High integration includes all MOSFETs, current sensing, and loop compensation
- ±0.5% charge voltage regulation
- ±5% charge current regulation
- ±7.5% input current regulation
- Safety: battery temperature detection, thermal regulation, and thermal shutdown in charging and OTG buck modes
