BSP52,115
80V 2000 1A NPN SOT-223 Single Bipolar Transistors RoHS
SOT-223ROHS3 CompliantActive
NPN Darlington transistor
- Manufacturer
- Nexperia
- Manufacturer part #
- BSP52,115
- Store part #
- C455052
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
680 in stock
#C455052
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.41 | ₹74.41 |
| 10+ | ₹59.61 | ₹596.10 |
| 30+ | ₹51.99 | ₹1,559.70 |
| 100+ | ₹44.81 | ₹4,481.00 |
| 500+ | ₹40.25 | ₹20,125.00 |
| 1,000+ | ₹38.08 | ₹38,080.00 |
1 × ₹74.41
₹74.41
excl. GST
₹87.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BSP52,115
₹74.41 for 1 + GST
Specifications
- Vbe Saturation(VBE(sat))
- 1.9V
- Current - Collector Cutoff
- 50nA
- Operating Temperature
- -65℃~+150℃
- Transition frequency(fT)
- 200MHz
- Collector - Emitter Voltage VCEO
- 80V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 2000
- Pd - Power Dissipation
- 1.25W
- Current - Collector(Ic)
- 1A
- type
- NPN
- Vce Saturation(VCE(sat))
- 1.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.136 g
Overview

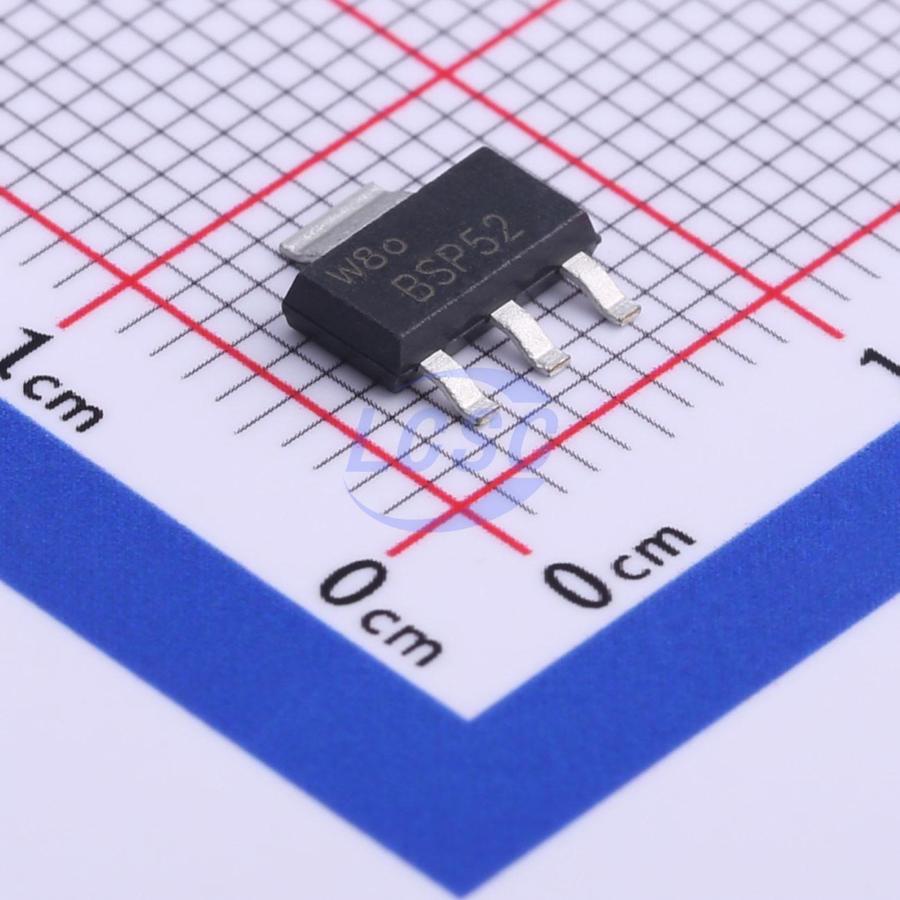

NPN Darlington transistor in an SOT223 plastic package. PNP complement: BSP62
Applications
- Industrial high gain amplification
Key features
- High current of 1 A
- Low voltage of 80 V
- Integrated diode and resistor
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSP52T1G#C899057onsemi · SOT-223 | onsemi | SOT-223 | 3,831 | ₹54.59 · 3,831 in stock | View |
 | FZT7053TA#C444959DIODES · SOT-223 | DIODES | SOT-223 | 14 | ₹117.96 · 14 in stock | View |
 | SBSP52T1G#C900013onsemi · SOT-223-3 | onsemi | SOT-223-3 | 5 | ₹135.85 · 5 in stock | View |
 | FZT603QTA#C460085DIODES · SOT-223 | DIODES | SOT-223 | 10 | ₹140.90 · 10 in stock | View |
 | FZT600TA#C154767DIODES · SOT-223 | DIODES | SOT-223 | 2 | ₹136.36 · 2 in stock | View |
