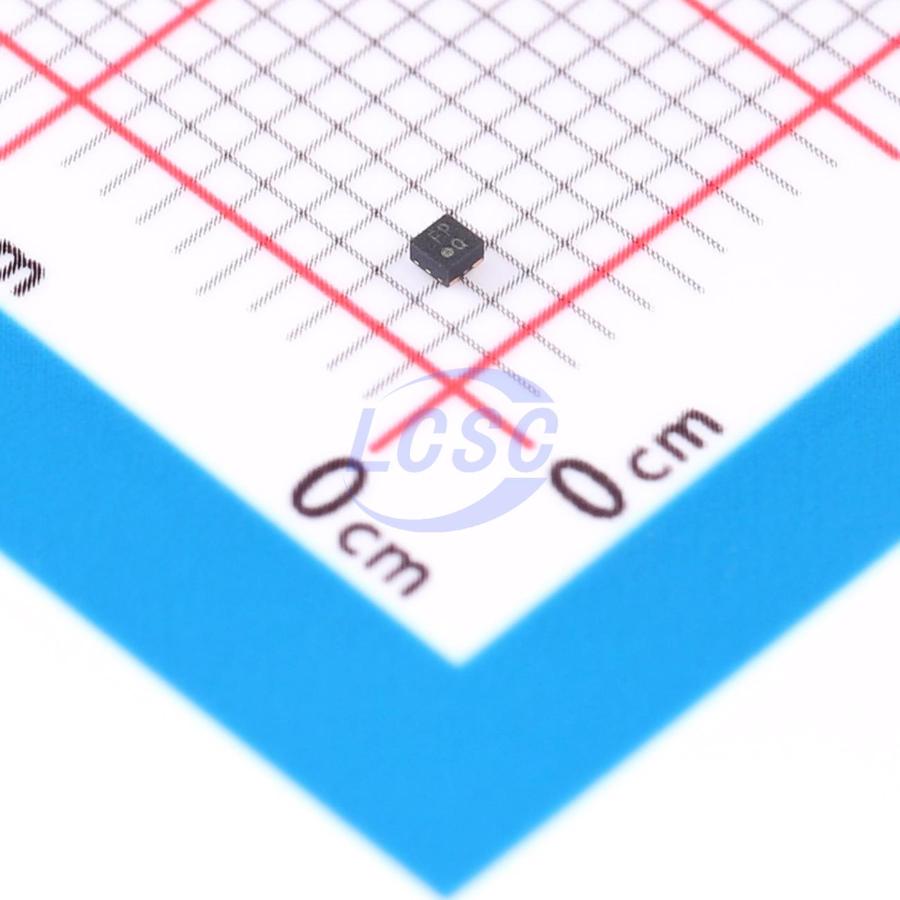

BU18JA2MNVX-CTL
1.8V Positive Fixed UDFN-4-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
UDFN-4-EPROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- BU18JA2MNVX-CTL
- Store part #
- C3746951
- Package / case
- UDFN-4-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,025 in stock
#C3746951
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.70 | ₹198.50 |
| 50+ | ₹30.81 | ₹1,540.50 |
| 150+ | ₹27.02 | ₹4,053.00 |
| 500+ | ₹22.27 | ₹11,135.00 |
| 2,500+ | ₹20.15 | ₹50,375.00 |
| 5,000+ | ₹18.88 | ₹94,400.00 |
5 × ₹39.70
₹198.50
excl. GST
₹234.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BU18JA2MNVX-CTL
₹198.50 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 90uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6V
- Features
- Output discharge;Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.189 g
Overview
The BUxxJA2MNVX-C series are high-performance full-CMOS regulators with 200mA output, housed in the universal package SSON004R1010 (1.00mm x 1.00mm x 0.60mm). These devices feature excellent noise characteristics and load transient response, despite a circuit current consumption as low as 35μA.
Applications
- Automotive cameras, etc.
Key features
- AEC-Q100 certified
- High-accuracy output
- Low current consumption
- Compatible with small ceramic capacitors (CIN = CO = 0.47μF)
- Built-in output discharge circuit
- High ripple rejection
- Output voltage ON/OFF control
- Built-in overcurrent protection circuit
- Built-in thermal shutdown circuit Grade1
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BU18TA2WNVX-TR#C5604564ROHM · UDFN-4-EP | ROHM | UDFN-4-EP | On request | ₹43.80 · 0 in stock | View | |
| MIC5374-SJG1YMT-TR#C622413MICROCHIP · MLF-4 | MICROCHIP | MLF-4 | On request | ₹93.54 · 0 in stock | View | |
