ROHMDatasheet (PDF)

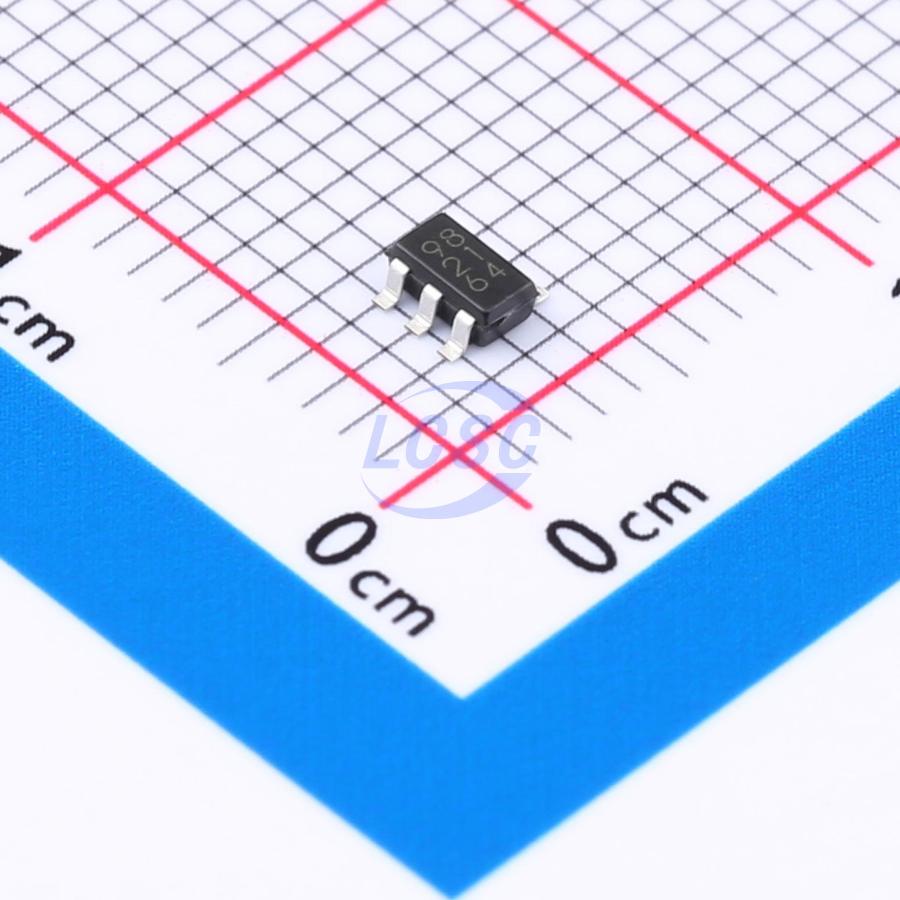

BU33JA2DG-CTR
3.3V Positive Fixed SSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SSOP-5ROHS3 CompliantActive
1ch 200mA CMOS LDO Regulators
- Manufacturer
- ROHM
- Manufacturer part #
- BU33JA2DG-CTR
- Store part #
- C3751689
- Package / case
- SSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C3751689
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹209.52 | ₹209.52 |
| 10+ | ₹174.86 | ₹1,748.60 |
| 30+ | ₹155.80 | ₹4,674.00 |
| 100+ | ₹134.13 | ₹13,413.00 |
| 500+ | ₹124.59 | ₹62,295.00 |
| 1,000+ | ₹120.26 | ₹1,20,260.00 |
1 × ₹209.52
₹209.52
excl. GST
₹247.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BU33JA2DG-CTR
₹209.52 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 100mA
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
BUxxJA2DG - C series are high - performance CMOS LDO regulators with output current ability of up to 200mA. The SSOP5 package can contribute to the downsizing of the set. These devices have excellent noise and load response characteristics despite of its low circuit current consumption of 33μA. They are most appropriate for various applications such as power supplies for radar modules and camera modules.
Applications
- Automotive (Radar modules, Camera modules, etc.)
Key features
- AEC - Q100 qualified
- High Output Voltage Accuracy: +2.0% (In all recommended conditions)
- High Ripple Rejection: 68 dB (Typ, 1kHz)
- Compatible with small ceramic capacitor (Cin = Cout = 0.47μF)
- Low Current Consumption: 33μA
- Output Voltage ON/OFF control
- Output Discharge
- Built - in Over Current Protection Circuit (OCP)
- Built - in Thermal Shutdown Circuit (TSD)
- Package SSOP5 is similar to SOT23 - 5(JEDEC)
