ROHMDatasheet (PDF)

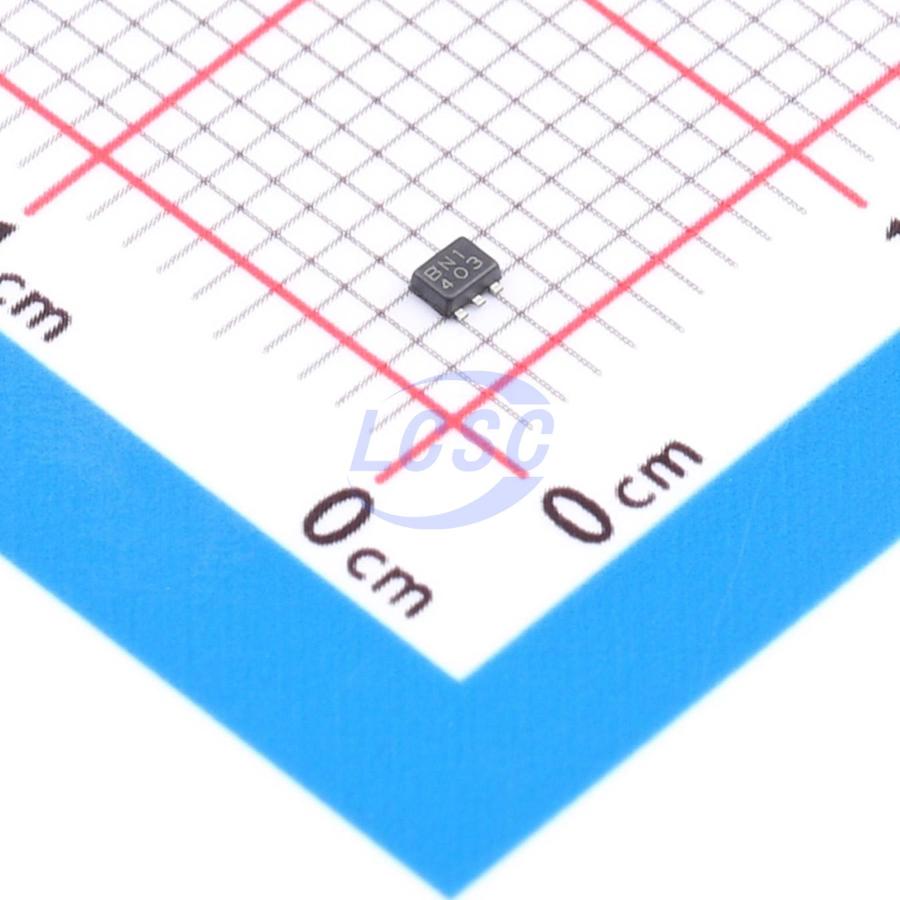

BU33TA2WHFV-TR
3.3V Positive Fixed HVSOF-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HVSOF-5ROHS3 CompliantActive
CMOS LDO Regulators for Portable Equipments
- Manufacturer
- ROHM
- Manufacturer part #
- BU33TA2WHFV-TR
- Store part #
- C6135988
- Package / case
- HVSOF-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C6135988
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.17 | ₹72.17 |
| 10+ | ₹70.25 | ₹702.50 |
| 30+ | ₹68.98 | ₹2,069.40 |
| 100+ | ₹67.71 | ₹6,771.00 |
1 × ₹72.17
₹72.17
excl. GST
₹85.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BU33TA2WHFV-TR
₹72.17 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.047 g
Overview
BU□□TA2WNVX /HFV series is high-performance FULL CMOS regulator with 200-mA output, which is mounted on microminiature package SSON004X1216 (1.2 mm × 1.6 mm × 0.6 mm) & HVSOF5 (1.6 mm × 1.6 mm × 0.6 mm). It has excellent noise characteristics and load responsiveness characteristics despite its low circuit current consumption of 40 μA. It is most appropriate for various applications such as power supplies for logic IC, RF, and camera modules. Microminiature package SSON004X1216 & HVSOF5 with built-in heatsink is adopted for the package, which contributes to the space-saving design of the set.
Applications
- Battery-powered portable equipment
Key features
- High-accuracy output voltage of ±1% (±25 mV on 1.5-V & 1.8-V products)
- High ripple rejection: 70 dB (Typ., 1 kHz, VOUT ≤ 1.8 V)
- Compatible with small ceramic capacitor (CIN = C0 = 1.0 μF)
- Low current consumption: 40 μA
- ON/OFF control of output voltage
- With built-in overcurrent protection circuit and overheat protection circuit
- With built-in output discharge circuit
- Adopting microminiature power package SSON004X1216
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TCR2LE33,LM(CT#C20619275TOSHIBA · SOT-553 | TOSHIBA | SOT-553 | 115 | ₹18.72 · 115 in stock | View |
 | TCR2EE33,LM(CT#C146430TOSHIBA · SOT-553-5 | TOSHIBA | SOT-553-5 | On request | ₹18.84 · 0 in stock | View |
