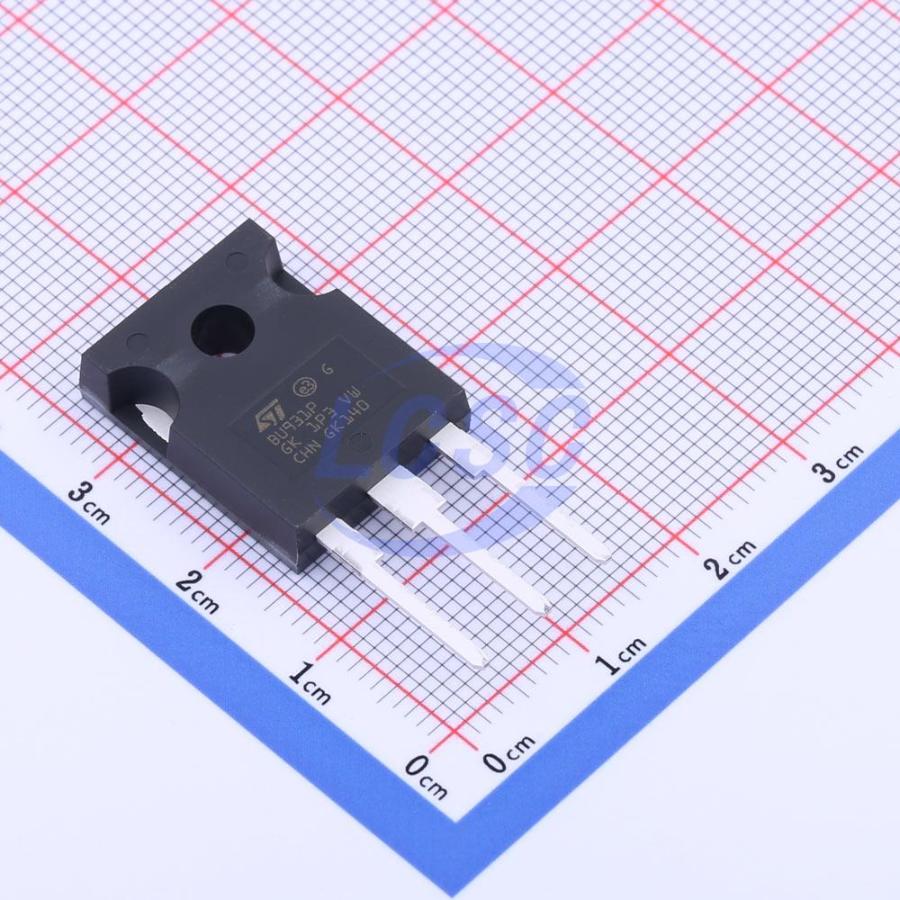

BU931P

400V 300 10A NPN TO-247-3 Single Bipolar Transistors RoHS

TO-247-3ROHS3 CompliantActive

Manufacturer: ST
Manufacturer part #: BU931P
Store part #: C2922669
Package / case: TO-247-3
Category: Single Bipolar Transistors
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

87 in stock

#C2922669

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹648.53	₹648.53
10+	₹551.85	₹5,518.50
30+	₹494.35	₹14,830.50
90+	₹436.21	₹39,258.90
510+	₹409.43	₹2,08,809.30
990+	₹397.23	₹3,93,257.70

Quantity (min 1)

1 × ₹648.53

₹648.53

excl. GST

₹765.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 30 per tube

BU931P

₹648.53 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Vbe Saturation(VBE(sat)): 2.2V;2.4V;2.5V
Current - Collector Cutoff: 100uA
Operating Temperature: -65℃~+175℃
Collector - Emitter Voltage VCEO: 400V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 300
Pd - Power Dissipation: 125W
Current - Collector(Ic): 10A
type: NPN
Vce Saturation(VCE(sat)): 1.8V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 30 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 6.38 g

Overview

This is a high-voltage power Darlington transistor developed using multi-epitaxial planar technology. It is specifically designed for automotive environments, serving as an electronic ignition power actuator.

Applications

High-durability electronic ignition device

Key features

AEC-Q101 qualified
Robust bipolar technology
High operating junction temperature
