VBsemi ElecDatasheet (PDF)

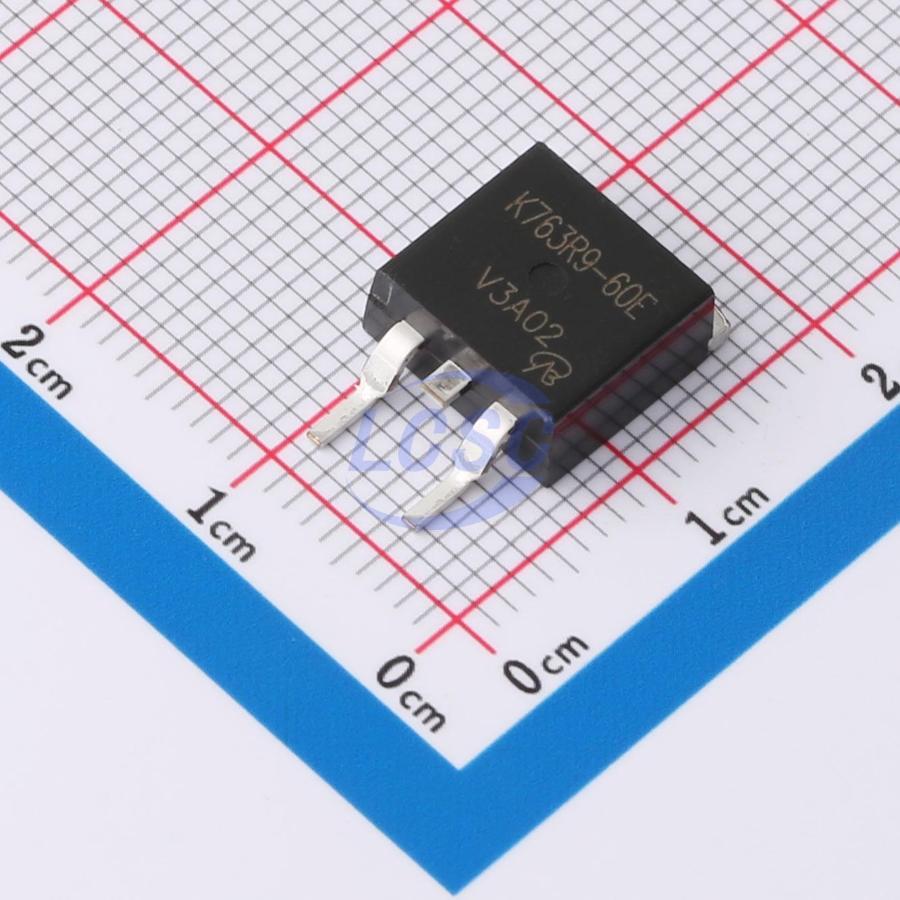

BUK763R9-60E-VB
N-Channel 60V 210A 375W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)ROHS CompliantActive
MOSFET N-CH 60V 210A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BUK763R9-60E-VB
- Store part #
- C7524946
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7524946
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹201.03 | ₹201.03 |
| 10+ | ₹167.84 | ₹1,678.40 |
| 50+ | ₹149.57 | ₹7,478.50 |
| 100+ | ₹128.77 | ₹12,877.00 |
| 500+ | ₹119.52 | ₹59,760.00 |
| 1,000+ | ₹115.33 | ₹1,15,330.00 |
1 × ₹201.03
₹201.03
excl. GST
₹237.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
BUK763R9-60E-VB
₹201.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 210A
- Ciss-Input Capacitance
- 9.125nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 810pF
- RDS(on)
- 2.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 184nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.5 g
Overview
Applications
- Direct logic level interface: TTL/CMOS
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
- Battery-powered systems
- Solid-state relays
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB120N06S4-03-VB#C7428983VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 2 | ₹198.29 · 2 in stock | View |
| BUK764R0-55B,118-VB#C52191008VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹208.99 · 5 in stock | View | |
| PSMN3R0-60BS,118-VB#C52191010VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹208.99 · 5 in stock | View | |
 | BUK962R5-60E,118-VB#C52191003VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹223.14 · 5 in stock | View |
 | PSMN1R7-60BS,118-VB#C52191004VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹223.14 · 5 in stock | View |
