VBsemi ElecDatasheet (PDF)

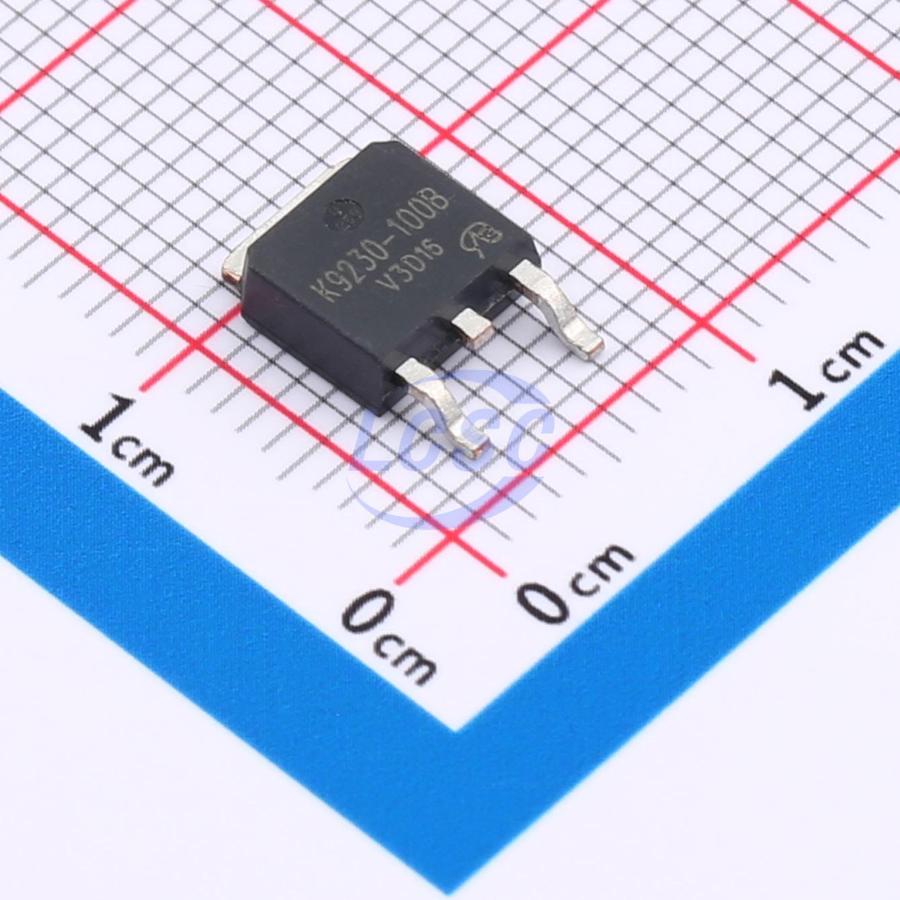

BUK9230-100B-VB
N-Channel 100V 9.2A 136.4W Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET N-CH 100V 9.2A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BUK9230-100B-VB
- Store part #
- C7568755
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7568755
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.88 | ₹155.88 |
| 10+ | ₹131.06 | ₹1,310.60 |
| 30+ | ₹118.65 | ₹3,559.50 |
| 100+ | ₹106.24 | ₹10,624.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 1,000+ | ₹72.28 | ₹72,280.00 |
1 × ₹155.88
₹155.88
excl. GST
₹183.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BUK9230-100B-VB
₹155.88 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 230pF
- Current - Continuous Drain(Id)
- 9.2A
- Ciss-Input Capacitance
- 2.4nF
- Pd - Power Dissipation
- 136.4W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 18mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.505 g
Overview
Applications
- Primary-side switch
- Isolated DC/DC converter
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK7227-100B,118-VB#C52190891VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 4 | ₹133.24 · 4 in stock | View |
 | BUK9230-100B,118-VB#C52190892VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹141.94 · 5 in stock | View |
 | PSMN025-100D,118-VB#C52190893VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 33 | ₹156.31 · 33 in stock | View |
 | BUK7226-75A118-VB#C52190894VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 3 | ₹153.26 · 3 in stock | View |
 | BUK9226-75A,118-VB#C52190895VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹141.94 · 5 in stock | View |
