VISHAYDatasheet (PDF)

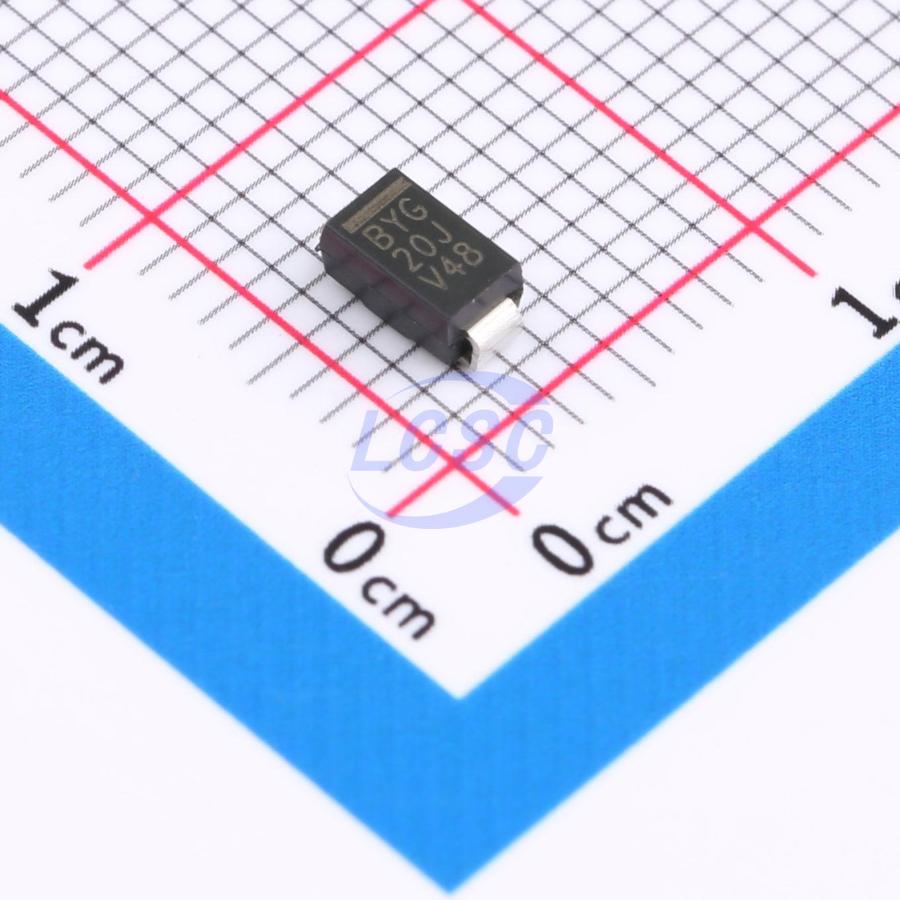

BYG20J-E3/TR
75ns 1 Independent 600V 1.4V@1.5A 1.5A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Diode 600V 1.5A SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- BYG20J-E3/TR
- Store part #
- C241925
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,195 in stock
#C241925
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.39 | ₹116.95 |
| 50+ | ₹18.99 | ₹949.50 |
| 150+ | ₹17.09 | ₹2,563.50 |
| 500+ | ₹14.72 | ₹7,360.00 |
| 1,800+ | ₹13.68 | ₹24,624.00 |
| 5,400+ | ₹13.04 | ₹70,416.00 |
5 × ₹23.39
₹116.95
excl. GST
₹138.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
BYG20J-E3/TR
₹116.95 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 75ns
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.4V@1.5A
- Reverse Leakage Current (Ir)
- 1uA@600V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.116 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BYG20J#C19272962LGE · SMA | LGE | SMA | 5,470 | ₹12.38 · 5,470 in stock | View |
 | BYG21M-E3-FS#C6807799FUXINSEMI · SMA(DO-214AC) | FUXINSEMI | SMA(DO-214AC) | 2,310 | ₹5.87 · 2,310 in stock | View |
 | BYG21K#C19272968LGE · SMA | LGE | SMA | 4,630 | ₹8.86 · 4,630 in stock | View |
 | BYG21M#C3010102LGE · DO-214AC(SMA) | LGE | DO-214AC(SMA) | 970 | ₹17.85 · 970 in stock | View |
 | ES2JA#C842810FUXINSEMI · SMA(DO-214AC) | FUXINSEMI | SMA(DO-214AC) | 6,700 | ₹2.28 · 6,700 in stock | View |
