VISHAYDatasheet (PDF)

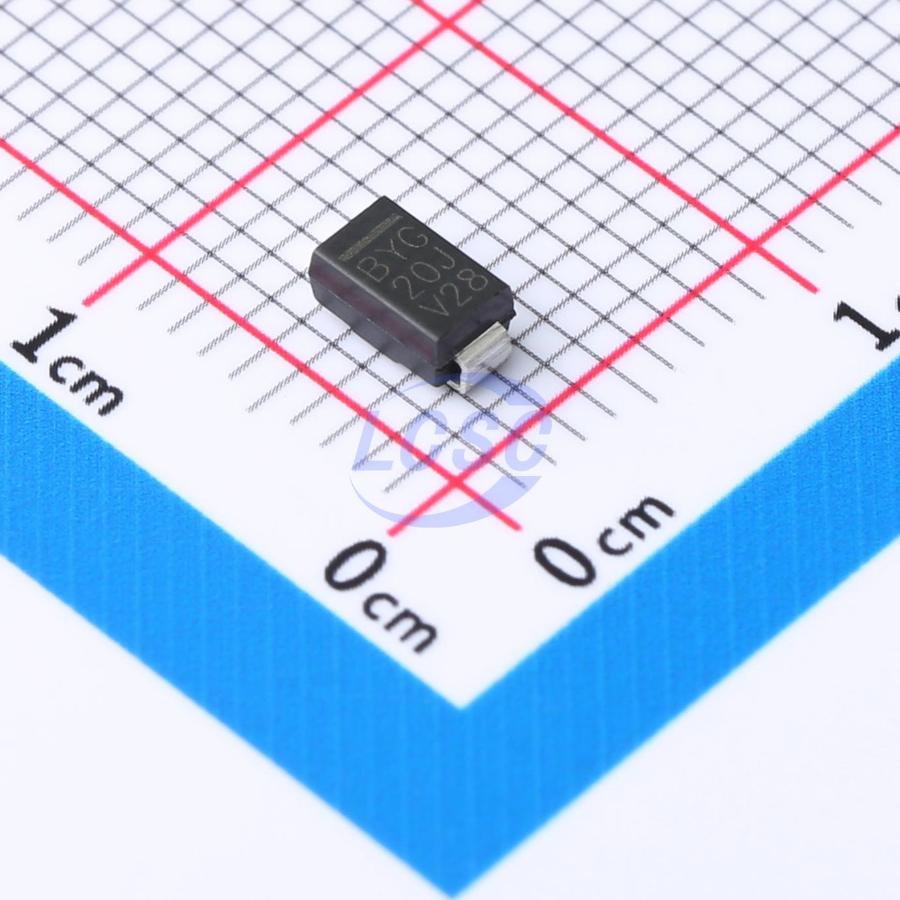

BYG20J-E3/TR3
75ns 1 Independent 600V 1.4V@1.5A 1.5A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Ultrafast Avalanche SMD Rectifier
- Manufacturer
- VISHAY
- Manufacturer part #
- BYG20J-E3/TR3
- Store part #
- C54870
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C54870
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.42 | ₹55.42 |
| 10+ | ₹43.90 | ₹439.00 |
| 30+ | ₹39.12 | ₹1,173.60 |
| 100+ | ₹33.04 | ₹3,304.00 |
| 500+ | ₹30.22 | ₹15,110.00 |
| 1,000+ | ₹28.70 | ₹28,700.00 |
1 × ₹55.42
₹55.42
excl. GST
₹65.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
BYG20J-E3/TR3
₹55.42 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 75ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.4V@1.5A
- Reverse Leakage Current (Ir)
- 1uA
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1.5A
- Avalanche Energy
- 20mJ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
Applications
- For use in high frequency rectification of power supply, inverters, converters, and freewheeling diodes for consumer, automotive and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated pallet chip junction
- Low reverse current RoHS
- Soft recovery characteristics COMPLIANT
- Ultrafast reverse recovery time
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260 ℃
- AEC - Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BYG10Y#C19272964LGE · SMA | LGE | SMA | 3,290 | ₹19.13 · 3,290 in stock | View |
 | BYG10Y-E3/TR3#C5358671VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 224 | ₹72.32 · 224 in stock | View |
 | BYG10YHE3_A/H#C5447084VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 35 | ₹25.85 · 35 in stock | View |
 | BYG10Y-E3/TR#C97584VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 31,405 | ₹26.50 · 31,405 in stock | View |
 | BYG23M-E3/TR#C141573VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 21,590 | ₹23.89 · 21,590 in stock | View |
