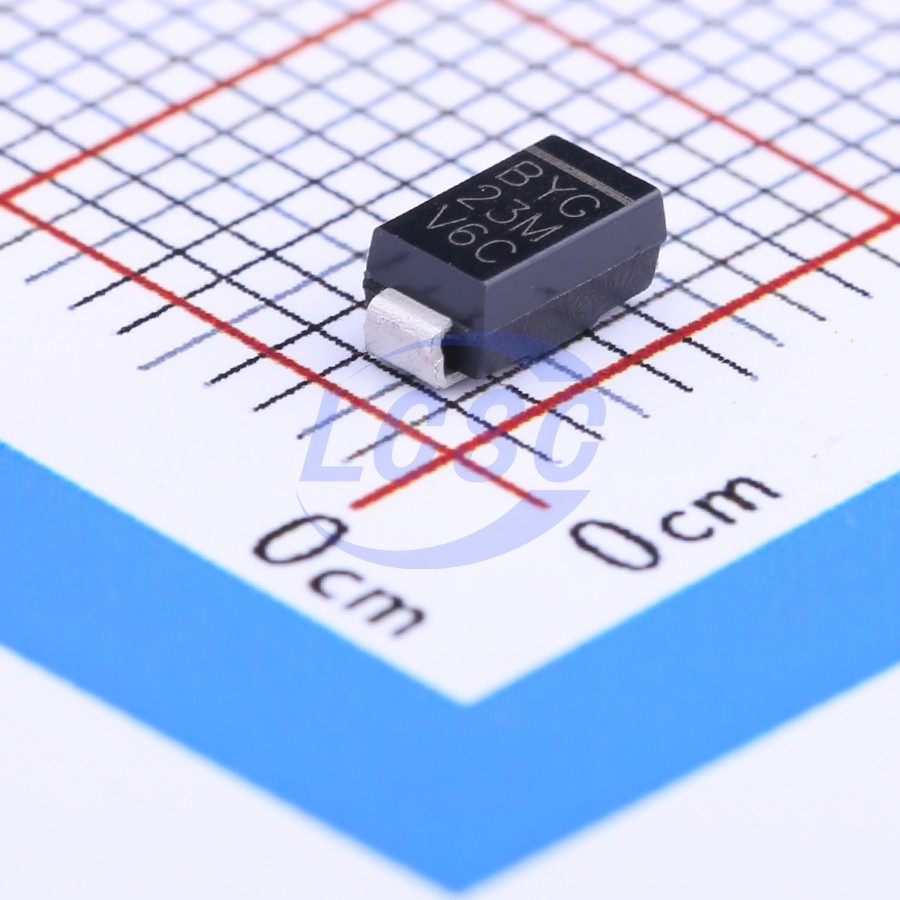

BYG23M-E3/TR3
75ns 1 Independent 1kV 1.7V@1A 1.5A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS CompliantActive
Ultrafast Avalanche SMD Rectifier
- Manufacturer
- VISHAY
- Manufacturer part #
- BYG23M-E3/TR3
- Store part #
- C141616
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,175 in stock
#C141616
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.46 | ₹207.30 |
| 50+ | ₹32.92 | ₹1,646.00 |
| 150+ | ₹29.26 | ₹4,389.00 |
| 500+ | ₹24.69 | ₹12,345.00 |
| 2,500+ | ₹22.65 | ₹56,625.00 |
| 7,500+ | ₹21.43 | ₹1,60,725.00 |
5 × ₹41.46
₹207.30
excl. GST
₹244.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
BYG23M-E3/TR3
₹207.30 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 75ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Voltage - Forward(Vf@If)
- 1.7V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1.5A
- Avalanche Energy
- 20mJ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.067 g
Overview
Applications
- For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated pellet chip junction
- Low reverse current RoHS
- High reverse voltage COMPLIANT
- Ultra fast reverse recovery time
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified
