VISHAYDatasheet (PDF)

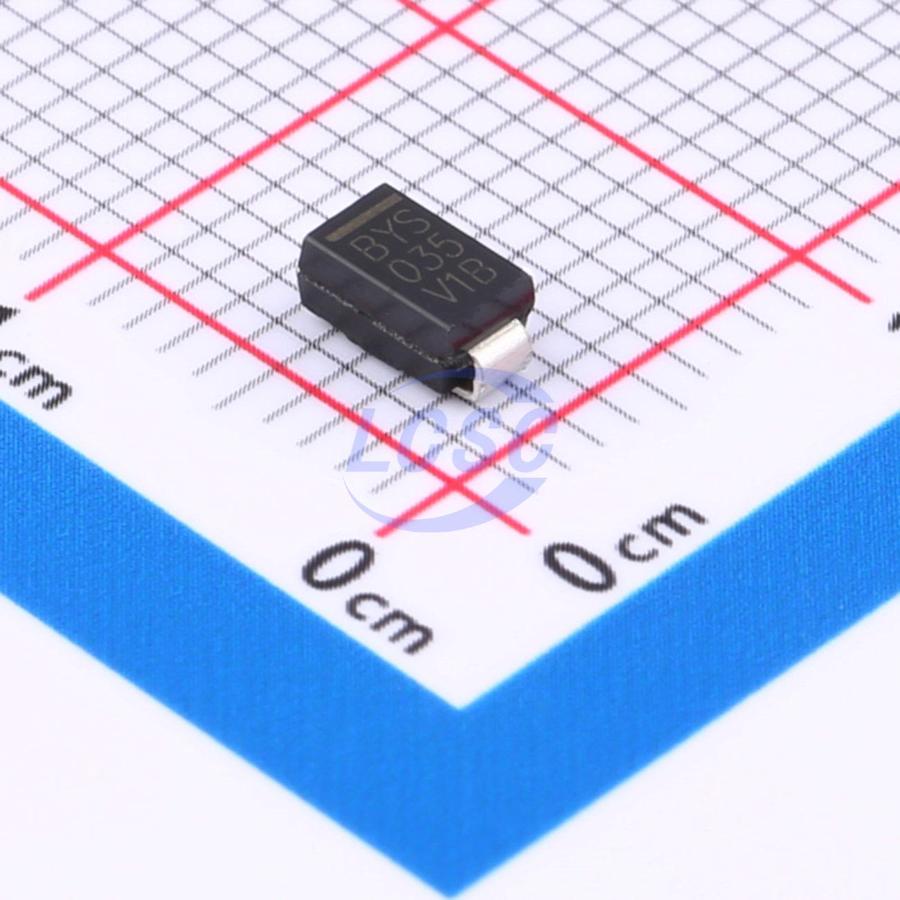

BYS10-35-E3/TR
Diode 1 Independent 35V 1.5A Surface Mount DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
DIODE SCHOTTKY 35V DO-214AC(SMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- BYS10-35-E3/TR
- Store part #
- C3758279
- Package / case
- DO-214AC(SMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C3758279
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.28 | ₹86.40 |
| 50+ | ₹13.56 | ₹678.00 |
| 150+ | ₹11.70 | ₹1,755.00 |
| 500+ | ₹10.29 | ₹5,145.00 |
| 1,800+ | ₹9.18 | ₹16,524.00 |
| 5,400+ | ₹8.63 | ₹46,602.00 |
5 × ₹17.28
₹86.40
excl. GST
₹101.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
BYS10-35-E3/TR
₹86.40 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 35V
- Voltage - Forward(Vf@If)
- 500mV@1A
- Reverse Leakage Current (Ir)
- 500uA@35V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.122 g
Overview
Applications
- For low-voltage high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications
Key features
- Low-profile package, suitable for automated placement
- Guard ring for overvoltage protection
- Low power dissipation, high efficiency
- Extremely low switching losses
- High surge capability
- MSL Level 1 per J-STD-020, LF max peak 260℃
- AEC-Q101 qualification available
- Automotive order codes: base P/N HE3 or P/N HM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STPS2L30A#C133102ST · SMA(DO-214AC) | ST | SMA(DO-214AC) | 3,345 | ₹23.30 · 3,345 in stock | View |
 | BYS10-45-E3/TR#C469329VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 10,455 | ₹15.11 · 10,455 in stock | View |
| BYS10-35HE3_A/H#C5582713VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 1,800 | ₹56.37 · 1,800 in stock | View | |
| BYS10-45HE3_A/H#C5957003VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 1,305 | ₹34.20 · 1,305 in stock | View | |
 | SS24A#C3035843PAKER · SMA | PAKER | SMA | 4,760 | ₹3.51 · 4,760 in stock | View |
