HXY MOSFETDatasheet (PDF)

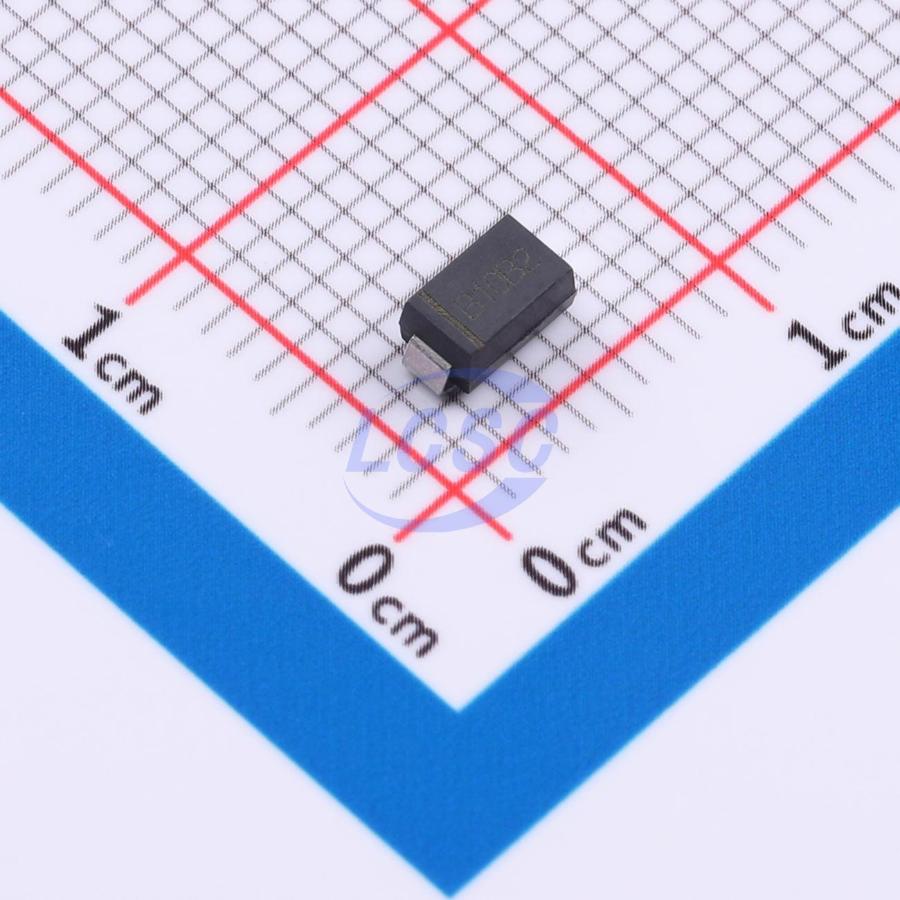

BYS10-35HE3_A/H-HXY
40V 1 Independent 550mV@2A 2A SMA Single Diodes
SMARoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BYS10-35HE3_A/H-HXY
- Store part #
- C52988738
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C52988738
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.32 | ₹91.60 |
| 50+ | ₹14.61 | ₹730.50 |
| 150+ | ₹12.74 | ₹1,911.00 |
| 500+ | ₹11.34 | ₹5,670.00 |
| 2,000+ | ₹10.23 | ₹20,460.00 |
| 4,000+ | ₹9.66 | ₹38,640.00 |
5 × ₹18.32
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BYS10-35HE3_A/H-HXY
₹91.60 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - Forward(Vf@If)
- 550mV@2A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.084 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMSH2-40MTR13-HXY#C52988624HXY MOSFET · SMA | HXY MOSFET | SMA | 125 | ₹33.09 · 125 in stock | View |
 | RB060L-40DDTE25-HXY#C52988625HXY MOSFET · SMA | HXY MOSFET | SMA | 196 | ₹56.06 · 196 in stock | View |
 | RBR2L40ADDTE25-HXY#C52988626HXY MOSFET · SMA | HXY MOSFET | SMA | 180 | ₹42.24 · 180 in stock | View |
 | SSA24-HXY#C52988627HXY MOSFET · SMA | HXY MOSFET | SMA | 135 | ₹13.88 · 135 in stock | View |
 | XBS204S19R-G-HXY#C52988628HXY MOSFET · SMA | HXY MOSFET | SMA | 180 | ₹44.28 · 180 in stock | View |
