HXY MOSFETDatasheet (PDF)

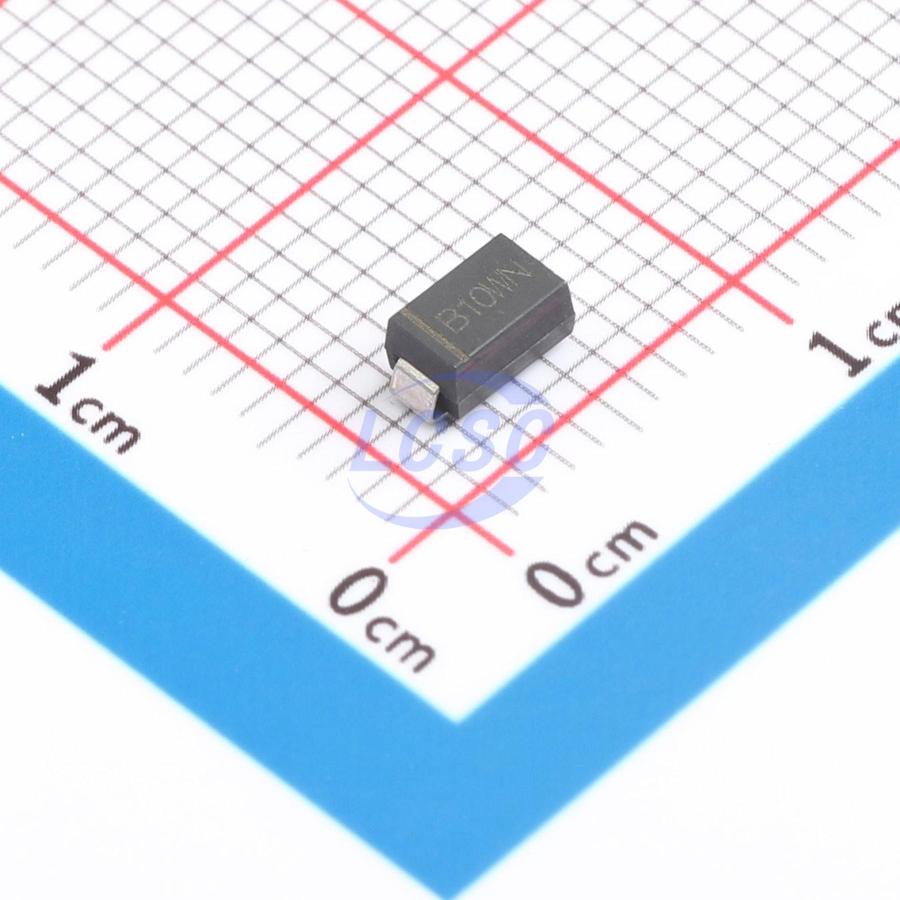

BYS10-45-M3/TR3-HXY
40V 1 Independent 550mV@3A 3A SMA Single Diodes
SMARoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BYS10-45-M3/TR3-HXY
- Store part #
- C52988741
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C52988741
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.64 | ₹58.20 |
| 50+ | ₹9.27 | ₹463.50 |
| 150+ | ₹8.10 | ₹1,215.00 |
| 500+ | ₹7.21 | ₹3,605.00 |
| 2,000+ | ₹6.50 | ₹13,000.00 |
| 4,000+ | ₹6.14 | ₹24,560.00 |
5 × ₹11.64
₹58.20
excl. GST
₹68.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
BYS10-45-M3/TR3-HXY
₹58.20 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - Forward(Vf@If)
- 550mV@3A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Non-Repetitive Peak Forward Surge Current
- 70A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
