VISHAYDatasheet (PDF)
BYV26C-TR
30ns 1 Independent 600V 2.5V@1A 1A SOD-57 Single Diodes RoHS
SOD-57ROHS3 CompliantActive

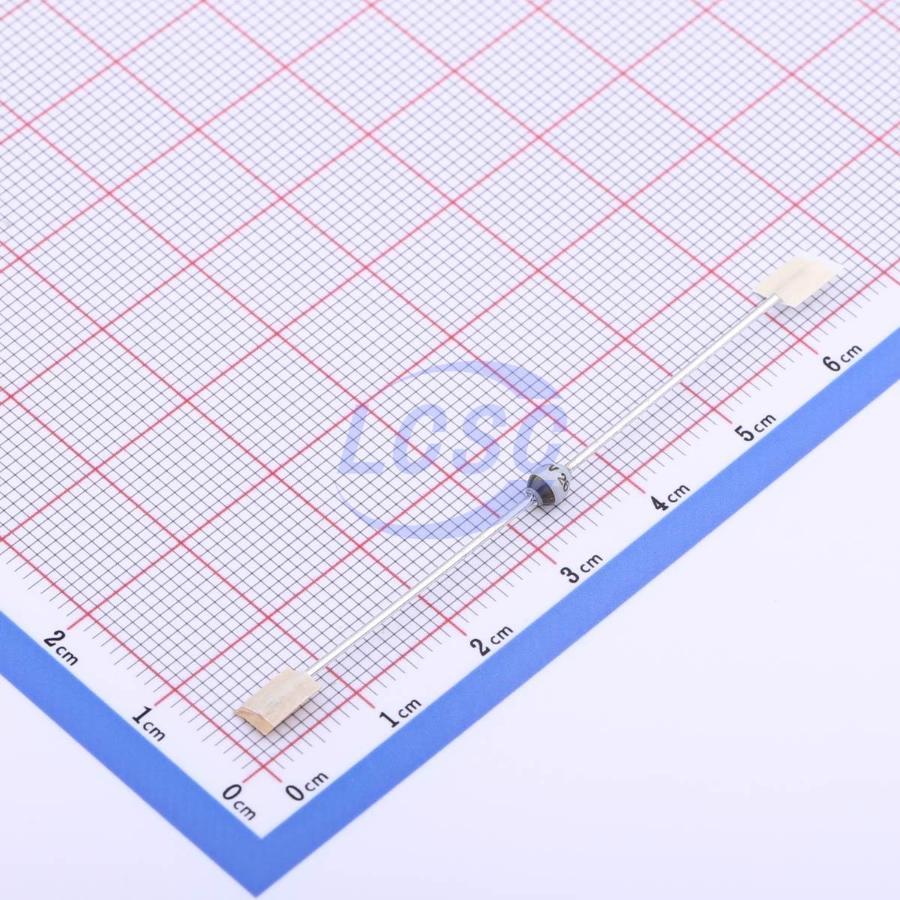

Ultra-Fast Avalanche Sinterglass Diode
- Manufacturer
- VISHAY
- Manufacturer part #
- BYV26C-TR
- Store part #
- C917484
- Package / case
- SOD-57
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,628 in stock
#C917484
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.17 | ₹75.17 |
| 10+ | ₹60.18 | ₹601.80 |
| 30+ | ₹52.80 | ₹1,584.00 |
| 100+ | ₹45.42 | ₹4,542.00 |
| 500+ | ₹41.07 | ₹20,535.00 |
| 1,000+ | ₹38.90 | ₹38,900.00 |
1 × ₹75.17
₹75.17
excl. GST
₹88.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BYV26C-TR
₹75.17 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 30ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 2.5V@1A
- Reverse Leakage Current (Ir)
- 5uA@600V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
- Avalanche Energy
- 10mJ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.43 g
Overview
Applications
- Switched mode power supplies
- High-frequency inverter circuits
Key features
- Glass passivated junction
- Hermetically sealed package
- Very low switching losses
- Low reverse current
- High reverse voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BYV26C-TAP#C14686VISHAY · SOD-57 | VISHAY | SOD-57 | 5,852 | ₹67.09 · 5,852 in stock | View |
 | BYV26CGP#C48928300XCH · SOD-57 | XCH | SOD-57 | 1,825 | ₹38.00 · 1,825 in stock | View |
 | BYV26E#C48928113XCH · SOD-57 | XCH | SOD-57 | 1,545 | ₹37.89 · 1,545 in stock | View |
 | SF4007-TR#C7357351VISHAY · SOD-57 | VISHAY | SOD-57 | 8 | ₹52.95 · 8 in stock | View |
 | BYT54M-TAP#C335597VISHAY · SOD-57 | VISHAY | SOD-57 | 7 | ₹190.87 · 7 in stock | View |
