VISHAYDatasheet (PDF)

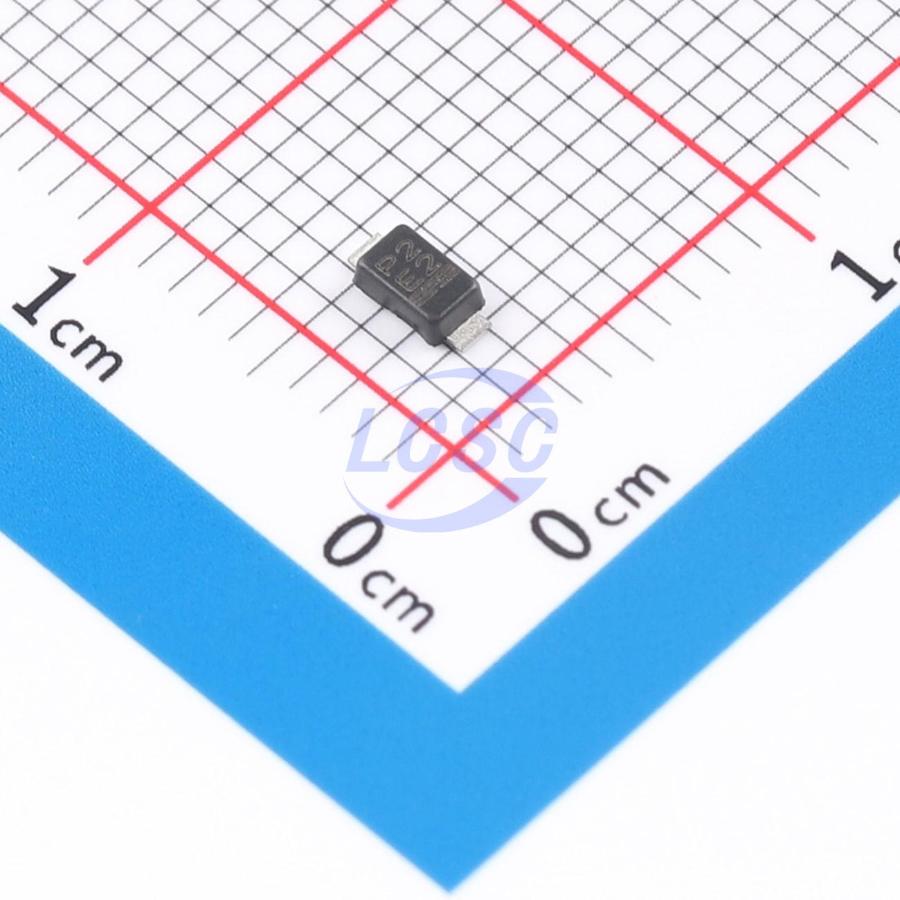

BZD27C11P-E3-08
1 Independent 10.4V~11.6V 11V DO-219AB(SMF) Single Zener Diodes RoHS
DO-219AB(SMF)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZD27C11P-E3-08
- Store part #
- C3765184
- Package / case
- DO-219AB(SMF)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C3765184
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.58 | ₹147.90 |
| 50+ | ₹29.07 | ₹1,453.50 |
| 150+ | ₹28.71 | ₹4,306.50 |
| 500+ | ₹28.37 | ₹14,185.00 |
5 × ₹29.58
₹147.90
excl. GST
₹174.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZD27C11P-E3-08
₹147.90 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 800mW
- Reverse Leakage Current (Ir)
- 4uA@8.2V
- Impedance(Zzt)
- 4Ω
- Zener Voltage(Range)
- 10.4V~11.6V
- Zener Voltage(Nom)
- 11V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Key features
- Sillicon planar Zener diodes
- Low profile surface-mount package
- Zener and surge current specification
- Low leakage current
- Excellent stability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Meets JESD 201 class 2 whisker test
- ESD capability according to AEC-Q101: human body model: >8kV machine model: >800V
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-E3 - RoHS-compliant, and commercial grade
- Base P/N-HE3 - RoHS-compliant, and AEC-Q101 qualified
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZD27C10P-HE3-08#C145207VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 2 | ₹63.03 · 2 in stock | View |
 | BZD27C12P-HE3-08#C144949VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 1,565 | ₹37.15 · 1,565 in stock | View |
 | BZD27C12P-E3-08#C5342942VISHAY · DO-219AB | VISHAY | DO-219AB | 270 | ₹20.76 · 270 in stock | View |
| BZD27C11P-HE3-18#C5565618VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹40.33 · 0 in stock | View | |
| BZD27C11P-E3-18#C6474875VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹19.90 · 0 in stock | View | |
