VISHAYDatasheet (PDF)

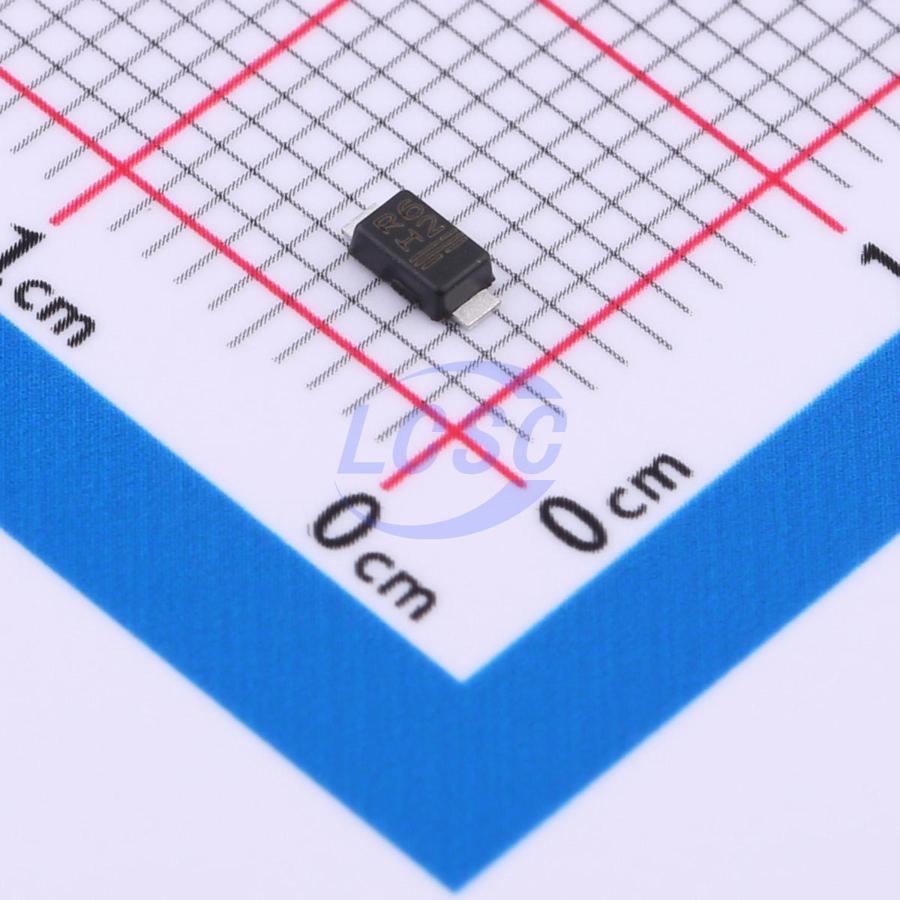

BZD27C200P-E3-08
Zener Diode Independent 200V 800mW Surface Mount DO-219AB
DO-219ABROHS3 CompliantActive
DIODE ZENER 200V 800mW DO-219AB
- Manufacturer
- VISHAY
- Manufacturer part #
- BZD27C200P-E3-08
- Store part #
- C81350
- Package / case
- DO-219AB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,595 in stock
#C81350
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.63 | ₹63.15 |
| 50+ | ₹10.11 | ₹505.50 |
| 150+ | ₹8.84 | ₹1,326.00 |
| 500+ | ₹7.90 | ₹3,950.00 |
| 3,000+ | ₹7.13 | ₹21,390.00 |
| 6,000+ | ₹6.76 | ₹40,560.00 |
5 × ₹12.63
₹63.15
excl. GST
₹74.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZD27C200P-E3-08
₹63.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 800mW
- Reverse Leakage Current (Ir)
- 1uA@150V
- Impedance(Zzt)
- 500Ω
- Zener Voltage(Range)
- 188V~212V
- Zener Voltage(Nom)
- 200V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
Key features
- Sillicon planar Zener diodes
- Low profile surface-mount package
- Zener and surge current specification
- Low leakage current
- Excellent stability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Meets JESD 201 class 2 whisker test
- ESD capability according to AEC-Q101: human body model: >8kV machine model: >800V
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-E3 - RoHS-compliant, and commercial grade
- Base P/N-HE3 - RoHS-compliant, and AEC-Q101 qualified
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZD27C200P-M3-08#C5957165VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹21.67 · 0 in stock | View | |
| BZD27C200P-E3-18#C6522366VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹19.90 · 0 in stock | View | |
| BZD27C200P-HE3-18#C6522370VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹44.04 · 0 in stock | View | |
| BZD27C200P-M3-18#C6755780VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹24.77 · 0 in stock | View | |
 | BZD27C200P#C5334363VISHAY · SMF | VISHAY | SMF | On request | ₹135.63 · 0 in stock | View |
