VISHAYDatasheet (PDF)

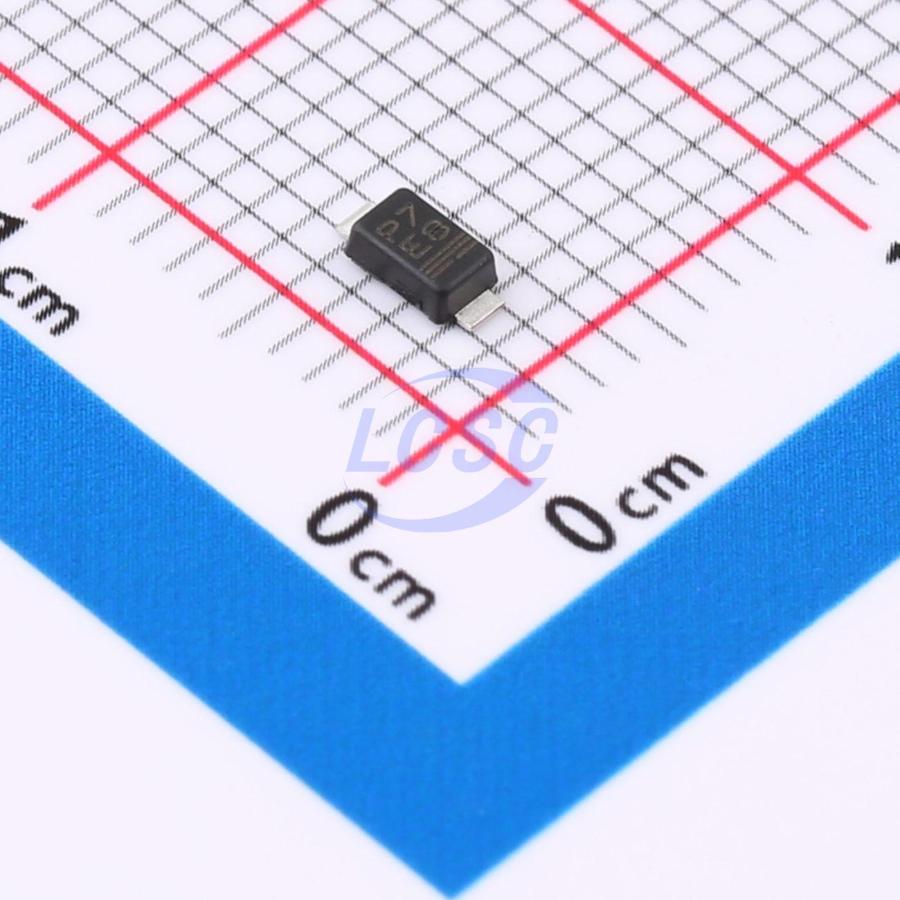

BZD27C20P-E3-08
Zener Diode Independent 20V 800mW Surface Mount DO-219AB(SMF)
DO-219AB(SMF)ROHS3 CompliantActive
DIODE ZENER 20V 800mW DO-219AB(SMF)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZD27C20P-E3-08
- Store part #
- C3737952
- Package / case
- DO-219AB(SMF)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,745 in stock
#C3737952
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.72 | ₹58.60 |
| 50+ | ₹9.38 | ₹469.00 |
| 150+ | ₹8.20 | ₹1,230.00 |
| 500+ | ₹7.33 | ₹3,665.00 |
| 3,000+ | ₹6.63 | ₹19,890.00 |
| 6,000+ | ₹6.27 | ₹37,620.00 |
5 × ₹11.72
₹58.60
excl. GST
₹69.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZD27C20P-E3-08
₹58.60 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 800mW
- Reverse Leakage Current (Ir)
- 1uA
- Impedance(Zzt)
- 6Ω
- Zener Voltage(Range)
- 18.8V~21.2V
- Zener Voltage(Nom)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
Key features
- Sillicon planar Zener diodes
- Low profile surface-mount package
- Zener and surge current specification
- Low leakage current
- Excellent stability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Meets JESD 201 class 2 whisker test
- ESD capability according to AEC-Q101: human body model: >8kV machine model: >800V
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-E3 - RoHS-compliant, and commercial grade
- Base P/N-HE3 - RoHS-compliant, and AEC-Q101 qualified
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
