VISHAYDatasheet (PDF)

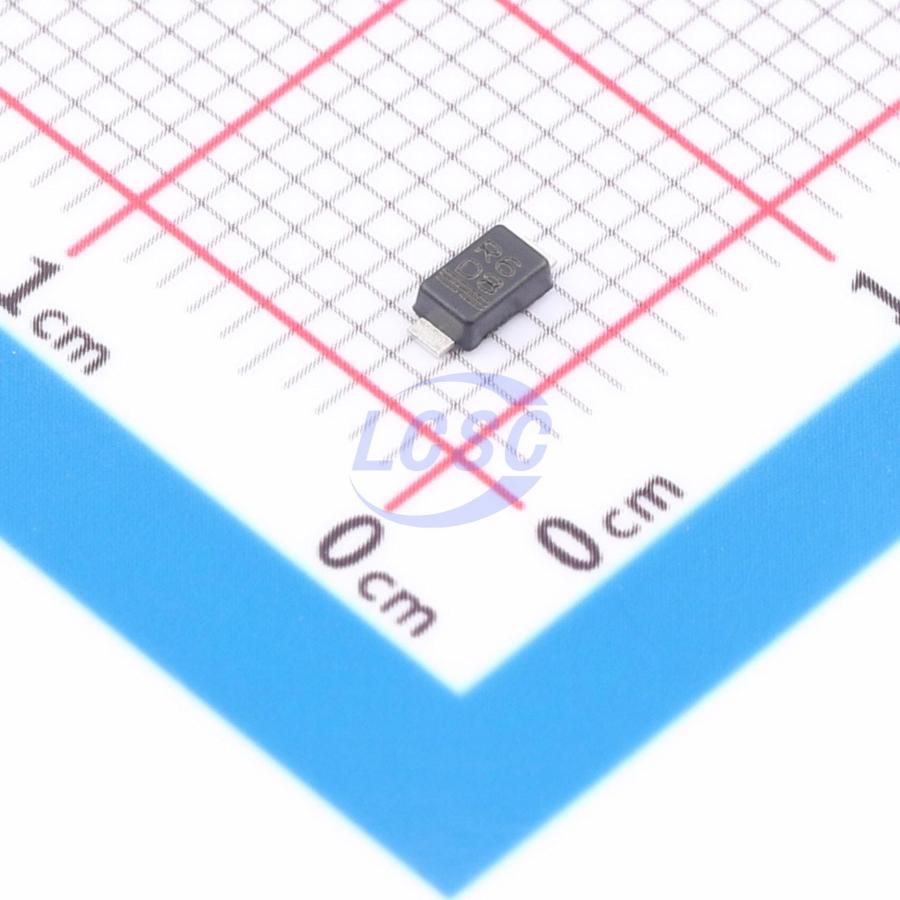

BZD27C7V5P-E3-08
1 Independent 7V~7.9V 7.5V DO-219AB Single Zener Diodes RoHS
DO-219ABROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZD27C7V5P-E3-08
- Store part #
- C144892
- Package / case
- DO-219AB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C144892
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹39.69 | ₹39.69 |
| 10+ | ₹39.03 | ₹390.30 |
| 30+ | ₹38.61 | ₹1,158.30 |
| 100+ | ₹38.17 | ₹3,817.00 |
1 × ₹39.69
₹39.69
excl. GST
₹46.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZD27C7V5P-E3-08
₹39.69 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 800mW
- Reverse Leakage Current (Ir)
- 50uA@3V
- Impedance(Zzt)
- 2Ω
- Zener Voltage(Range)
- 7V~7.9V
- Zener Voltage(Nom)
- 7.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.293 g
Overview
Key features
- Sillicon planar Zener diodes
- Low profile surface-mount package
- Zener and surge current specification
- Low leakage current
- Excellent stability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- Meets JESD 201 class 2 whisker test
- ESD capability according to AEC-Q101: human body model: >8kV machine model: >800V
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-E3 - RoHS-compliant, and commercial grade
- Base P/N-HE3 - RoHS-compliant, and AEC-Q101 qualified
- Compatible to SOD-123W package case outline or SOD-123F and SOD-123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZD27C7V5P-HE3-08#C144887VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹33.34 · 0 in stock | View |
| BZD27C7V5P-M3-08#C5565678VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹21.67 · 0 in stock | View | |
| BZD27C7V5P-HE3-18#C6474960VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹40.33 · 0 in stock | View | |
| BZD27C7V5P-E3-18#C6870661VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹22.74 · 0 in stock | View | |
| BZD27C7V5P-M3-18#C6474964VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹21.67 · 0 in stock | View | |
