VISHAYDatasheet (PDF)

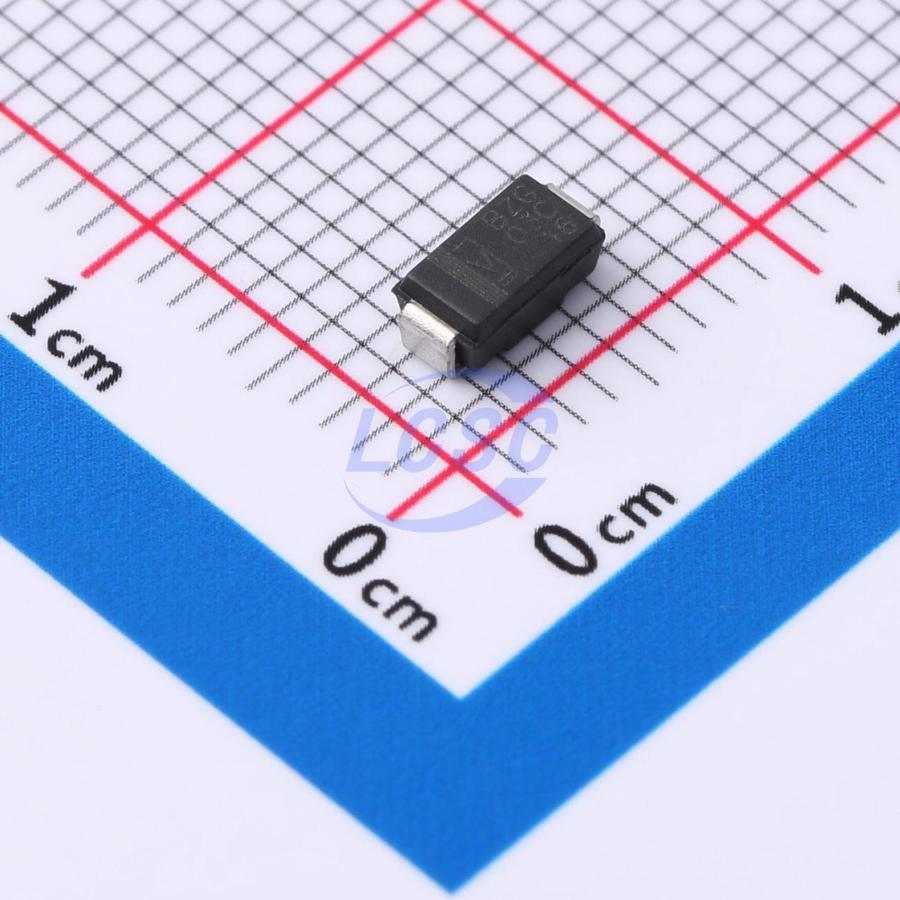

BZG03C16-M3-08
Zener Diode Independent 16V 3W Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE ZENER 16V 3W SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG03C16-M3-08
- Store part #
- C5224074
- Package / case
- SMA(DO-214AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,821 in stock
#C5224074
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.54 | ₹68.54 |
| 10+ | ₹53.97 | ₹539.70 |
| 30+ | ₹47.88 | ₹1,436.40 |
| 100+ | ₹40.26 | ₹4,026.00 |
| 500+ | ₹36.78 | ₹18,390.00 |
| 1,500+ | ₹32.86 | ₹49,290.00 |
1 × ₹68.54
₹68.54
excl. GST
₹80.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG03C16-M3-08
₹68.54 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@12V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 15.3V~17.1V
- Zener Voltage(Nom)
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.125 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 10 V to 270 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
- Base P/NHM3 - halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMA3Z16A#C5161114ZHIDE · SMA | ZHIDE | SMA | 50 | ₹13.71 · 50 in stock | View |
 | 1SMA4745A#C22385441GOODWORK · DO-214AC(SMA) | GOODWORK | DO-214AC(SMA) | 1,740 | ₹4.50 · 1,740 in stock | View |
 | SMAZ16-13-F#C155528DIODES · SMA | DIODES | SMA | 4,790 | ₹28.43 · 4,790 in stock | View |
 | SMAZ16-MS#C22459350MSKSEMI · SMA | MSKSEMI | SMA | 1,410 | ₹9.64 · 1,410 in stock | View |
 | 1SMA4745A#C22449117BLUE ROCKET · SMA(DO-214AC) | BLUE ROCKET | SMA(DO-214AC) | 4,100 | ₹6.09 · 4,100 in stock | View |
