VISHAYDatasheet (PDF)

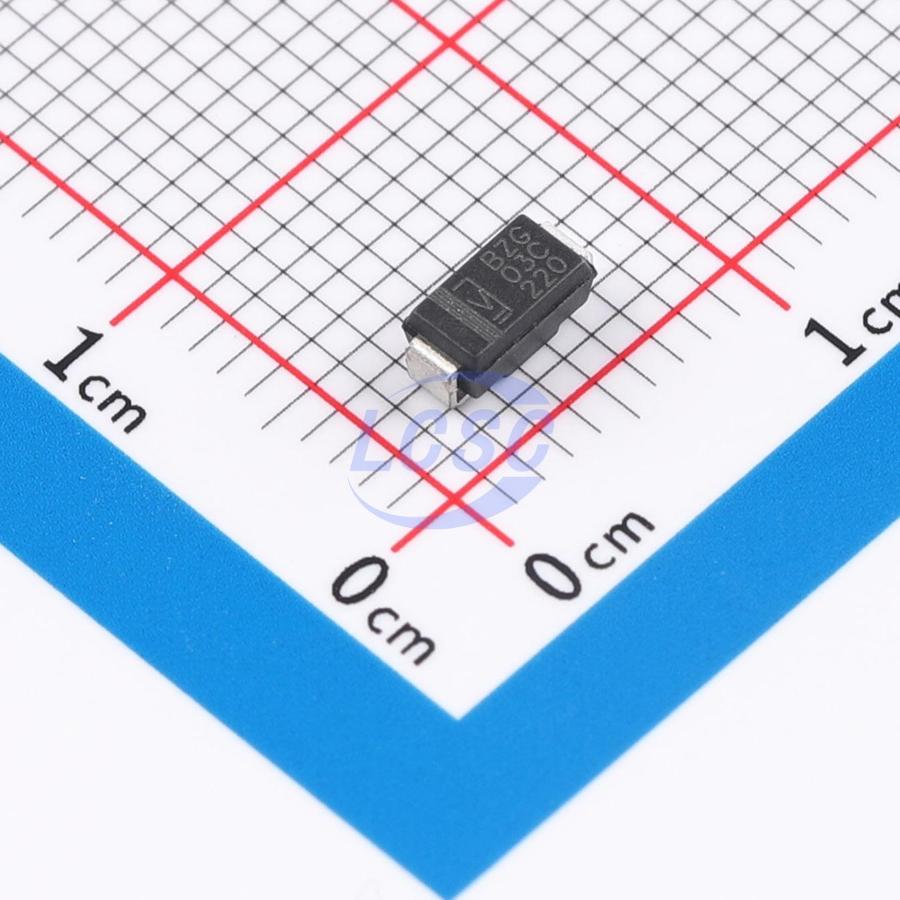

BZG03C220-HM3-08
Zener Diode Independent 220V 3W Surface Mount DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
DIODE ZENER 220V 3W DO-214AC(SMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG03C220-HM3-08
- Store part #
- C5565763
- Package / case
- DO-214AC(SMA)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
66 in stock
#C5565763
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.11 | ₹69.11 |
| 10+ | ₹67.59 | ₹675.90 |
| 30+ | ₹66.72 | ₹2,001.60 |
| 100+ | ₹65.63 | ₹6,563.00 |
1 × ₹69.11
₹69.11
excl. GST
₹81.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG03C220-HM3-08
₹69.11 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@160V
- Impedance(Zzt)
- 750Ω
- Zener Voltage(Range)
- 208V~233V
- Zener Voltage(Nom)
- 220V
- Impedance(Zzk)
- 15Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 10 V to 270 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
- Base P/NHM3 - halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMA4772A#C5455791XCH · SMA | XCH | SMA | 340 | ₹8.11 · 340 in stock | View |
 | 1SMA4772A-MS#C7528870MSKSEMI · DO-214AC(SMA) | MSKSEMI | DO-214AC(SMA) | 11,420 | ₹4.19 · 11,420 in stock | View |
 | SMA2Z220A#C55073111YFW · SMA | YFW | SMA | 50 | ₹9.63 · 50 in stock | View |
 | SMA2Z220A#C7440738XCH · SMA | XCH | SMA | 1,290 | ₹9.79 · 1,290 in stock | View |
 | BZG03C200-M3-08#C2979789VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 865 | ₹38.14 · 865 in stock | View |
