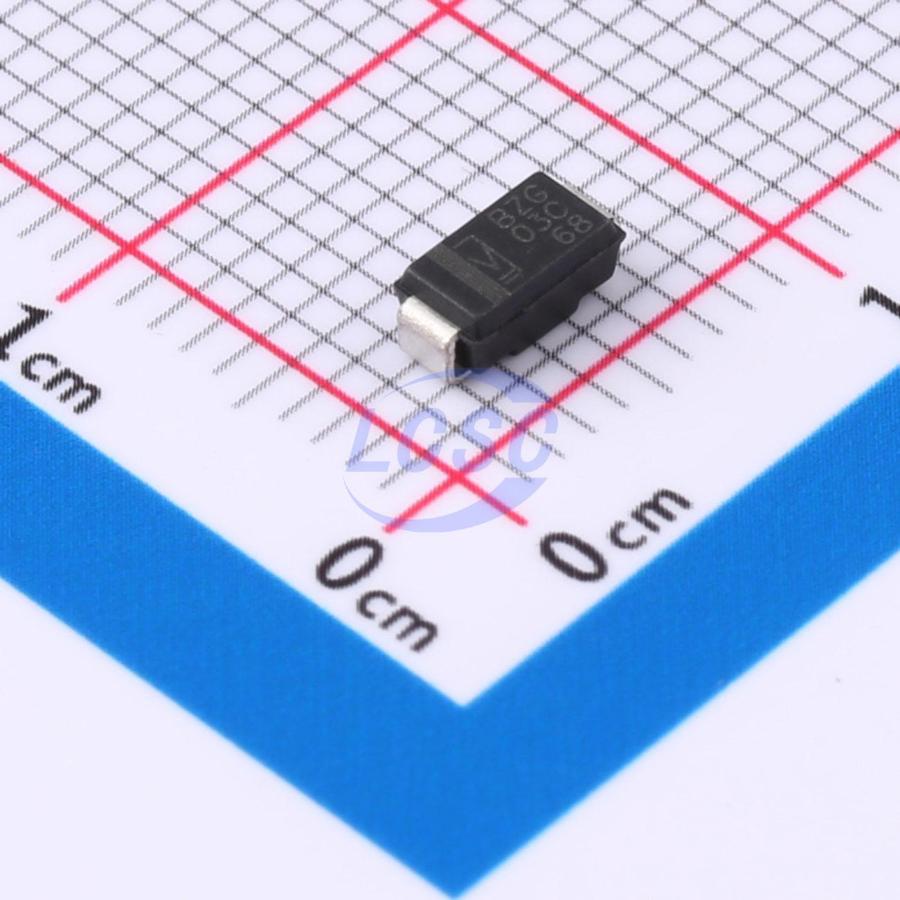

BZG03C68-HM3-08
Zener Diode Independent 68V 3W Surface Mount DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
DIODE ZENER 68V 3W DO-214AC(SMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG03C68-HM3-08
- Store part #
- C5565769
- Package / case
- DO-214AC(SMA)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
192 in stock
#C5565769
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.61 | ₹55.61 |
| 10+ | ₹42.97 | ₹429.70 |
| 30+ | ₹37.71 | ₹1,131.30 |
| 100+ | ₹30.97 | ₹3,097.00 |
| 500+ | ₹28.02 | ₹14,010.00 |
| 1,500+ | ₹26.34 | ₹39,510.00 |
1 × ₹55.61
₹55.61
excl. GST
₹65.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG03C68-HM3-08
₹55.61 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 64V~72V
- Zener Voltage(Nom)
- 68V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.124 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 10 V to 270 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
- Base P/NHM3 - halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMA4760A#C4154533TWGMC · SMA(DO-214AC) | TWGMC | SMA(DO-214AC) | 3,640 | ₹5.20 · 3,640 in stock | View |
 | 1SMA4760AG#C433993Shikues · SMA | Shikues | SMA | 5,050 | ₹5.20 · 5,050 in stock | View |
 | 1SMA4760A#C438378Jingdao Microelectronics · SMA | Jingdao Microelectronics | SMA | 4,500 | ₹4.62 · 4,500 in stock | View |
 | 1SMA4760A#C47089152GOODWORK · SMA | GOODWORK | SMA | 1,880 | ₹4.51 · 1,880 in stock | View |
 | TP1SMA5945BT3G#C49274805TECH PUBLIC · SMA | TECH PUBLIC | SMA | 2,890 | ₹9.42 · 2,890 in stock | View |
