VISHAYDatasheet (PDF)

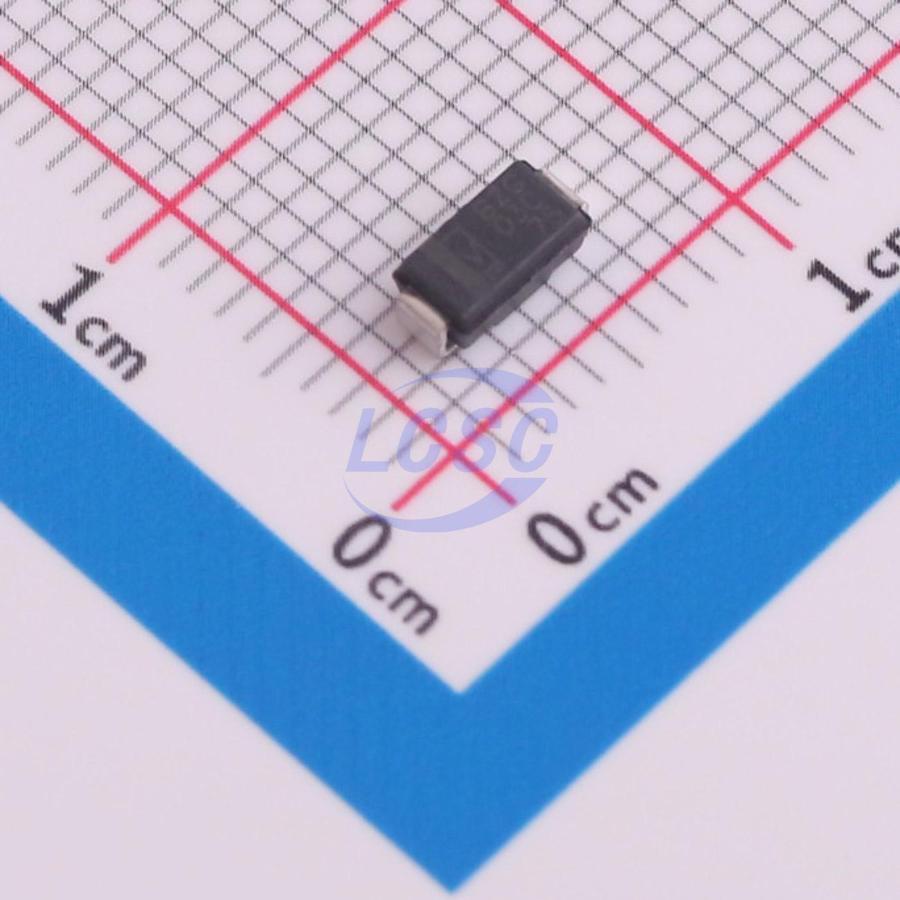

BZG03C75-HM3-08
Zener Diode Independent 75V 3W Surface Mount DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
DIODE ZENER 75V 3W DO-214AC(SMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG03C75-HM3-08
- Store part #
- C7093236
- Package / case
- DO-214AC(SMA)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,684 in stock
#C7093236
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.90 | ₹48.90 |
| 10+ | ₹37.81 | ₹378.10 |
| 30+ | ₹33.25 | ₹997.50 |
| 100+ | ₹27.39 | ₹2,739.00 |
| 500+ | ₹24.78 | ₹12,390.00 |
| 1,500+ | ₹23.03 | ₹34,545.00 |
1 × ₹48.90
₹48.90
excl. GST
₹57.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG03C75-HM3-08
₹48.90 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 1uA@56V
- Impedance(Zzt)
- 100Ω
- Zener Voltage(Range)
- 70V~79V
- Zener Voltage(Nom)
- 75V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 10 V to 270 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
- Base P/NHM3 - halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZG03C75-M3-08#C5137026VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 273 | ₹37.94 · 273 in stock | View |
 | 1SMA4761A#C4154534TWGMC · SMA(DO-214AC) | TWGMC | SMA(DO-214AC) | 440 | ₹5.28 · 440 in stock | View |
 | 1SMA4761AG#C433994Shikues · SMA | Shikues | SMA | 4,760 | ₹5.58 · 4,760 in stock | View |
 | 1SMA4761A#C438379Jingdao Microelectronics · SMA | Jingdao Microelectronics | SMA | 3,280 | ₹4.46 · 3,280 in stock | View |
 | 1SMA4761A#C5353114FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 4,700 | ₹4.66 · 4,700 in stock | View |
