VISHAYDatasheet (PDF)

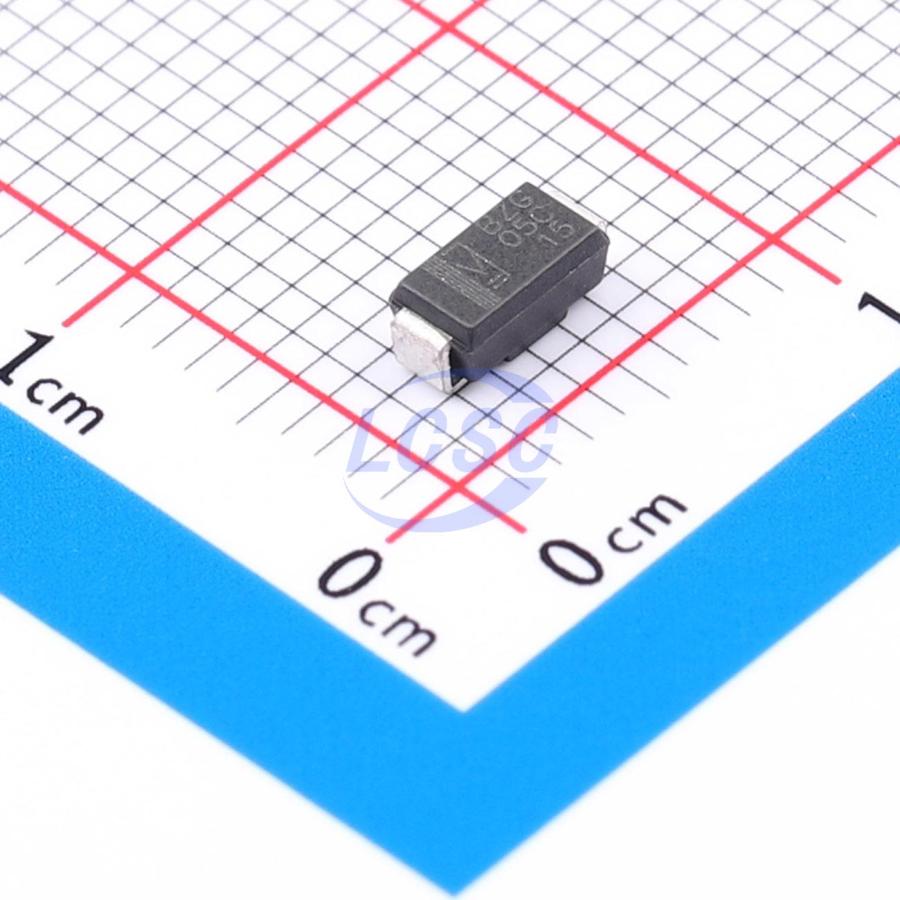

BZG05C15-HM3-08
1 Independent 13.8V~15.6V 15V DO-214AC(SMA) Single Zener Diodes RoHS
DO-214AC(SMA)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG05C15-HM3-08
- Store part #
- C5605028
- Package / case
- DO-214AC(SMA)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
166 in stock
#C5605028
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.44 | ₹155.44 |
| 10+ | ₹129.83 | ₹1,298.30 |
| 30+ | ₹115.93 | ₹3,477.90 |
| 100+ | ₹100.08 | ₹10,008.00 |
| 500+ | ₹93.14 | ₹46,570.00 |
| 1,500+ | ₹89.88 | ₹1,34,820.00 |
1 × ₹155.44
₹155.44
excl. GST
₹183.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG05C15-HM3-08
₹155.44 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 1.25W
- Reverse Leakage Current (Ir)
- 500nA@11V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 13.8V~15.6V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 15Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.114 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 3.3 V to 100 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- halogen-free, RoHS-compliant, and commercial grade
- halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAZ15-TP#C49274892TECH PUBLIC · SMA | TECH PUBLIC | SMA | 4,610 | ₹8.51 · 4,610 in stock | View |
 | SMA4744A#C22386118DOWO · SMA | DOWO | SMA | 5,120 | ₹3.31 · 5,120 in stock | View |
 | SMA4744A#C2683705ZHIDE · SMA | ZHIDE | SMA | 2,920 | ₹8.10 · 2,920 in stock | View |
 | SMA2Z15A#C7435354XCH · SMA | XCH | SMA | 470 | ₹9.88 · 470 in stock | View |
 | 1SMA4744A#C173484MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 49,310 | ₹6.91 · 49,310 in stock | View |
