VISHAYDatasheet (PDF)

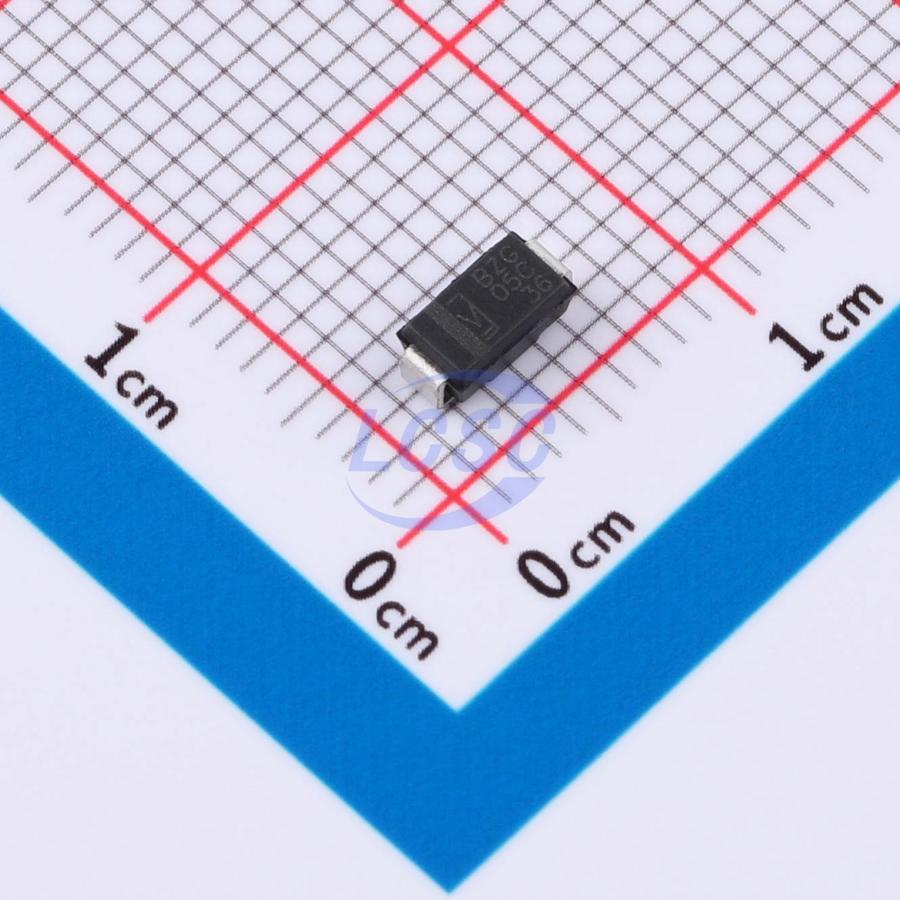

BZG05C36-HM3-08
1 Independent 34V~38V 36V DO-214AC(SMA) Single Zener Diodes RoHS
DO-214AC(SMA)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG05C36-HM3-08
- Store part #
- C6522514
- Package / case
- DO-214AC(SMA)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C6522514
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.40 | ₹82.40 |
| 10+ | ₹67.22 | ₹672.20 |
| 30+ | ₹59.85 | ₹1,795.50 |
| 100+ | ₹52.26 | ₹5,226.00 |
| 500+ | ₹47.92 | ₹23,960.00 |
| 1,500+ | ₹45.54 | ₹68,310.00 |
1 × ₹82.40
₹82.40
excl. GST
₹97.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG05C36-HM3-08
₹82.40 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 1.25W
- Reverse Leakage Current (Ir)
- 500nA@27V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 34V~38V
- Zener Voltage(Nom)
- 36V
- Impedance(Zzk)
- 40Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.133 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 3.3 V to 100 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- halogen-free, RoHS-compliant, and commercial grade
- halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZG05C36#C3014339EIC · DO-214AC(SMA) | EIC | DO-214AC(SMA) | 3,096 | ₹17.11 · 3,096 in stock | View |
 | SMAZ36-TP#C49274875TECH PUBLIC · SMA | TECH PUBLIC | SMA | 5,000 | ₹7.95 · 5,000 in stock | View |
 | SMAZ36-13-F#C150508DIODES · SMA | DIODES | SMA | 4,675 | ₹29.85 · 4,675 in stock | View |
 | 1SMA5938BT3G-MS#C18547740MSKSEMI · SMA | MSKSEMI | SMA | 340 | ₹6.87 · 340 in stock | View |
 | 1SMA5938BT3G#C238873onsemi · SMA | onsemi | SMA | 5,125 | ₹22.93 · 5,125 in stock | View |
