VISHAYDatasheet (PDF)

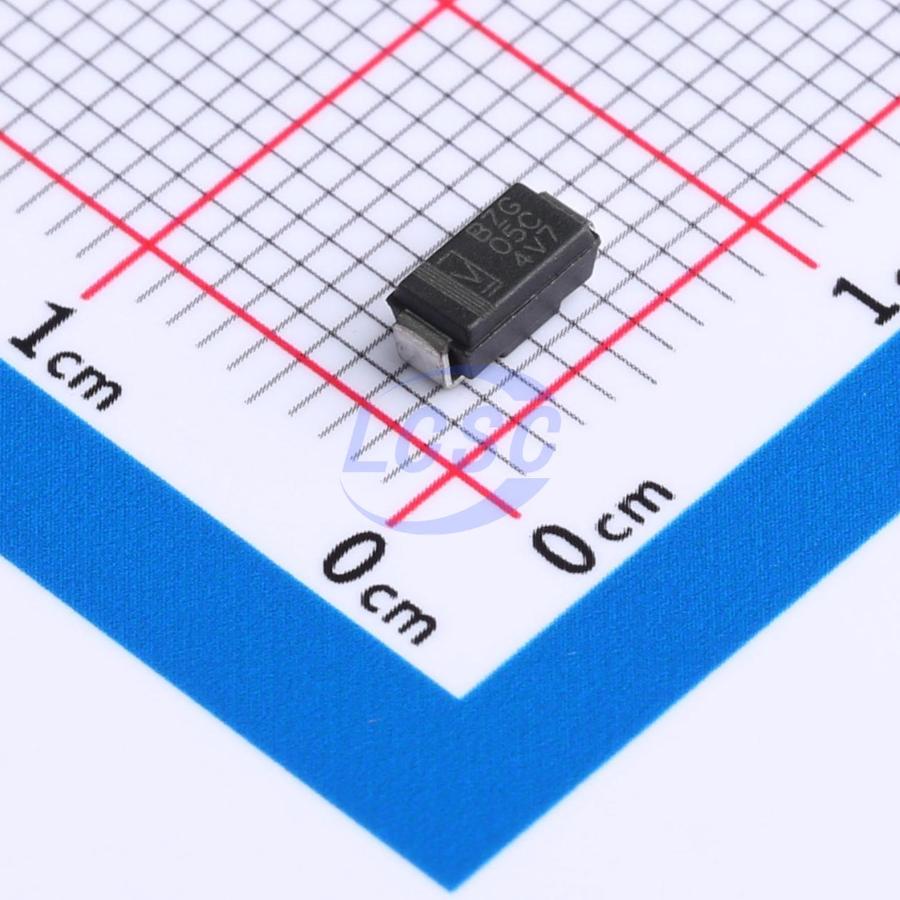

BZG05C4V7-M3-08
Zener Diode Independent 4.7V 1250mW Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE ZENER 4.7V 1250mW SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG05C4V7-M3-08
- Store part #
- C3741542
- Package / case
- SMA(DO-214AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C3741542
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.27 | ₹251.35 |
| 50+ | ₹39.93 | ₹1,996.50 |
| 150+ | ₹35.50 | ₹5,325.00 |
| 1,500+ | ₹26.67 | ₹40,005.00 |
| 3,000+ | ₹24.21 | ₹72,630.00 |
| 4,500+ | ₹22.73 | ₹1,02,285.00 |
5 × ₹50.27
₹251.35
excl. GST
₹296.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG05C4V7-M3-08
₹251.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 1.25W
- Reverse Leakage Current (Ir)
- 1uA@3V
- Impedance(Zzt)
- 13Ω
- Zener Voltage(Range)
- 4.4V~5V
- Zener Voltage(Nom)
- 4.7V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.122 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 3.3 V to 100 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- halogen-free, RoHS-compliant, and commercial grade
- halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMA2Z4.7A#C5455798XCH · SMA | XCH | SMA | 660 | ₹9.80 · 660 in stock | View |
 | 1SMA5917BT3G-MS#C18547725MSKSEMI · SMA(DO-214AC) | MSKSEMI | SMA(DO-214AC) | 1,510 | ₹7.46 · 1,510 in stock | View |
 | 1SMA5917BT3G#C72594onsemi · SMA | onsemi | SMA | 4,265 | ₹23.31 · 4,265 in stock | View |
 | 1SMA5917A#C5293617JSCJ · SMAG | JSCJ | SMAG | 1,730 | ₹11.17 · 1,730 in stock | View |
 | SMA4732A#C5161020ZHIDE · SMA | ZHIDE | SMA | 430 | ₹10.13 · 430 in stock | View |
