VISHAYDatasheet (PDF)

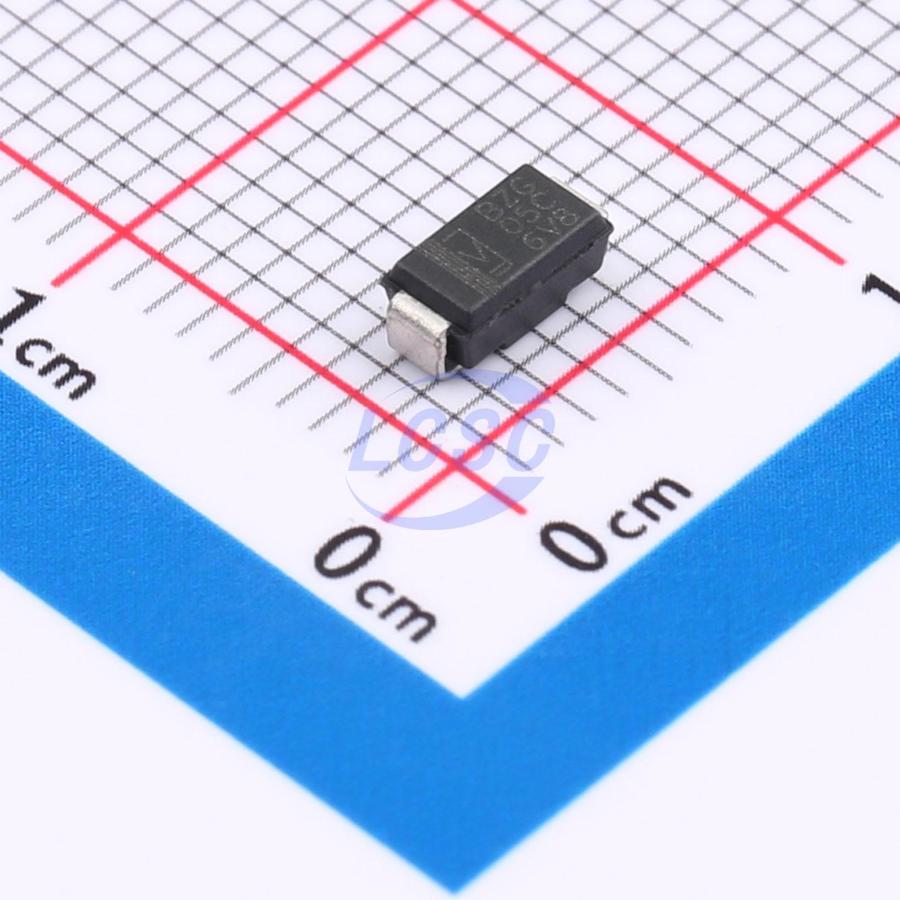

BZG05C6V8-M3-08
Zener Diode Independent 6.8V 1250mW Surface Mount DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
DIODE ZENER 6.8V 1250mW DO-214AC(SMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- BZG05C6V8-M3-08
- Store part #
- C6870776
- Package / case
- DO-214AC(SMA)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
174 in stock
#C6870776
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.65 | ₹72.65 |
| 10+ | ₹57.68 | ₹576.80 |
| 30+ | ₹51.17 | ₹1,535.10 |
| 100+ | ₹43.16 | ₹4,316.00 |
| 500+ | ₹39.69 | ₹19,845.00 |
| 1,500+ | ₹37.52 | ₹56,280.00 |
1 × ₹72.65
₹72.65
excl. GST
₹85.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZG05C6V8-M3-08
₹72.65 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 1.25W
- Reverse Leakage Current (Ir)
- 1uA@1V
- Impedance(Zzt)
- 3.5Ω
- Zener Voltage(Range)
- 6.4V~7.2V
- Zener Voltage(Nom)
- 6.8V
- Impedance(Zzk)
- 300Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
Applications
- Voltage stabilization
Key features
- High reliability
- Voltage range 3.3 V to 100 V
- Fits onto 5 mm SMD footpads
- Wave and reflow solderable
- AEC-Q101 qualified available
- halogen-free, RoHS-compliant, and commercial grade
- halogen-free, RoHS-compliant, and AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZG05C6V8-HM3-08#C4555434VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 110 | ₹45.22 · 110 in stock | View |
 | SMAZ6V8-TP#C49274884TECH PUBLIC · SMA | TECH PUBLIC | SMA | 1,000 | ₹8.68 · 1,000 in stock | View |
 | 1SMA4736A#C5128839Huixin · DO-214AC(SMA) | Huixin | DO-214AC(SMA) | 180 | ₹22.82 · 180 in stock | View |
 | 1SMA4736A#C22449605GOODWORK · SMA | GOODWORK | SMA | 1,940 | ₹4.41 · 1,940 in stock | View |
 | 1SMA4736A#C23066826PAKER · SMA | PAKER | SMA | 20 | ₹4.41 · 20 in stock | View |
