VISHAYDatasheet (PDF)

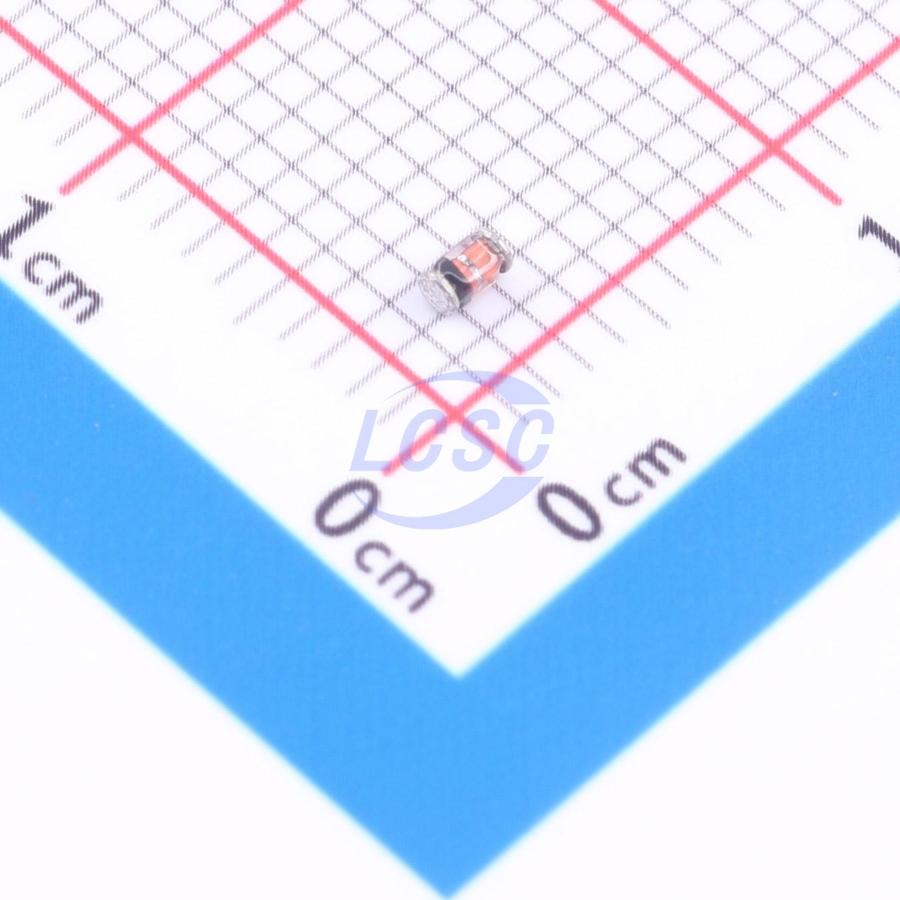

BZM55C2V4-TR
1 Independent 2.28V~2.56V 2.4V SOD-80 Single Zener Diodes RoHS
SOD-80ROHS3 CompliantActive
DIODE ZENER 2.4V 500mW SOD-80
- Manufacturer
- VISHAY
- Manufacturer part #
- BZM55C2V4-TR
- Store part #
- C3739430
- Package / case
- SOD-80
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
800 in stock
#C3739430
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.31 | ₹93.10 |
| 100+ | ₹7.41 | ₹741.00 |
| 300+ | ₹6.46 | ₹1,938.00 |
| 2,500+ | ₹5.74 | ₹14,350.00 |
| 5,000+ | ₹5.16 | ₹25,800.00 |
| 10,000+ | ₹4.88 | ₹48,800.00 |
10 × ₹9.31
₹93.10
excl. GST
₹109.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZM55C2V4-TR
₹93.10 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50uA@1V
- Impedance(Zzt)
- 1Ω
- Zener Voltage(Range)
- 2.28V~2.56V
- Zener Voltage(Nom)
- 2.4V
- Impedance(Zzk)
- 85Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.05 g
Overview
Applications
- Voltage stabilization
Key features
- Saving space
- Hermetic sealed parts
- Electrical data identical with the devices BZT55..series, TZM..series
- Fits onto SOD-323
- Very sharp reverse characteristic
- Low reverse current level
- Very high stability
- Low noise
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55C2V4#C545383LGE · LL-34 | LGE | LL-34 | 3,450 | ₹2.84 · 3,450 in stock | View |
 | ZMM2V4#C2891737YONGYUTAI · LL-34 | YONGYUTAI | LL-34 | 6,500 | ₹1.31 · 6,500 in stock | View |
 | ZMM2V4PF-M#C19190355ST(Semtech) · LL-34 | ST(Semtech) | LL-34 | 540 | ₹3.27 · 540 in stock | View |
 | ZMM2V4#C2857249JSMSEMI · LL-34 | JSMSEMI | LL-34 | 10,300 | ₹1.63 · 10,300 in stock | View |
 | BZV55C2V4#C2892609YONGYUTAI · LL-34 | YONGYUTAI | LL-34 | 2,440 | ₹2.21 · 2,440 in stock | View |
