VISHAYDatasheet (PDF)

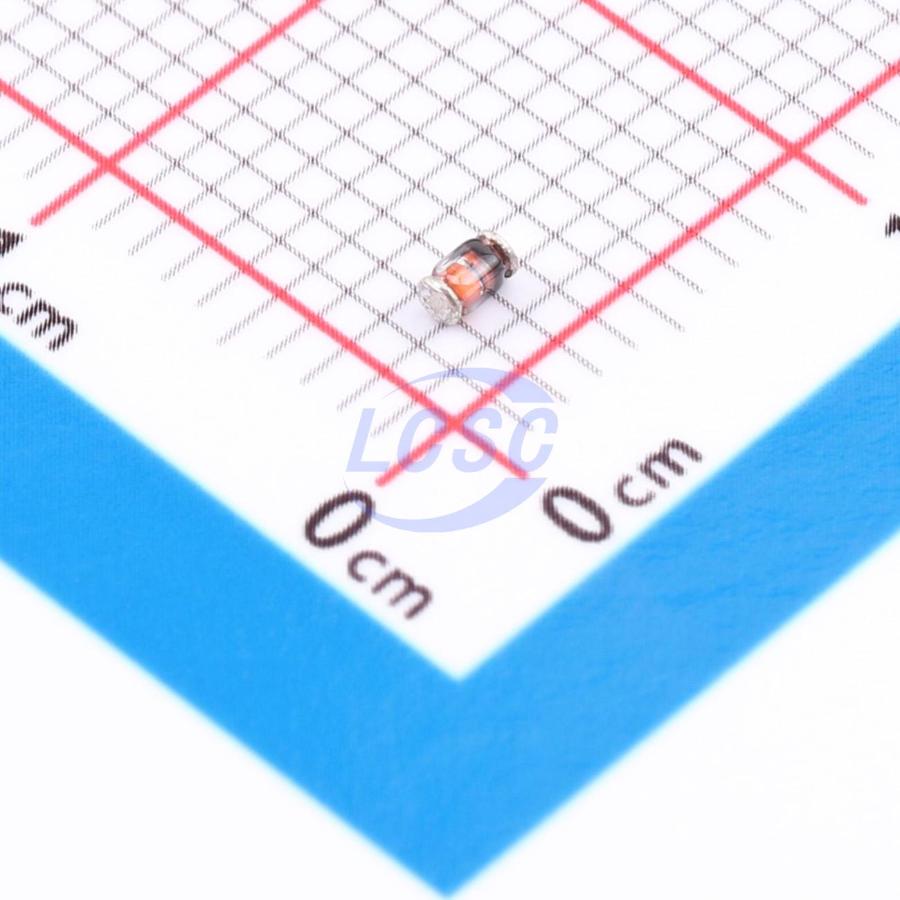

BZM55C30-TR
1 Independent 28V~32V 30V SOD-80 Single Zener Diodes RoHS
SOD-80ROHS3 CompliantActive
DIODE ZENER 30V 500mW SOD-80
- Manufacturer
- VISHAY
- Manufacturer part #
- BZM55C30-TR
- Store part #
- C3741263
- Package / case
- SOD-80
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
290 in stock
#C3741263
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.48 | ₹77.40 |
| 50+ | ₹15.23 | ₹761.50 |
| 150+ | ₹15.06 | ₹2,259.00 |
| 500+ | ₹14.88 | ₹7,440.00 |
5 × ₹15.48
₹77.40
excl. GST
₹91.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZM55C30-TR
₹77.40 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@22V
- Impedance(Zzt)
- 22Ω
- Zener Voltage(Range)
- 28V~32V
- Zener Voltage(Nom)
- 30V
- Impedance(Zzk)
- 80Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Applications
- Voltage stabilization
Key features
- Saving space
- Hermetic sealed parts
- Electrical data identical with the devices BZT55..series, TZM..series
- Fits onto SOD-323
- Very sharp reverse characteristic
- Low reverse current level
- Very high stability
- Low noise
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55C30#C545371LGE · LL-34(Mini-MELF) | LGE | LL-34(Mini-MELF) | 2,950 | ₹2.18 · 2,950 in stock | View |
 | BZV55C30-MS#C20627168MSKSEMI · LL-34 | MSKSEMI | LL-34 | 1,350 | ₹2.16 · 1,350 in stock | View |
 | ZMM30V#C2857247JSMSEMI · LL-34 | JSMSEMI | LL-34 | 24,200 | ₹2.10 · 24,200 in stock | View |
 | ZMM30V#C41414110YONGYUTAI · LL-34 | YONGYUTAI | LL-34 | 450 | ₹1.60 · 450 in stock | View |
 | ZMM30PF-M#C7497496ST(Semtech) · LL-34 | ST(Semtech) | LL-34 | 3,450 | ₹2.32 · 3,450 in stock | View |
