NexperiaDatasheet (PDF)

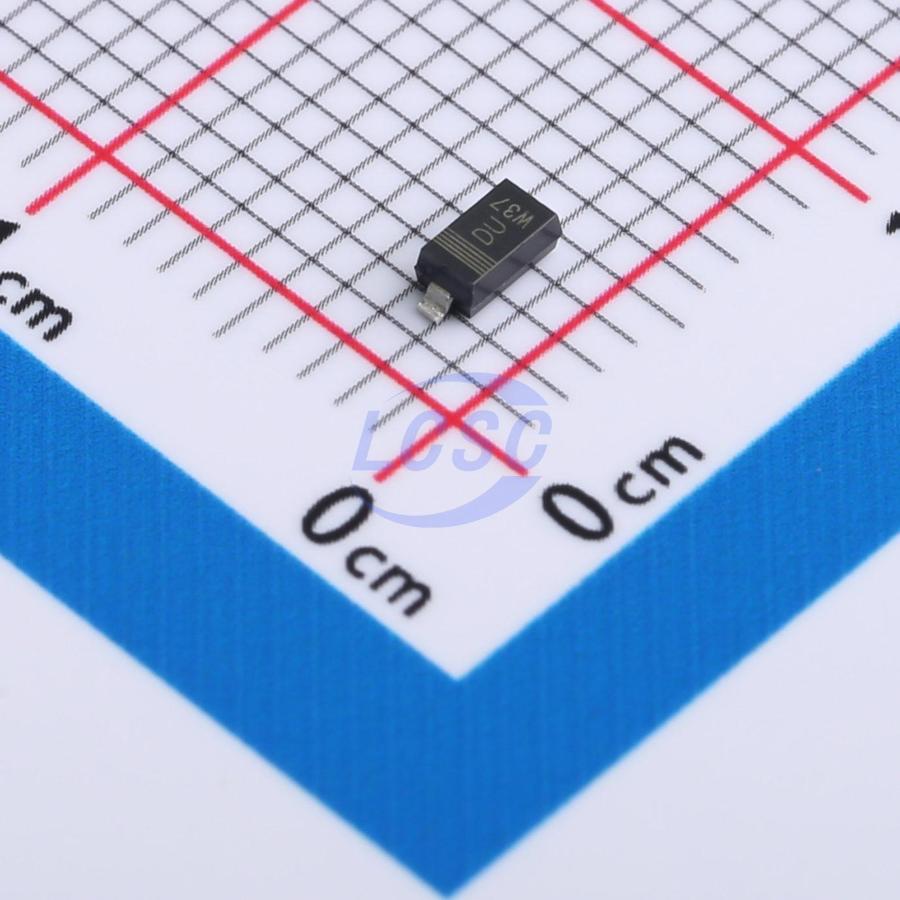

BZT52-B18X
Zener Diode 1 Independent 18V 590mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 18V 590mW SOD-123
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-B18X
- Store part #
- C550185
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,800 in stock
#C550185
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.17 | ₹103.40 |
| 200+ | ₹4.00 | ₹800.00 |
| 600+ | ₹3.35 | ₹2,010.00 |
| 3,000+ | ₹2.95 | ₹8,850.00 |
| 9,000+ | ₹2.62 | ₹23,580.00 |
| 21,000+ | ₹2.43 | ₹51,030.00 |
20 × ₹5.17
₹103.40
excl. GST
₹122.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52-B18X
₹103.40 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 590mW
- Reverse Leakage Current (Ir)
- 50nA@12.6V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 17.6V~18.4V
- Zener Voltage(Nom)
- 18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.029 g
Overview
General- purpose Zener diodes in a SOD123 small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: Ptot ≤ 590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- Tight tolerance: ±2%
