NexperiaDatasheet (PDF)

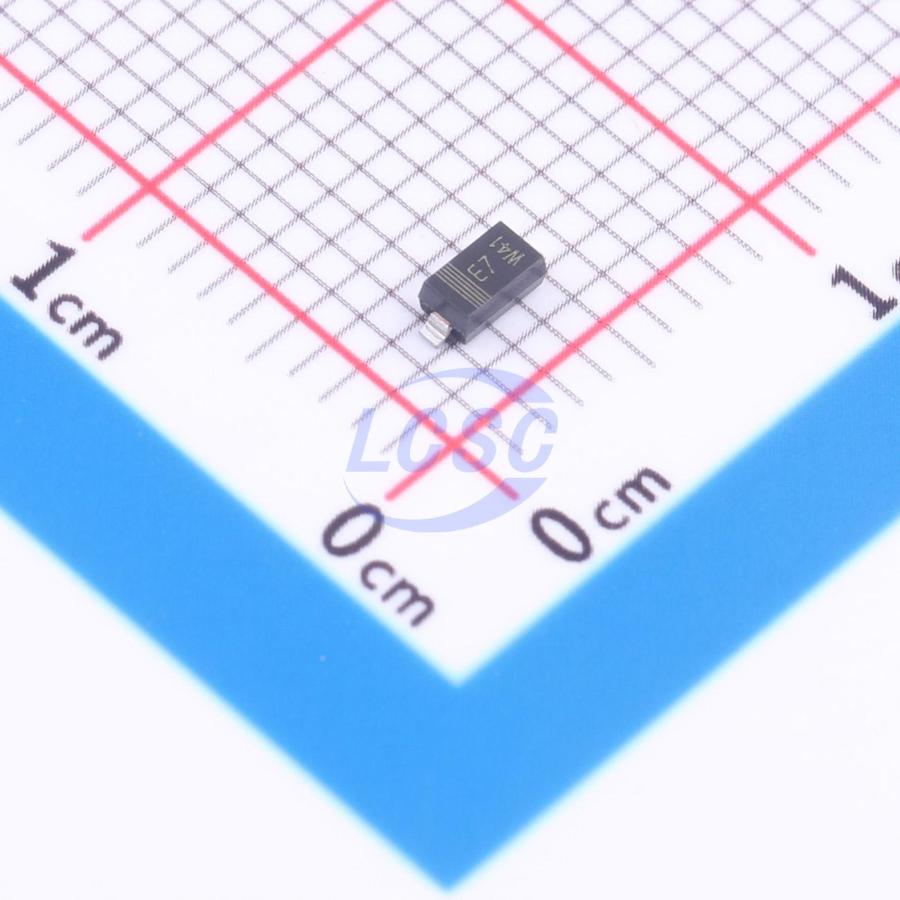

BZT52-B47J
1 Independent 46.1V~47.9V 47V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-B47J
- Store part #
- C550216
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C550216
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.55 | ₹82.75 |
| 50+ | ₹16.18 | ₹809.00 |
| 150+ | ₹15.94 | ₹2,391.00 |
| 500+ | ₹15.69 | ₹7,845.00 |
5 × ₹16.55
₹82.75
excl. GST
₹97.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52-B47J
₹82.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 590mW
- Reverse Leakage Current (Ir)
- 50nA@32.9V
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 46.1V~47.9V
- Zener Voltage(Nom)
- 47V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
General- purpose Zener diodes in a SOD123 small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: Ptot ≤ 590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- Tight tolerance: ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM1Z47B#C438322Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 650 | ₹1.93 · 650 in stock | View |
 | MM1Z47BW#C4749066Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 1,200 | ₹2.46 · 1,200 in stock | View |
 | MM1ZB47#C5128825Huixin · SOD-123 | Huixin | SOD-123 | 4,960 | ₹3.68 · 4,960 in stock | View |
 | BZT52-B47_R1_00001#C4402950PANJIT · SOD-123 | PANJIT | SOD-123 | 1,260 | ₹3.88 · 1,260 in stock | View |
 | BZT52B47#C699128YANGJIE · SOD-123 | YANGJIE | SOD-123 | 2,500 | ₹3.66 · 2,500 in stock | View |
