NexperiaDatasheet (PDF)

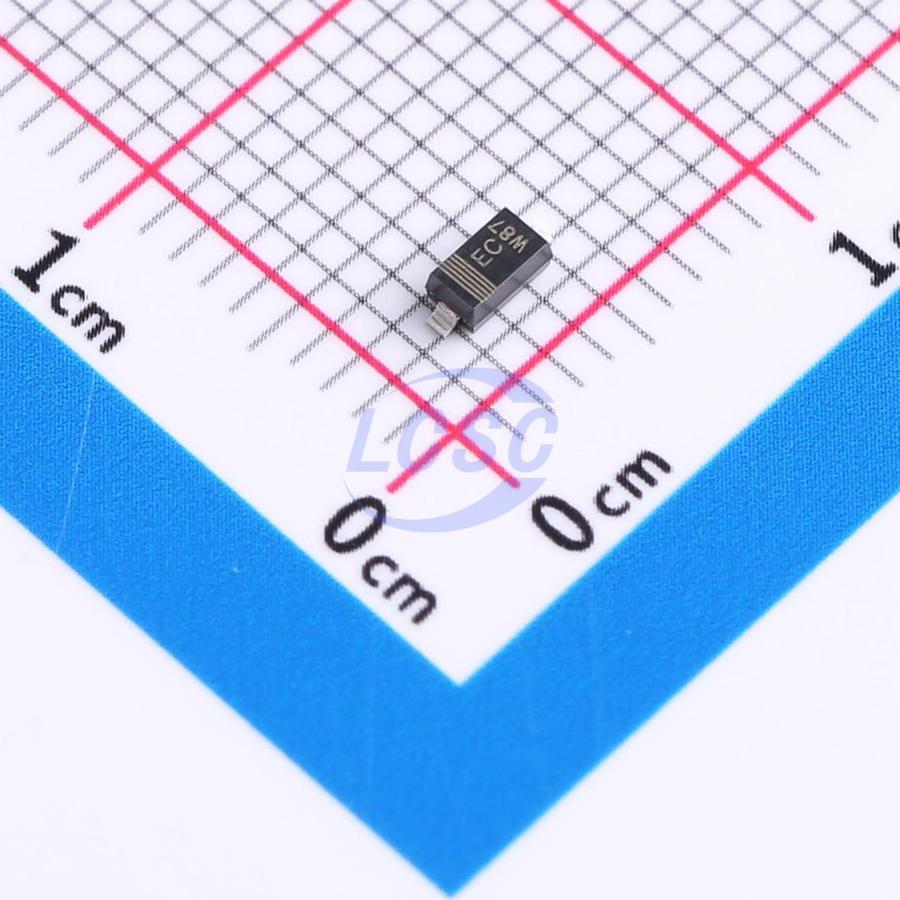

BZT52-B75X
Zener Diode 75V 590mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 75V 590mW SOD-123
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-B75X
- Store part #
- C550239
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
465 in stock
#C550239
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.45 | ₹52.25 |
| 50+ | ₹7.65 | ₹382.50 |
| 150+ | ₹6.46 | ₹969.00 |
| 500+ | ₹4.95 | ₹2,475.00 |
| 3,000+ | ₹4.29 | ₹12,870.00 |
| 6,000+ | ₹3.89 | ₹23,340.00 |
5 × ₹10.45
₹52.25
excl. GST
₹61.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52-B75X
₹52.25 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 590mW
- Reverse Leakage Current (Ir)
- 50nA@52.5V
- Impedance(Zzt)
- 175Ω
- Zener Voltage(Range)
- 73.5V~76.5V
- Zener Voltage(Nom)
- 75V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
General- purpose Zener diodes in a SOD123 small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: Ptot ≤ 590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- Tight tolerance: ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM1Z75W#C2856882JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 200 | ₹2.34 · 200 in stock | View |
 | MM1Z75B#C438326Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 350 | ₹2.02 · 350 in stock | View |
 | BZT52B75#C55073123YFW · SOD-123 | YFW | SOD-123 | 40 | ₹3.40 · 40 in stock | View |
 | MM1Z75BW#C55073124YFW · SOD-123 | YFW | SOD-123 | 40 | ₹3.40 · 40 in stock | View |
 | BZT52B75#C20600021YANGJIE · SOD-123 | YANGJIE | SOD-123 | 180 | ₹4.15 · 180 in stock | View |
