NexperiaDatasheet (PDF)

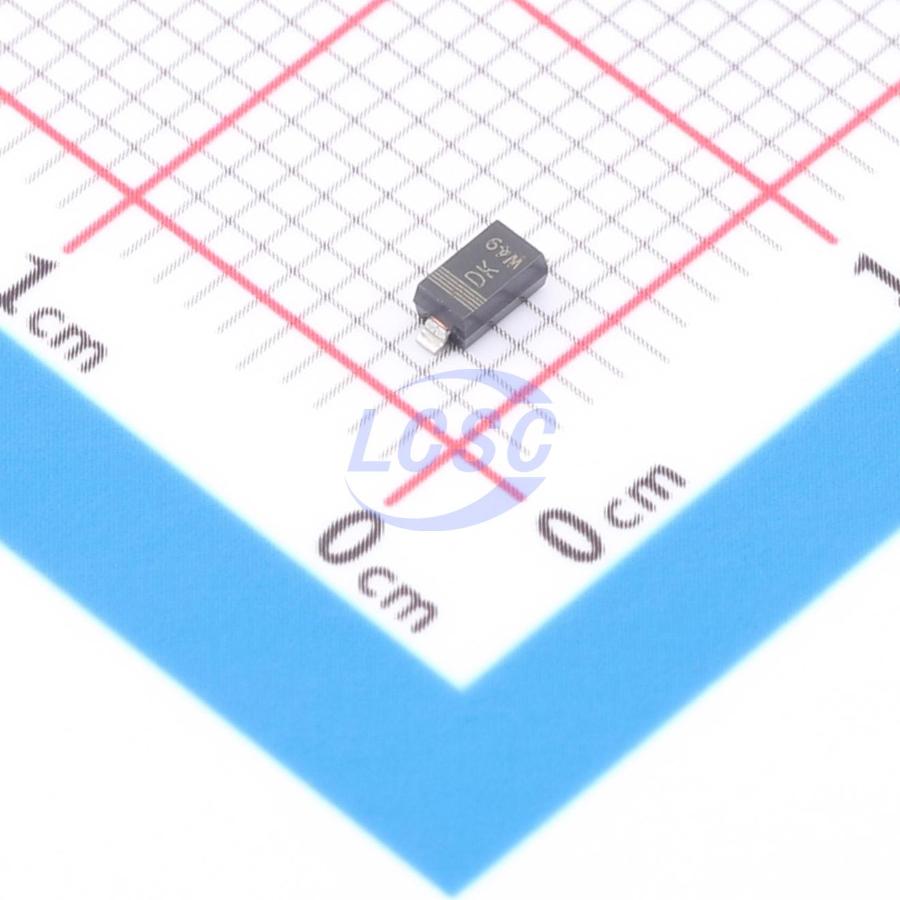

BZT52-B7V5J
1 Independent 7.35V~7.65V 7.5V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-B7V5J
- Store part #
- C550240
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
145 in stock
#C550240
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.83 | ₹84.15 |
| 50+ | ₹16.46 | ₹823.00 |
| 150+ | ₹16.21 | ₹2,431.50 |
| 500+ | ₹15.96 | ₹7,980.00 |
5 × ₹16.83
₹84.15
excl. GST
₹99.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52-B7V5J
₹84.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 590mW
- Reverse Leakage Current (Ir)
- 1uA@5V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 7.35V~7.65V
- Zener Voltage(Nom)
- 7.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
General- purpose Zener diodes in a SOD123 small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: Ptot ≤ 590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- Tight tolerance: ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM1Z7V5BW#C2856896JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 50 | ₹2.63 · 50 in stock | View |
 | MM1Z7V5BW#C3019267Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 1,350 | ₹1.88 · 1,350 in stock | View |
 | MM1Z7V5B#C382827Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 500 | ₹1.92 · 500 in stock | View |
 | BZT52B7V5#C5356489Shikues · SOD-123 | Shikues | SOD-123 | 650 | ₹2.41 · 650 in stock | View |
 | BZT52B7V5#C55068195R+O · SOD-123 | R+O | SOD-123 | 2,940 | ₹3.02 · 2,940 in stock | View |
