NexperiaDatasheet (PDF)

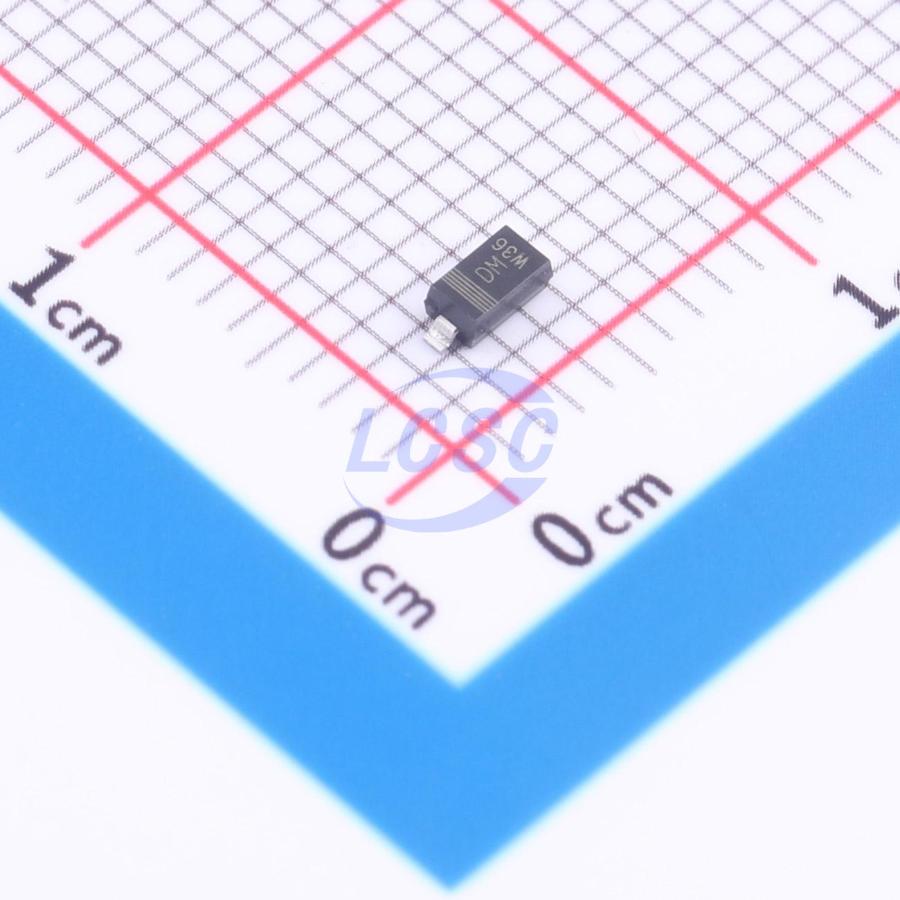

BZT52-B9V1J
1 Independent 8.92V~9.28V 9.1V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-B9V1J
- Store part #
- C550244
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C550244
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.63 | ₹98.15 |
| 50+ | ₹19.20 | ₹960.00 |
| 150+ | ₹18.91 | ₹2,836.50 |
| 500+ | ₹18.61 | ₹9,305.00 |
5 × ₹19.63
₹98.15
excl. GST
₹115.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52-B9V1J
₹98.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 590mW
- Reverse Leakage Current (Ir)
- 500nA@6V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 8.92V~9.28V
- Zener Voltage(Nom)
- 9.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.069 g
Overview
General- purpose Zener diodes in a SOD123 small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: Ptot ≤ 590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- Tight tolerance: ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZT52B9V1-E3-08#C6756042VISHAY · SOD-123 | VISHAY | SOD-123 | 1,835 | ₹12.49 · 1,835 in stock | View | |
 | MM1Z9V1BW#C2856898JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 100 | ₹2.32 · 100 in stock | View |
| MM1Z9V1BW#C42395061YFW · SOD-123 | YFW | SOD-123 | 3,000 | ₹3.74 · 3,000 in stock | View | |
 | MM1Z9V1B#C438309Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 200 | ₹2.18 · 200 in stock | View |
 | MM1Z9V1BW#C4749055Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 2,450 | ₹2.43 · 2,450 in stock | View |
