NexperiaDatasheet (PDF)

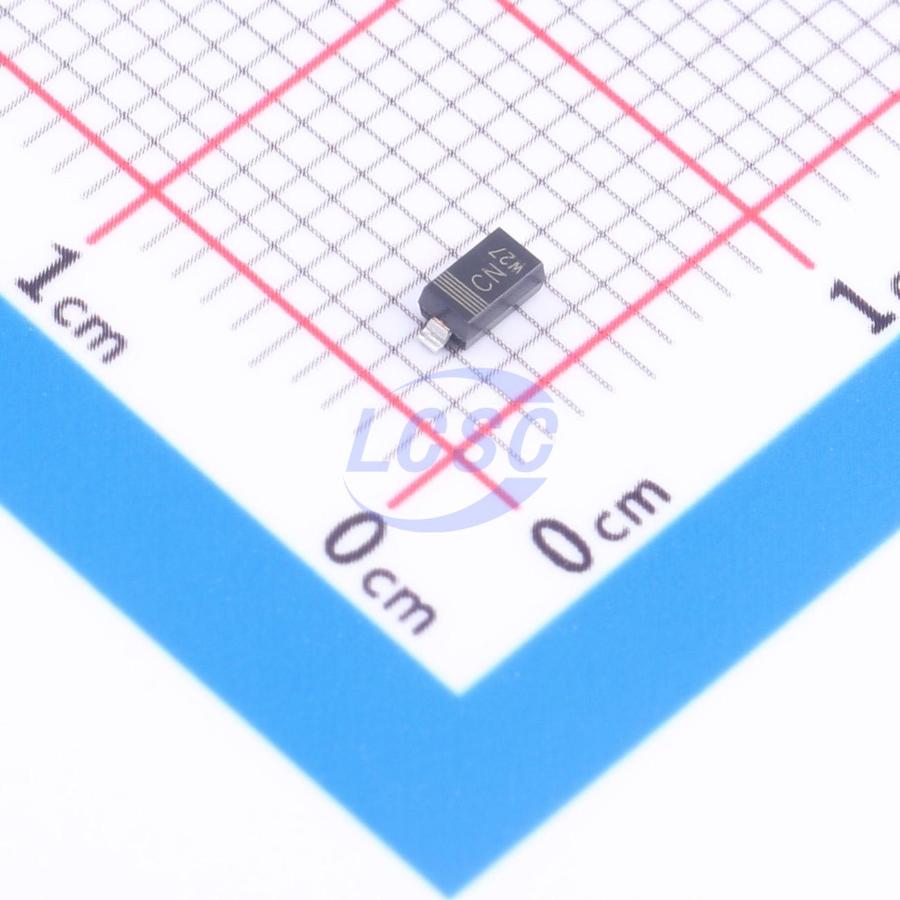

BZT52-C18J
1 Independent 16.8V~19.1V 17.95V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-C18J
- Store part #
- C550258
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
125 in stock
#C550258
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.76 | ₹83.80 |
| 50+ | ₹16.37 | ₹818.50 |
| 150+ | ₹16.09 | ₹2,413.50 |
| 500+ | ₹15.82 | ₹7,910.00 |
5 × ₹16.76
₹83.80
excl. GST
₹98.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52-C18J
₹83.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 50nA@12.6V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 16.8V~19.1V
- Zener Voltage(Nom)
- 17.95V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5248B#C2127JSCJ · SOD-123 | JSCJ | SOD-123 | 23,260 | ₹3.59 · 23,260 in stock | View |
 | MMSZ5248B#C21714209CBI · SOD-123 | CBI | SOD-123 | 1,250 | ₹1.98 · 1,250 in stock | View |
 | MMSZ4705#C2937218JSCJ · SOD-123 | JSCJ | SOD-123 | 1,400 | ₹4.17 · 1,400 in stock | View |
 | MMSZ4705#C51315456CBI · SOD-123 | CBI | SOD-123 | 1,300 | ₹1.10 · 1,300 in stock | View |
 | BZT52C18#C2827914Guangdong Hottech · SOD-123 | Guangdong Hottech | SOD-123 | 1,100 | ₹2.25 · 1,100 in stock | View |
