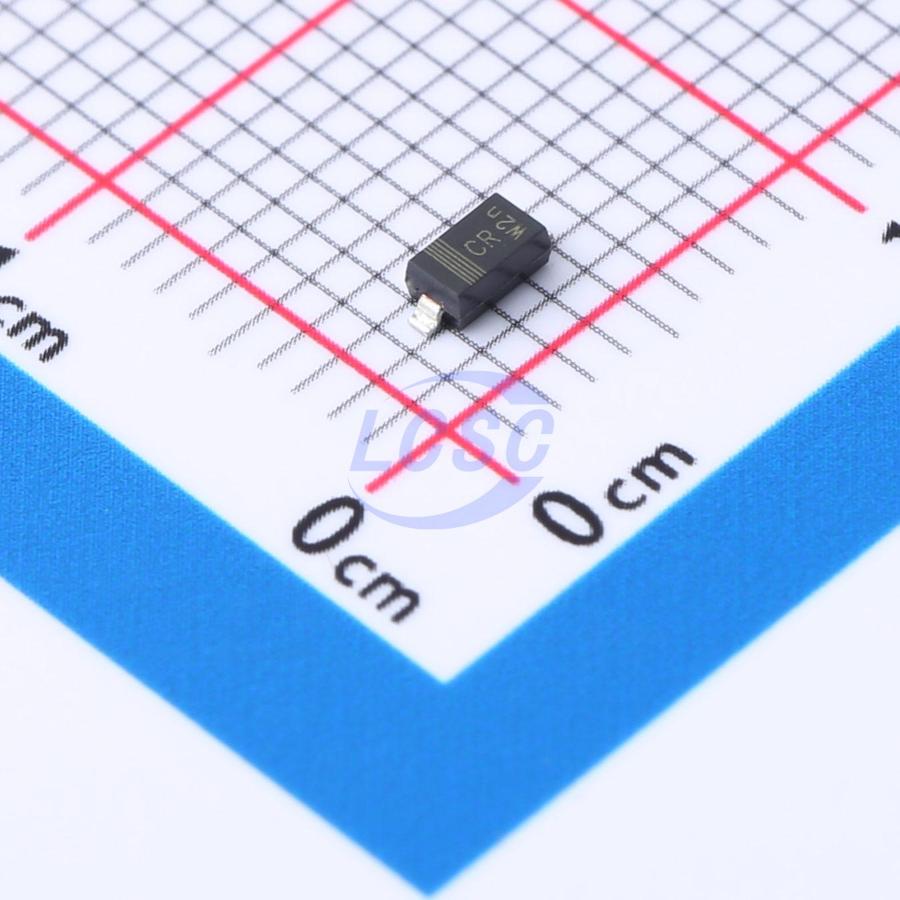

BZT52-C24X
Zener Diode 1 Independent 24.2V 590mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 24.2V 590mW SOD-123
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-C24X
- Store part #
- C550265
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
350 in stock
#C550265
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.78 | ₹57.80 |
| 100+ | ₹4.63 | ₹463.00 |
| 300+ | ₹4.05 | ₹1,215.00 |
| 3,000+ | ₹3.61 | ₹10,830.00 |
| 6,000+ | ₹3.27 | ₹19,620.00 |
| 9,000+ | ₹3.10 | ₹27,900.00 |
10 × ₹5.78
₹57.80
excl. GST
₹68.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52-C24X
₹57.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 590mW
- Reverse Leakage Current (Ir)
- 50nA@16.8V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 22.8V~25.6V
- Zener Voltage(Nom)
- 24.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52-B24J#C550190Nexperia · SOD-123 | Nexperia | SOD-123 | 55 | ₹10.70 · 55 in stock | View |
 | BZT52-B24X#C550191Nexperia · SOD-123 | Nexperia | SOD-123 | 2,950 | ₹17.00 · 2,950 in stock | View |
 | BZT52-C24-QX#C20235125Nexperia · SOD-123 | Nexperia | SOD-123 | 80 | ₹18.72 · 80 in stock | View |
 | BZT52C24#C5353046FOSAN · SOD-123 | FOSAN | SOD-123 | 5,800 | ₹1.53 · 5,800 in stock | View |
 | MMSZ24T1G#C236086onsemi · SOD-123 | onsemi | SOD-123 | 1,940 | ₹5.73 · 1,940 in stock | View |
