NexperiaDatasheet (PDF)

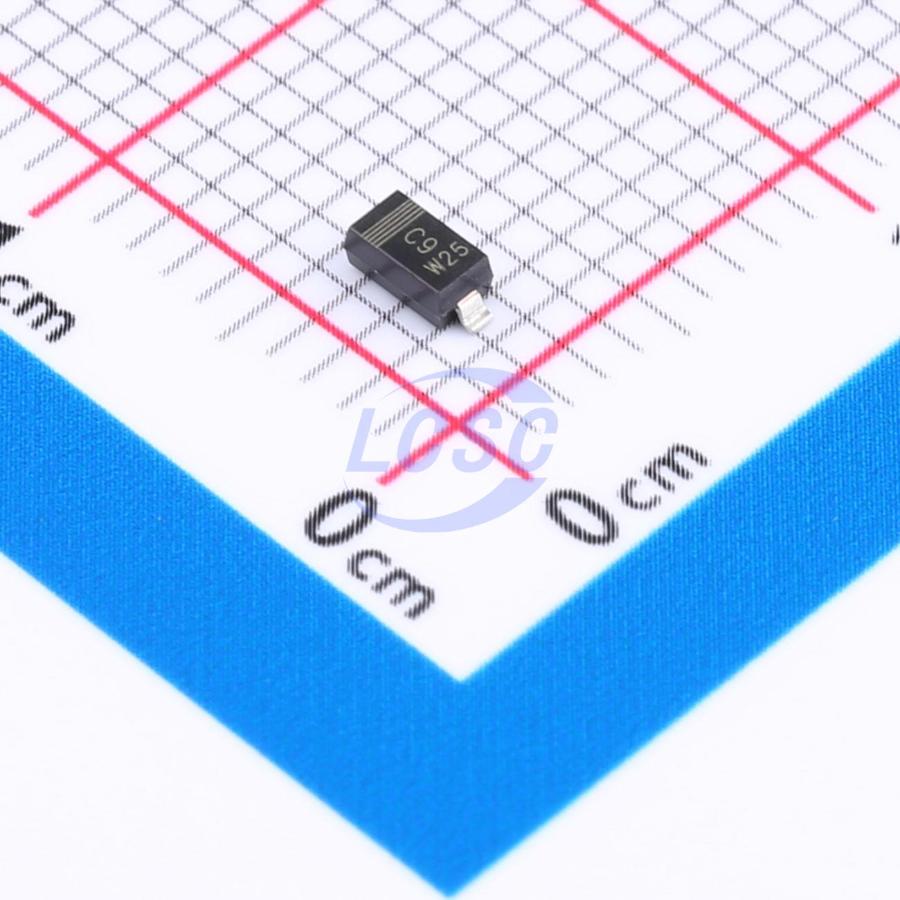

BZT52-C5V1X
Zener Diode 1 Independent 5.1V 350mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 5.1V 350mW SOD-123
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-C5V1X
- Store part #
- C550301
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,020 in stock
#C550301
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.59 | ₹91.80 |
| 200+ | ₹3.55 | ₹710.00 |
| 600+ | ₹2.98 | ₹1,788.00 |
| 3,000+ | ₹2.62 | ₹7,860.00 |
| 9,000+ | ₹2.33 | ₹20,970.00 |
| 21,000+ | ₹2.17 | ₹45,570.00 |
20 × ₹4.59
₹91.80
excl. GST
₹108.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52-C5V1X
₹91.80 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 2uA@2V
- Impedance(Zzt)
- 60Ω
- Zener Voltage(Range)
- 4.8V~5.4V
- Zener Voltage(Nom)
- 5.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.07 g
Overview
General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C5V1#C22438320PAKER · SOD-123 | PAKER | SOD-123 | 1,150 | ₹1.61 · 1,150 in stock | View |
 | BZT52C5V1#C2827905Guangdong Hottech · SOD-123 | Guangdong Hottech | SOD-123 | 4,000 | ₹2.01 · 4,000 in stock | View |
 | BZT52C5V1#C47117495baocheng · SOD-123 | baocheng | SOD-123 | 29,550 | ₹1.57 · 29,550 in stock | View |
 | BZT52-C5V1J#C550300Nexperia · SOD-123 | Nexperia | SOD-123 | 2,840 | ₹3.82 · 2,840 in stock | View |
 | BZT52C5V1#C19077401R+O · SOD-123 | R+O | SOD-123 | 22,26,450 | ₹2.32 · 22,26,450 in stock | View |
