NexperiaDatasheet (PDF)

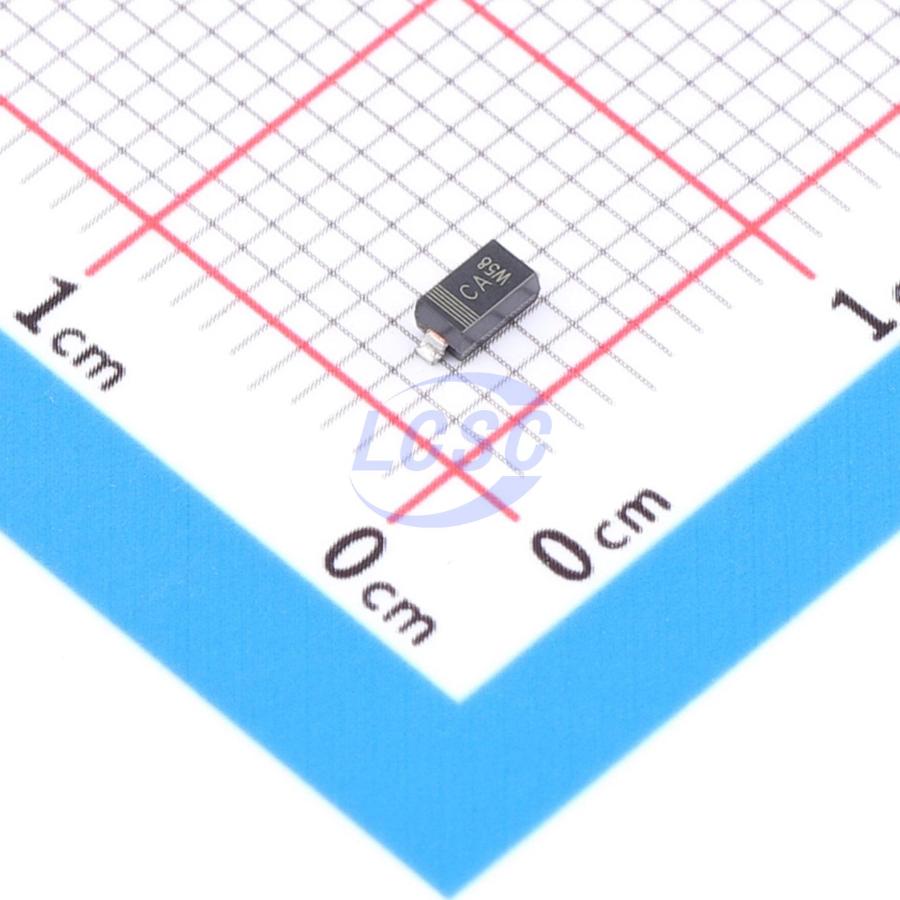

BZT52-C5V6J
1 Independent 5.2V~6V 5.6V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
DIODE ZENER 5.6V 350mW SOD-123
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-C5V6J
- Store part #
- C550302
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
450 in stock
#C550302
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.02 | ₹100.10 |
| 50+ | ₹15.64 | ₹782.00 |
| 150+ | ₹13.76 | ₹2,064.00 |
| 500+ | ₹11.42 | ₹5,710.00 |
| 2,500+ | ₹10.37 | ₹25,925.00 |
| 5,000+ | ₹9.74 | ₹48,700.00 |
5 × ₹20.02
₹100.10
excl. GST
₹118.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52-C5V6J
₹100.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 1uA@2V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 5.2V~6V
- Zener Voltage(Nom)
- 5.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C5V6#C2827906Guangdong Hottech · SOD-123 | Guangdong Hottech | SOD-123 | 250 | ₹2.22 · 250 in stock | View |
 | BZT52C5V6#C47117496baocheng · SOD-123 | baocheng | SOD-123 | 7,800 | ₹1.63 · 7,800 in stock | View |
 | BZT52C5V6#C19077402R+O · SOD-123 | R+O | SOD-123 | 29,43,200 | ₹2.28 · 29,43,200 in stock | View |
 | BZT52C5V6#C54930253HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 3,000 | ₹1.43 · 3,000 in stock | View |
 | MMSZ4690T1G-TP#C46472968TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 1,550 | ₹2.30 · 1,550 in stock | View |
