NexperiaDatasheet (PDF)

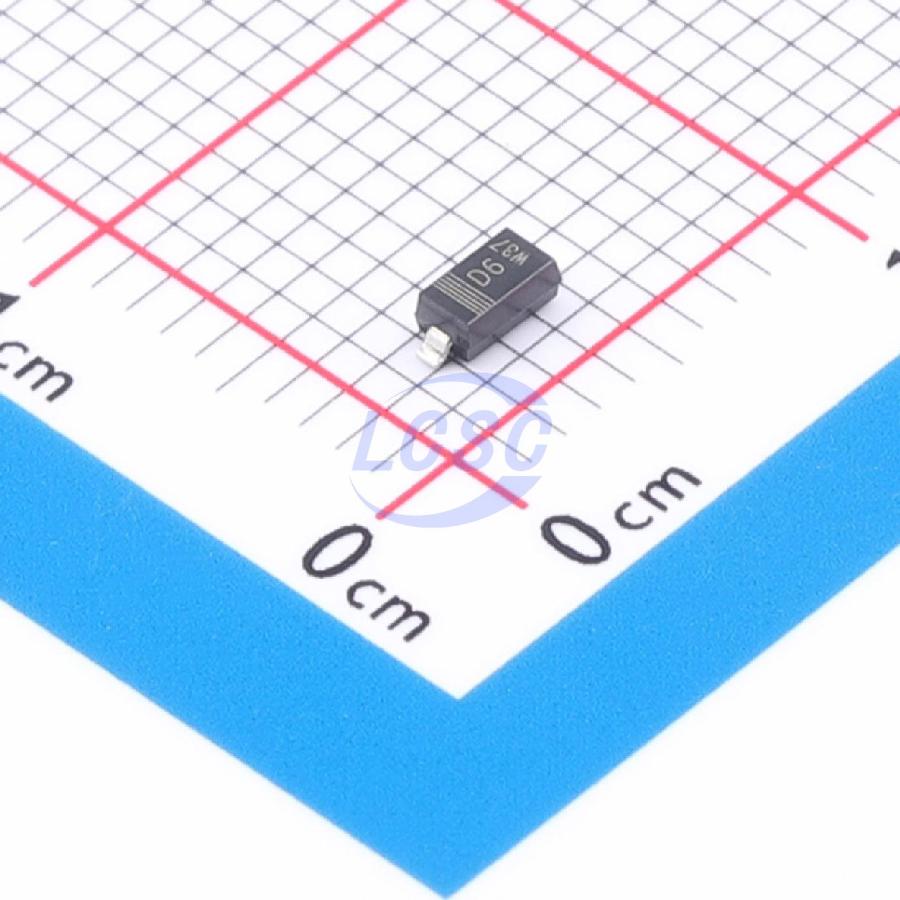

BZT52-C75X
1 Independent 70V~79V 74.5V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
DIODE ZENER 74.5V 350mW SOD-123
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52-C75X
- Store part #
- C550313
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C550313
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.76 | ₹118.80 |
| 50+ | ₹18.91 | ₹945.50 |
| 150+ | ₹16.83 | ₹2,524.50 |
| 500+ | ₹14.24 | ₹7,120.00 |
| 3,000+ | ₹13.07 | ₹39,210.00 |
| 6,000+ | ₹12.38 | ₹74,280.00 |
5 × ₹23.76
₹118.80
excl. GST
₹140.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52-C75X
₹118.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 50nA@52.5V
- Impedance(Zzt)
- 175Ω
- Zener Voltage(Range)
- 70V~79V
- Zener Voltage(Nom)
- 74.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤590 mW
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52-C75J#C550312Nexperia · SOD-123 | Nexperia | SOD-123 | 95 | ₹17.37 · 95 in stock | View |
 | BZT52C75#C22375297R+O · SOD-123 | R+O | SOD-123 | 6,850 | ₹2.49 · 6,850 in stock | View |
 | BZT52H-C75-QX#C7507992Nexperia · SOD-123F | Nexperia | SOD-123F | 3,000 | ₹5.83 · 3,000 in stock | View |
 | MM1W75#C116110Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 3,000 | ₹4.76 · 3,000 in stock | View |
 | MM1W75#C22395541R+O · SOD-123 | R+O | SOD-123 | 1,22,750 | ₹5.42 · 1,22,750 in stock | View |
